[论文翻译]Attention Is All You Need


原文地址:https://arxiv.org/pdf/1706.03762


Attention Is All You Need

Ashish Vaswani∗ Google Brain avaswani@google.com

Noam Shazeer∗ Google Brain noam@google.com

Niki Parmar∗ Google Research nikip@google.com

Jakob Uszkoreit∗ Google Research usz@google.com

Aidan N. Gomez∗ † University of Toronto aidan@cs.toronto.edu

Łukasz Kaiser∗ Google Brain lukasz kaiser@google.com

Illia Polosukhin∗ ‡ illia.polosukhin@gmail.com

Abstract

摘要

The dominant sequence transduction models are based on complex recurrent or convolutional neural networks that include an encoder and a decoder. The best performing models also connect the encoder and decoder through an attention mechanism. We propose a new simple network architecture, the Transformer, based solely on attention mechanisms, dispensing with recurrence and convolutions entirely. Experiments on two machine translation tasks show these models to be superior in quality while being more parallel iz able and requiring significantly less time to train. Our model achieves 28.4 BLEU on the WMT 2014 Englishto-German translation task, improving over the existing best results, including ensembles, by over 2 BLEU. On the WMT 2014 English-to-French translation task, our model establishes a new single-model state-of-the-art BLEU score of 41.8 after training for 3.5 days on eight GPUs, a small fraction of the training costs of the best models from the literature. We show that the Transformer generalizes well to other tasks by applying it successfully to English constituency parsing both with large and limited training data.

主流的序列转换模型基于复杂的循环或卷积神经网络,这些网络包含编码器和解码器。性能最佳的模型还通过注意力机制连接编码器和解码器。我们提出了一种新的简单网络架构——Transformer,完全基于注意力机制,彻底摒弃了循环和卷积结构。在两个机器翻译任务上的实验表明,该模型在质量上更优,同时具备更高的并行化能力,且训练所需时间显著减少。我们的模型在WMT 2014英德翻译任务上取得了28.4 BLEU分,比现有最佳结果(包括集成模型)提高了超过2 BLEU分。在WMT 2014英法翻译任务中,该模型仅用8块GPU训练3.5天就实现了41.8 BLEU分的单模型新标杆,其训练成本仅为文献中最佳模型的一小部分。通过成功应用于英语成分句法分析(无论训练数据量大小),我们证明Transformer能很好地泛化至其他任务。

1 Introduction

1 引言

Recurrent neural networks, long short-term memory [13] and gated recurrent [7] neural networks in particular, have been firmly established as state of the art approaches in sequence modeling and transduction problems such as language modeling and machine translation [35, 2, 5]. Numerous efforts have since continued to push the boundaries of recurrent language models and encoder-decoder architectures [38, 24, 15].

循环神经网络,尤其是长短期记忆网络[13]和门控循环网络[7],已被确立为序列建模和转换问题(如语言建模和机器翻译[35, 2, 5])的最先进方法。此后,大量研究持续推动循环语言模型和编码器-解码器架构的发展边界[38, 24, 15]。

Recurrent models typically factor computation along the symbol positions of the input and output sequences. Aligning the positions to steps in computation time, they generate a sequence of hidden states $h_ {t}$ , as a function of the previous hidden state $h_ {t-1}$ and the input for position $t$ . This inherently sequential nature precludes parallel iz ation within training examples, which becomes critical at longer sequence lengths, as memory constraints limit batching across examples. Recent work has achieved significant improvements in computational efficiency through factorization tricks [21] and conditional computation [32], while also improving model performance in case of the latter. The fundamental constraint of sequential computation, however, remains.

循环模型通常沿着输入和输出序列的符号位置分解计算。将位置与计算时间步骤对齐后,它们会生成一系列隐藏状态 $h_ {t}$,作为前一个隐藏状态 $h_ {t-1}$ 和位置 $t$ 输入的函数。这种固有的顺序特性阻碍了训练样本内的并行化,这在较长序列长度时变得尤为关键,因为内存限制会制约跨样本的批处理。近期研究通过因子分解技巧 [21] 和条件计算 [32] 显著提升了计算效率,后者还同时提升了模型性能。然而,顺序计算的根本限制依然存在。

Attention mechanisms have become an integral part of compelling sequence modeling and transduction models in various tasks, allowing modeling of dependencies without regard to their distance in the input or output sequences [2, 19]. In all but a few cases [27], however, such attention mechanisms are used in conjunction with a recurrent network.

注意力机制已成为各种任务中引人注目的序列建模和转换模型不可或缺的组成部分,它能够对依赖关系进行建模,而无需考虑这些依赖在输入或输出序列中的距离 [2, 19]。然而,除少数情况外 [27],此类注意力机制通常与循环网络结合使用。

In this work we propose the Transformer, a model architecture eschewing recurrence and instead relying entirely on an attention mechanism to draw global dependencies between input and output. The Transformer allows for significantly more parallel iz ation and can reach a new state of the art in translation quality after being trained for as little as twelve hours on eight P100 GPUs.

在本工作中,我们提出了Transformer模型架构,它摒弃了循环结构,完全依赖注意力机制来捕捉输入与输出之间的全局依赖关系。该架构能实现更高程度的并行化,在8块P100 GPU上仅训练12小时后,即可达到翻译质量的新最优水平。

2 Background

2 背景

The goal of reducing sequential computation also forms the foundation of the Extended Neural GPU [16], ByteNet [18] and ConvS2S [9], all of which use convolutional neural networks as basic building block, computing hidden representations in parallel for all input and output positions. In these models, the number of operations required to relate signals from two arbitrary input or output positions grows in the distance between positions, linearly for ConvS2S and logarithmic ally for ByteNet. This makes it more difficult to learn dependencies between distant positions [12]. In the Transformer this is reduced to a constant number of operations, albeit at the cost of reduced effective resolution due to averaging attention-weighted positions, an effect we counteract with Multi-Head Attention as described in section 3.2.

减少序列计算的目标同样构成了扩展神经GPU [16]、ByteNet [18]和ConvS2S [9]的基础,这些模型都使用卷积神经网络作为基本构建模块,并行计算所有输入和输出位置的隐藏表示。在这些模型中,关联两个任意输入或输出位置信号所需的操作次数随位置间距离增长,ConvS2S呈线性增长,ByteNet呈对数增长。这使得学习远距离位置间的依赖关系变得更加困难[12]。在Transformer中,这一操作次数被减少为常数,尽管由于对注意力加权位置进行平均会降低有效分辨率,我们通过3.2节描述的多头注意力(Multi-Head Attention)机制来抵消这种影响。

Self-attention, sometimes called intra-attention is an attention mechanism relating different positions of a single sequence in order to compute a representation of the sequence. Self-attention has been used successfully in a variety of tasks including reading comprehension, abstract ive sum mari z ation, textual entailment and learning task-independent sentence representations [4, 27, 28, 22].

自注意力 (self-attention) ,有时也称为内部注意力 (intra-attention) ,是一种通过关联单个序列中不同位置来计算序列表示的注意力机制。自注意力已成功应用于阅读理解、抽象摘要、文本蕴含和学习任务无关的句子表示等多种任务 [4, 27, 28, 22]。

End-to-end memory networks are based on a recurrent attention mechanism instead of sequencealigned recurrence and have been shown to perform well on simple-language question answering and language modeling tasks [34].

端到端记忆网络基于循环注意力机制而非序列对齐循环,已被证明在简单语言问答和语言建模任务中表现良好 [34]。

To the best of our knowledge, however, the Transformer is the first transduction model relying entirely on self-attention to compute representations of its input and output without using sequencealigned RNNs or convolution. In the following sections, we will describe the Transformer, motivate self-attention and discuss its advantages over models such as [17, 18] and [9].

然而,据我们所知,Transformer 是首个完全依赖自注意力 (self-attention) 机制来计算输入输出表征、且无需使用序列对齐 RNN 或卷积的转换模型。后续章节将阐述 Transformer 架构,解析自注意力的设计动机,并探讨其相对于 [17, 18] 和 [9] 等模型的优势。

3 Model Architecture

3 模型架构

Most competitive neural sequence transduction models have an encoder-decoder structure [5, 2, 35]. Here, the encoder maps an input sequence of symbol representations $(x_ {1},...,x_ {n})$ to a sequence of continuous representations $\mathbf{z}=~(z_ {1},...,z_ {n})$ . Given $\mathbf{z}$ , the decoder then generates an output sequence $\left(y_ {1},...,y_ {m}\right)$ of symbols one element at a time. At each step the model is auto-regressive [10], consuming the previously generated symbols as additional input when generating the next.

最具竞争力的神经序列转换模型都采用编码器-解码器结构 [5, 2, 35]。其中,编码器将符号表示的输入序列 $(x_ {1},...,x_ {n})$ 映射为连续表示序列 $\mathbf{z}=~(z_ {1},...,z_ {n})$。解码器在给定 $\mathbf{z}$ 后,逐步生成符号输出序列 $\left(y_ {1},...,y_ {m}\right)$,每次生成一个元素。该模型在每个步骤都采用自回归方式 [10],即在生成下一个符号时将先前生成的符号作为额外输入。

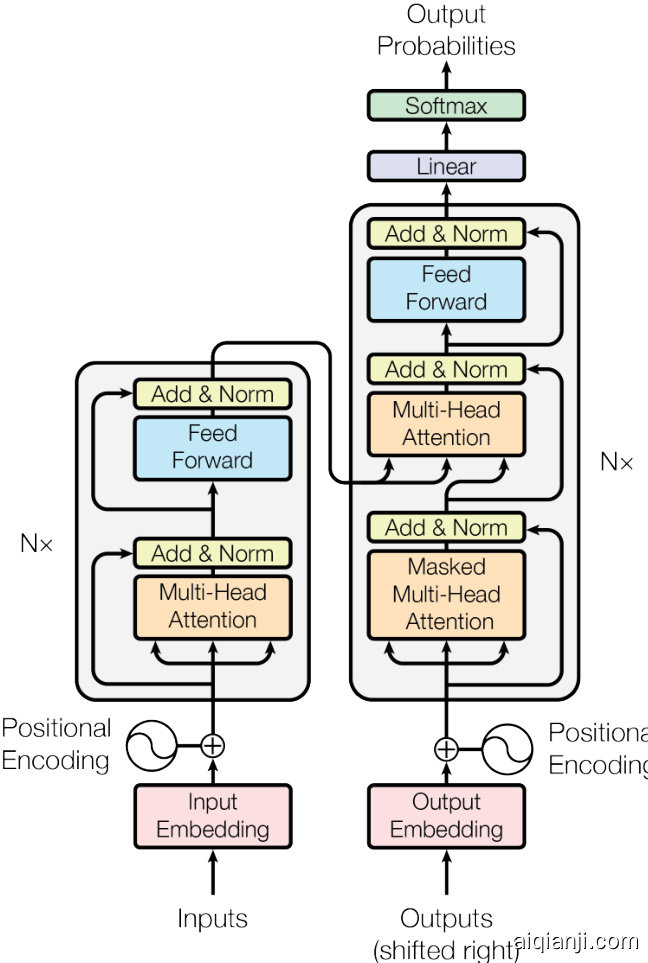

Figure 1: The Transformer - model architecture.

图 1: Transformer模型架构。

The Transformer follows this overall architecture using stacked self-attention and point-wise, fully connected layers for both the encoder and decoder, shown in the left and right halves of Figure 1, respectively.

Transformer 遵循这一整体架构,在编码器和解码器中均使用堆叠的自注意力 (self-attention) 和逐点全连接层,分别如图 1 左右两部分所示。

3.1 Encoder and Decoder Stacks

3.1 编码器与解码器堆栈

Encoder: The encoder is composed of a stack of $N=6$ identical layers. Each layer has two sub-layers. The first is a multi-head self-attention mechanism, and the second is a simple, positionwise fully connected feed-forward network. We employ a residual connection [11] around each of the two sub-layers, followed by layer normalization [1]. That is, the output of each sub-layer is LayerNorm $(x+{\mathrm{Sublayer}}(x))$ , where Sublayer $(x)$ is the function implemented by the sub-layer itself. To facilitate these residual connections, all sub-layers in the model, as well as the embedding layers, produce outputs of dimension $d_ {\mathrm{model}}=512$ .

编码器:编码器由 $N=6$ 个相同层堆叠而成。每层包含两个子层:第一层是多头自注意力机制,第二层是简单的位置全连接前馈网络。我们在每个子层周围采用残差连接 [11],后接层归一化 [1]。即每个子层的输出为 LayerNorm $(x+{\mathrm{Sublayer}}(x))$,其中 Sublayer $(x)$ 是该子层自身实现的函数。为支持这些残差连接,模型中所有子层及嵌入层的输出维度均为 $d_ {\mathrm{model}}=512$。

Decoder: The decoder is also composed of a stack of $N=6$ identical layers. In addition to the two sub-layers in each encoder layer, the decoder inserts a third sub-layer, which performs multi-head attention over the output of the encoder stack. Similar to the encoder, we employ residual connections around each of the sub-layers, followed by layer normalization. We also modify the self-attention sub-layer in the decoder stack to prevent positions from attending to subsequent positions. This masking, combined with fact that the output embeddings are offset by one position, ensures that the predictions for position $i$ can depend only on the known outputs at positions less than $i$ .

解码器:解码器同样由 $N=6$ 个相同层堆叠而成。除包含编码器层中的两个子层外,解码器还插入了第三个子层,该子层对编码器堆栈的输出执行多头注意力 (multi-head attention) 机制。与编码器类似,我们在每个子层周围采用残差连接 (residual connections) 并进行层归一化 (layer normalization)。同时修改了解码器堆栈中的自注意力 (self-attention) 子层,以防止当前位置关注到后续位置。这种掩码机制与输出嵌入 (output embeddings) 向右偏移一位的特性相结合,确保对位置 $i$ 的预测仅能依赖于小于 $i$ 的已知输出。

3.2 Attention

3.2 Attention

An attention function can be described as mapping a query and a set of key-value pairs to an output, where the query, keys, values, and output are all vectors. The output is computed as a weighted sum

注意力函数可以描述为将查询(query)和一组键值对(key-value pairs)映射到输出(output)的过程,其中查询、键、值和输出都是向量。输出是通过加权求和计算得到的

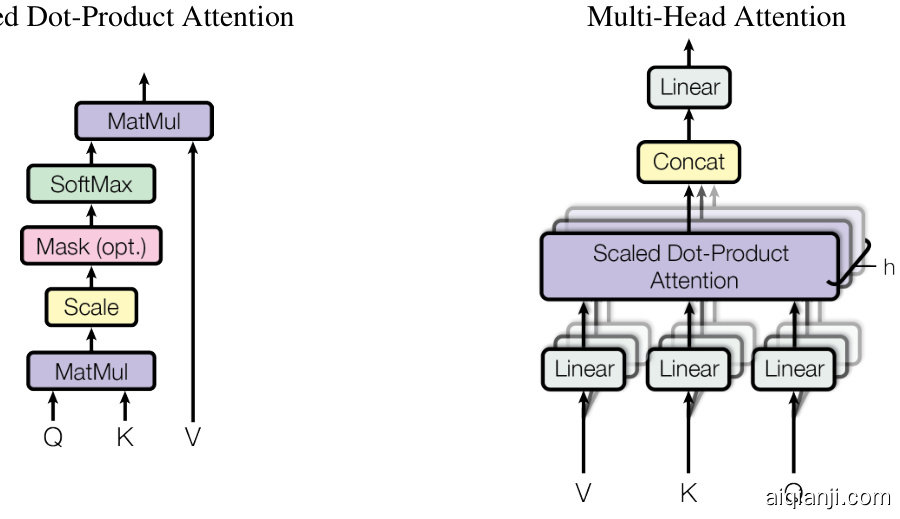

Figure 2: (left) Scaled Dot-Product Attention. (right) Multi-Head Attention consists of several attention layers running in parallel.

图 2: (左) 缩放点积注意力 (Scaled Dot-Product Attention)。(右) 多头注意力 (Multi-Head Attention) 由多个并行运行的注意力层组成。

of the values, where the weight assigned to each value is computed by a compatibility function of the query with the corresponding key.

其中每个值的权重由查询与对应键的兼容性函数计算得出。

3.2.1 Scaled Dot-Product Attention

3.2.1 缩放点积注意力 (Scaled Dot-Product Attention)

We call our particular attention "Scaled Dot-Product Attention" (Figure 2). The input consists of queries and keys of dimension $d_ {k}$ , and values of dimension $d_ {v}$ . We compute the dot products of the query with all keys, divide each by $\sqrt{d_ {k}}$ , and apply a softmax function to obtain the weights on the values.

我们特别关注"缩放点积注意力 (Scaled Dot-Product Attention)" (图 2)。输入由维度为$d_ {k}$的查询(query)和键(key),以及维度为$d_ {v}$的值(value)组成。我们计算查询与所有键的点积,将每个点积除以$\sqrt{d_ {k}}$,然后应用softmax函数得到值的权重。

In practice, we compute the attention function on a set of queries simultaneously, packed together into a matrix $Q$ . The keys and values are also packed together into matrices $K$ and $V$ . We compute the matrix of outputs as:

实践中,我们会同时计算一组查询(query)的注意力函数,将它们打包成矩阵$Q$。键(key)和值(value)同样会被打包成矩阵$K$和$V$。输出矩阵的计算公式为:

$$
{\mathrm{Attention}}(Q,K,V)=\operatorname{softmax}({\frac{Q K^{T}}{\sqrt{d_ {k}}}})V
$$

$$
{\mathrm{Attention}}(Q,K,V)=\operatorname{softmax}({\frac{Q K^{T}}{\sqrt{d_ {k}}}})V
$$

The two most commonly used attention functions are additive attention [2], and dot-product (multiplicative) attention. Dot-product attention is identical to our algorithm, except for the scaling factor of $\frac{1}{\sqrt{d_ {k}}}$ . Additive attention computes the compatibility function using a feed-forward network with a single hidden layer. While the two are similar in theoretical complexity, dot-product attention is much faster and more space-efficient in practice, since it can be implemented using highly optimized matrix multiplication code.

最常用的两种注意力函数是加性注意力 (additive attention) [2] 和点积 (乘性) 注意力 (dot-product attention)。点积注意力与我们的算法相同,除了缩放因子 $\frac{1}{\sqrt{d_ {k}}}$。加性注意力使用具有单个隐藏层的前馈网络计算兼容性函数。尽管两者在理论复杂度上相似,但点积注意力在实践中速度更快且更节省空间,因为它可以使用高度优化的矩阵乘法代码实现。

While for small values of $d_ {k}$ the two mechanisms perform similarly, additive attention outperforms dot product attention without scaling for larger values of $d_ {k}$ [3]. We suspect that for large values of $d_ {k}$ , the dot products grow large in magnitude, pushing the softmax function into regions where it has extremely small gradients 4. To counteract this effect, we scale the dot products by √1d .

当 $d_ {k}$ 取值较小时,两种机制表现相近;但在 $d_ {k}$ 较大时,加性注意力 (additive attention) 的表现优于未缩放的点积注意力 (dot product attention) [3]。我们推测,当 $d_ {k}$ 较大时,点积结果的幅值会显著增大,将 softmax 函数推向梯度极小的区域。为抵消这种效应,我们将点积结果缩放为原来的 $\frac{1}{\sqrt{d}}$ 倍。

3.2.2 Multi-Head Attention

3.2.2 多头注意力机制 (Multi-Head Attention)

Instead of performing a single attention function with $d_ {\mathrm{model}}$ -dimensional keys, values and queries, we found it beneficial to linearly project the queries, keys and values $h$ times with different, learned linear projections to $d_ {k}$ , $d_ {k}$ and $d_ {v}$ dimensions, respectively. On each of these projected versions of queries, keys and values we then perform the attention function in parallel, yielding $d_ {v}$ -dimensional output values. These are concatenated and once again projected, resulting in the final values, as depicted in Figure 2.

我们并没有使用单一的注意力函数来处理 $d_ {\mathrm{model}}$ 维度的键、值和查询,而是发现将查询、键和值分别通过不同的可学习线性投影线性变换 $h$ 次,分别投影到 $d_ {k}$、$d_ {k}$ 和 $d_ {v}$ 维度更为有效。然后,我们对这些投影后的查询、键和值并行执行注意力函数,生成 $d_ {v}$ 维度的输出值。这些输出值被拼接起来并再次投影,最终得到结果值,如图 2 所示。

Multi-head attention allows the model to jointly attend to information from different representation subspaces at different positions. With a single attention head, averaging inhibits this.

多头注意力机制使模型能够同时关注来自不同位置的不同表示子空间信息。而单一注意力头会因平均化抑制这一特性。

$$
\begin{array}{r l}&{\mathrm{MultiHead}(Q,K,V)=\mathrm{Concat}(\mathrm{head}_ {1},...,\mathrm{head}_ {\mathrm{h}})W^{O}}\ &{\quad\quad\quad\quad\mathrm{where~head}_ {\mathrm{i}}=\mathrm{Attention}(Q W_ {i}^{Q},K W_ {i}^{K},V W_ {i}^{V})}\end{array}
$$

$$
\begin{array}{r l}&{\mathrm{MultiHead}(Q,K,V)=\mathrm{Concat}(\mathrm{head}_ {1},...,\mathrm{head}_ {\mathrm{h}})W^{O}}\ &{\quad\quad\quad\quad\mathrm{where~head}_ {\mathrm{i}}=\mathrm{Attention}(Q W_ {i}^{Q},K W_ {i}^{K},V W_ {i}^{V})}\end{array}
$$

Where the projections are parameter matrices $W_ {i}^{Q}\in\mathbb{R}^{d_ {\mathrm{model}}\times d_ {k}}$ , W iK ∈ Rdmodel×dk , W iV ∈ Rdmodel×dv and W O Rhdv×dmodel.

其中投影是参数矩阵 $W_ {i}^{Q}\in\mathbb{R}^{d_ {\mathrm{model}}\times d_ {k}}$ , W iK ∈ Rdmodel×dk , W iV ∈ Rdmodel×dv 和 W O Rhdv×dmodel。

In this work we employ $h=8$ parallel attention layers, or heads. For each of these we use $d_ {k}=d_ {v}=d_ {\mathrm{model}}/h\stackrel{.}{=}\dot{6}4$ . Due to the reduced dimension of each head, the total computational cost is similar to that of single-head attention with full dimensionality.

在本工作中,我们采用 $h=8$ 个并行注意力层(即注意力头)。每个头的维度设置为 $d_ {k}=d_ {v}=d_ {\mathrm{model}}/h\stackrel{.}{=}\dot{6}4$ 。由于每个头的维度降低,总计算成本与全维度的单头注意力机制相当。

3.2.3 Applications of Attention in our Model

3.2.3 注意力机制在我们模型中的应用

The Transformer uses multi-head attention in three different ways:

Transformer 通过三种不同方式使用多头注意力机制:

3.3 Position-wise Feed-Forward Networks

3.3 位置级前馈网络

In addition to attention sub-layers, each of the layers in our encoder and decoder contains a fully connected feed-forward network, which is applied to each position separately and identically. This consists of two linear transformations with a ReLU activation in between.

除了注意力子层外,我们的编码器和解码器中的每一层都包含一个全连接前馈网络,该网络分别且相同地应用于每个位置。它由两个线性变换组成,中间通过ReLU激活函数连接。

$$
\mathrm{FFN}(x)=\operatorname*{max}(0,x W_ {1}+b_ {1})W_ {2}+b_ {2}
$$

$$
\mathrm{FFN}(x)=\operatorname*{max}(0,x W_ {1}+b_ {1})W_ {2}+b_ {2}
$$

While the linear transformations are the same across different positions, they use different parameters from layer to layer. Another way of describing this is as two convolutions with kernel size 1. The dimensionality of input and output is $d_ {\mathrm{model}}=512$ , and the inner-layer has dimensionality $d_ {f f}=2048$ .

虽然线性变换在不同位置上是相同的,但它们在不同层之间使用不同的参数。另一种描述方式是将它们视为两个核大小为1的卷积。输入和输出的维度为$d_ {\mathrm{model}}=512$,而内部层的维度为$d_ {f f}=2048$。

3.4 Embeddings and Softmax

3.4 嵌入和Softmax

Similarly to other sequence transduction models, we use learned embeddings to convert the input tokens and output tokens to vectors of dimension $d_ {\mathrm{model}}$ . We also use the usual learned linear transformation and softmax function to convert the decoder output to predicted next-token probabilities. In our model, we share the same weight matrix between the two embedding layers and the pre-softmax linear transformation, similar to [30]. In the embedding layers, we multiply those weights by $\sqrt{d_ {\mathrm{{model}}}}$

与其他序列转导模型类似,我们使用学习到的嵌入(embeddings)将输入token和输出token转换为维度$d_ {\mathrm{model}}$的向量。同样采用常规的可学习线性变换和softmax函数,将解码器输出转换为预测的下一个token概率。在模型中,我们遵循[30]的做法,在两个嵌入层与softmax前的线性变换层之间共享权重矩阵。在嵌入层中,我们将这些权重乘以$\sqrt{d_ {\mathrm{{model}}}}$。

Table 1: Maximum path lengths, per-layer complexity and minimum number of sequential operations for different layer types. $n$ is the sequence length, $d$ is the representation dimension, $k$ is the kernel size of convolutions and $r$ the size of the neighborhood in restricted self-attention.

Layer TypeComplexity per LayerSequential OperationsMaximum Path Length
Self-AttentionO(n2 . d)0(1)0(1)
RecurrentO(n · d2O (nO(n
ConvolutionalO(k·n·d20(1)((u)4601)0
Self-Attention (restricted)O(r · n · d)O(n/r)

表 1: 不同层类型的最大路径长度、每层复杂度和最小顺序操作数。$n$ 是序列长度,$d$ 是表示维度,$k$ 是卷积核大小,$r$ 是受限自注意力中邻域的大小。

层类型 每层复杂度 顺序操作 最大路径长度
自注意力 (Self-Attention) O(n²·d) O(1) O(1)
循环 (Recurrent) O(n·d²) O(n) O(n)
卷积 (Convolutional) O(k·n·d²) O(1) O(logₖ(n))
受限自注意力 (Self-Attention restricted) O(r·n·d) - O(n/r)

3.5 Positional Encoding

3.5 位置编码 (Positional Encoding)

Since our model contains no recurrence and no convolution, in order for the model to make use of the order of the sequence, we must inject some information about the relative or absolute position of the tokens in the sequence. To this end, we add "positional encodings" to the input embeddings at the bottoms of the encoder and decoder stacks. The positional encodings have the same dimension $d_ {\mathrm{model}}$ as the embeddings, so that the two can be summed. There are many choices of positional encodings, learned and fixed [9].

由于我们的模型不包含循环和卷积结构,为了让模型能够利用序列的顺序信息,我们必须注入一些关于token在序列中相对或绝对位置的信息。为此,我们在编码器和解码器堆栈底部的输入嵌入中添加了"位置编码"。位置编码的维度 $d_ {\mathrm{model}}$ 与嵌入维度相同,因此二者可以相加。位置编码有多种选择方案,包括可学习的和固定的[9]。

In this work, we use sine and cosine functions of different frequencies:

在本工作中,我们使用了不同频率的正弦和余弦函数:

$$
\begin{array}{r}{P E_ {(p o s,2i)}=s i n(p o s/10000^{2i/d_ {\mathrm{model}}})}\ {P E_ {(p o s,2i+1)}=c o s(p o s/10000^{2i/d_ {\mathrm{model}}})}\end{array}
$$

$$
\begin{array}{r}{P E_ {(p o s,2i)}=s i n(p o s/10000^{2i/d_ {\mathrm{model}}})}\ {P E_ {(p o s,2i+1)}=c o s(p o s/10000^{2i/d_ {\mathrm{model}}})}\end{array}
$$

where pos is the position and $i$ is the dimension. That is, each dimension of the positional encoding corresponds to a sinusoid. The wavelengths form a geometric progression from $2\pi$ to $10000\cdot2\pi$ . We chose this function because we hypothesized it would allow the model to easily learn to attend by relative positions, since for any fixed offset $k$ , $P E_ {p o s+k}$ can be represented as a linear function of P Epos.

其中 pos 表示位置,$i$ 表示维度。也就是说,位置编码的每个维度都对应一个正弦曲线。波长构成从 $2\pi$ 到 $10000\cdot2\pi$ 的几何级数。我们选择该函数是因为假设模型能通过相对位置轻松学习注意力机制,因为对于任意固定偏移量 $k$,$PE_ {pos+k}$ 都可以表示为 $PE_ {pos}$ 的线性函数。

We also experimented with using learned positional embeddings [9] instead, and found that the two versions produced nearly identical results (see Table 3 row (E)). We chose the sinusoidal version because it may allow the model to extrapolate to sequence lengths longer than the ones encountered during training.

我们还尝试使用了学习到的位置嵌入 [9],发现这两种版本产生的结果几乎相同(见表 3 行 (E))。我们选择了正弦版本,因为它可能使模型能够外推到比训练时遇到的更长的序列长度。

4 Why Self-Attention

4 为什么使用自注意力 (Self-Attention)

In this section we compare various aspects of self-attention layers to the recurrent and convolutional layers commonly used for mapping one variable-length sequence of symbol representations $\left(x_ {1},...,x_ {n}\right)$ to another sequence of equal length $\left(z_ {1},\ldots,z_ {n}\right)$ , with $x_ {i},z_ {i}\in{\bf\dot{R}}^{d}$ , such as a hidden layer in a typical sequence transduction encoder or decoder. Motivating our use of self-attention we consider three desiderata.

在本节中,我们将自注意力层的多个方面与常用于将一个可变长度符号表示序列$\left(x_ {1},...,x_ {n}\right)$映射为另一个等长序列$\left(z_ {1},\ldots,z_ {n}\right)$的循环层和卷积层进行比较,其中$x_ {i},z_ {i}\in{\bf\dot{R}}^{d}$,例如典型序列转换编码器或解码器中的隐藏层。出于使用自注意力的动机,我们考虑了三个需求。

One is the total computational complexity per layer. Another is the amount of computation that can be parallel i zed, as measured by the minimum number of sequential operations required.

一个是每层的总计算复杂度。另一个是可以并行化的计算量,以所需的最小顺序操作数来衡量。

The third is the path length between long-range dependencies in the network. Learning long-range dependencies is a key challenge in many sequence transduction tasks. One key factor affecting the ability to learn such dependencies is the length of the paths forward and backward signals have to traverse in the network. The shorter these paths between any combination of positions in the input and output sequences, the easier it is to learn long-range dependencies [12]. Hence we also compare the maximum path length between any two input and output positions in networks composed of the different layer types.

第三是网络中长距离依赖之间的路径长度。学习长距离依赖是许多序列转导任务中的关键挑战。影响这种依赖学习能力的一个关键因素是前向和反向信号在网络中必须穿越的路径长度。输入和输出序列中任意位置组合之间的路径越短,学习长距离依赖就越容易 [12]。因此,我们还比较了由不同层类型组成的网络中任意两个输入和输出位置之间的最大路径长度。

As noted in Table 1, a self-attention layer connects all positions with a constant number of sequentially executed operations, whereas a recurrent layer requires $O(n)$ sequential operations. In terms of computational complexity, self-attention layers are faster than recurrent layers when the sequence length $n$ is smaller than the representation dimensionality $d$ , which is most often the case with sentence representations used by state-of-the-art models in machine translations, such as word-piece [38] and byte-pair [31] representations. To improve computational performance for tasks involving very long sequences, self-attention could be restricted to considering only a neighborhood of size $r$ in the input sequence centered around the respective output position. This would increase the maximum path length to $O(n/r)$ . We plan to investigate this approach further in future work.

如表 1 所示,自注意力层 (self-attention) 以恒定次数的顺序执行操作连接所有位置,而循环层需要 $O(n)$ 次顺序操作。在计算复杂度方面,当序列长度 $n$ 小于表示维度 $d$ 时,自注意力层比循环层更快,这种情况常见于机器翻译中最先进模型使用的句子表示,例如 word-piece [38] 和 byte-pair [31] 表示。为了提高涉及超长序列任务的计算性能,可以将自注意力限制为仅考虑输入序列中以相应输出位置为中心、大小为 $r$ 的邻域。这将使最大路径长度增加到 $O(n/r)$。我们计划在未来的工作中进一步研究这种方法。

A single convolutional layer with kernel width $k<n$ does not connect all pairs of input and output positions. Doing so requires a stack of $O(n/k)$ convolutional layers in the case of contiguous kernels, or $O(l o g_ {k}(n))$ in the case of dilated convolutions [18], increasing the length of the longest paths between any two positions in the network. Convolutional layers are generally more expensive than recurrent layers, by a factor of $k$ . Separable convolutions [6], however, decrease the complexity considerably, to ${\dot{O(k\cdot n\cdot d+n\cdot d^{2})}}$ . Even with $k=n$ , however, the complexity of a separable convolution is equal to the combination of a self-attention layer and a point-wise feed-forward layer, the approach we take in our model.

单个卷积层若核宽 $k<n$,则无法连接所有输入输出位置对。对于连续核的情况,这需要堆叠 $O(n/k)$ 个卷积层;而对于扩张卷积 [18] 则需 $O(l o g_ {k}(n))$ 层,从而延长了网络中任意两点间的最长路径。卷积层的计算成本通常比循环层高 $k$ 倍。然而可分离卷积 [6] 能显著降低复杂度至 ${\dot{O(k\cdot n\cdot d+n\cdot d^{2})}}$。即使 $k=n$ 时,可分离卷积的复杂度仍等同于自注意力层加逐点前馈层的组合,这也正是我们模型采用的方法。

As side benefit, self-attention could yield more interpret able models. We inspect attention distributions from our models and present and discuss examples in the appendix. Not only do individual attention heads clearly learn to perform different tasks, many appear to exhibit behavior related to the syntactic and semantic structure of the sentences.

作为额外优势,自注意力机制能产生更具可解释性的模型。我们在附录中检查了模型的注意力分布并展示讨论了相关示例。单个注意力头不仅能清晰学会执行不同任务,许多还表现出与句子句法和语义结构相关的行为。

5 Training

5 训练

This section describes the training regime for our models.

本节介绍我们模型的训练机制。

5.1 Training Data and Batching

5.1 训练数据与批处理

We trained on the standard WMT 2014 English-German dataset consisting of about 4.5 million sentence pairs. Sentences were encoded using byte-pair encoding [3], which has a shared sourcetarget vocabulary of about 37000 tokens. For English-French, we used the significantly larger WMT 2014 English-French dataset consisting of 36M sentences and split tokens into a 32000 word-piece vocabulary [38]. Sentence pairs were batched together by approximate sequence length. Each training batch contained a set of sentence pairs containing approximately 25000 source tokens and 25000 target tokens.

我们在标准的WMT 2014英德数据集上进行了训练,该数据集包含约450万句对。句子使用字节对编码[3]进行编码,共享的源-目标词汇表约含37000个token。对于英法翻译,我们使用了规模更大的WMT 2014英法数据集,包含3600万句对,并将token划分为32000个词片段的词汇表[38]。句对按近似序列长度进行批次组合,每个训练批次包含约25000个源token和25000个目标token的句对集合。

5.2 Hardware and Schedule

5.2 硬件与进度

We trained our models on one machine with 8 NVIDIA P100 GPUs. For our base models using the hyper parameters described throughout the paper, each training step took about 0.4 seconds. We trained the base models for a total of 100,000 steps or 12 hours. For our big models,(described on the bottom line of table 3), step time was 1.0 seconds. The big models were trained for 300,000 steps (3.5 days).

我们在配备8块NVIDIA P100显卡的单台机器上训练模型。对于采用本文所述超参数的基础模型,每个训练步骤耗时约0.4秒。基础模型共训练10万步(12小时)。大型模型(见表3末行参数配置)单步训练时间为1.0秒,总训练步数达30万步(3.5天)。

5.3 Optimizer

5.3 优化器

We used the Adam optimizer [20] with $\beta_ {1}=0.9$ , $\beta_ {2}=0.98$ and $\epsilon=10^{-9}$ . We varied the learning rate over the course of training, according to the formula:

我们使用了Adam优化器 [20],其中 $\beta_ {1}=0.9$、$\beta_ {2}=0.98$ 和 $\epsilon=10^{-9}$。根据以下公式在训练过程中动态调整学习率:

$$
l r a t e=d_ {\mathrm{model}}^{-0.5}\cdot\operatorname*{min}(s t e p_ {-}n u m^{-0.5},s t e p_ {-}n u m\cdot w a r m u p_ {-}s t e p s^{-1.5})
$$

$$
l r a t e=d_ {\mathrm{model}}^{-0.5}\cdot\operatorname*{min}(s t e p_ {-}n u m^{-0.5},s t e p_ {-}n u m\cdot w a r m u p_ {-}s t e p s^{-1.5})
$$

This corresponds to increasing the learning rate linearly for the first warm up steps training steps, and decreasing it thereafter proportionally to the inverse square root of the step number. We used $w a r m u p_ s t e p s=4000$ .

这对应于在前warm up steps训练步骤中线性增加学习率,之后按步骤数的平方根倒数比例递减。我们使用了$warmup_ steps=4000$。

5.4 Regular iz ation

5.4 正则化

We employ three types of regular iz ation during training:

我们在训练中采用了三种正则化方法:

Table 2: The Transformer achieves better BLEU scores than previous state-of-the-art models on the English-to-German and English-to-French news test 2014 tests at a fraction of the training cost.

ModelBLEUTraining Cost (FLOPs)
EN-DEEN-FREN-DEEN-FR
ByteNet [18]23.75
Deep-Att+ PosUnk[39]39.21.0 ·1020
GNMT + RL [38]24.639.922.3·10191.4 ·1020
ConvS2S [9]2
