Binary Diffusion Probabilistic Model
二元扩散概率模型
Abstract
摘要
We introduce the Binary Diffusion Probabilistic Model (BDPM), a novel generative model optimized for binary data representations. While denoising diffusion probabilistic models (DDPMs) have demonstrated notable success in tasks like image synthesis and restoration, traditional DDPMs rely on continuous data representations and mean squared error (MSE) loss for training, applying Gaussian noise models that may not be optimal for discrete or binary data structures. BDPM addresses this by decomposing images into bitplanes and employing XOR-based noise transformations, with a denoising model trained using binary cross-entropy loss. This approach enables precise noise control and computationally efficient inference, significantly lowering computational costs and improving model convergence. When evaluated on image restoration tasks such as image super-resolution, inpainting, and blind image restoration, BDPM outperforms stateof-the-art methods on the FFHQ, CelebA, and CelebA-HQ datasets. Notably, BDPM requires fewer inference steps than traditional DDPM models to reach optimal results, showcasing enhanced inference efficiency.
我们提出二进制扩散概率模型 (Binary Diffusion Probabilistic Model, BDPM)，这是一种针对二进制数据表示优化的新型生成模型。尽管去噪扩散概率模型 (denoising diffusion probabilistic models, DDPMs) 在图像合成和修复等任务中取得了显著成功，但传统 DDPM 依赖于连续数据表示和均方误差 (mean squared error, MSE) 损失进行训练，采用的高斯噪声模型可能不适用于离散或二进制数据结构。BDPM 通过将图像分解为位平面并采用基于 XOR 的噪声变换来解决这一问题，同时使用二元交叉熵损失训练去噪模型。这种方法实现了精确的噪声控制和计算高效推理，显著降低了计算成本并提升了模型收敛性。在图像超分辨率、修复和盲图像恢复等任务评估中，BDPM 在 FFHQ、CelebA 和 CelebA-HQ 数据集上超越了现有最优方法。值得注意的是，BDPM 达到最佳效果所需的推理步骤比传统 DDPM 模型更少，展现了更高的推理效率。
1. Introduction
1. 引言
Generative models have become integral to advancements in modern machine learning, offering state-of-the-art solutions across various domains, including image synthesis, cross-modal tasks like text-to-image and text-to-video generation [16, 33]. Denoising diffusion probabilistic models (DDPMs) [15, 37] are particularly prominent within this landscape, utilizing iterative noise-based transformations to generate high-quality samples. These models predominantly employ Gaussian-based diffusion, which, while effective for continuous data, is less suited to inherently discrete or binary data representations. Despite diffusion models’ initial development for binary and categorical data [37], their adoption in these areas remains limited, leaving a gap for binary and discrete tasks in fields such as image processing and tabular data generation.
生成式模型已成为现代机器学习进步的核心组成部分，在图像合成、文本到图像(text-to-image)和文本到视频(text-to-video)生成等跨模态任务领域提供了前沿解决方案[16, 33]。其中去噪扩散概率模型(DDPMs)[15, 37]尤为突出，它通过基于噪声的迭代变换来生成高质量样本。这类模型主要采用基于高斯分布的扩散过程，虽然对连续数据有效，但本质上不适合处理离散或二进制数据表示。尽管扩散模型最初是为二进制和分类数据开发的[37]，其在这些领域的应用仍然有限，导致图像处理、表格数据生成等任务中针对二进制和离散数据的解决方案存在空白。
This paper introduces Binary Diffusion Probabilistic Model (BDPM), a novel approach specifically tailored to binary representation of essentially non-binary discrete data, which extends diffusion processes to better capture the charact eris tics of binary structures. Unlike traditional Gaussian DDPMs, that are applied to float representations of images, our BDPM model employs a bit-plane decomposition of images, representing pixel intensities as binary planes to enable a more efficient, interpret able generative process that aligns with the discrete nature of binary data. Additionally, BDPM integrates a binary cross-entropy loss function, offering a binary similarity metric that enhances training stability and model convergence.
本文介绍了一种专为本质上非二进制离散数据的二进制表示而设计的新方法——二进制扩散概率模型 (BDPM) ，该模型通过扩展扩散过程来更好地捕捉二进制结构的特征。与传统应用于浮点图像表示的高斯DDPM不同，我们的BDPM模型采用图像的位平面分解，将像素强度表示为二进制平面，从而实现更高效、可解释的生成过程，与二进制数据的离散特性保持一致。此外，BDPM集成了二进制交叉熵损失函数，提供了一种二进制相似性度量，从而提升了训练稳定性和模型收敛性。
Our contributions are as follows: (i) Novel Diffusion Generative Model: We propose BDPM, a diffusion-based generative model designed for binary data representations, optimized for the unique requirements of binary structures. (ii) State-of-the-Art Performance: BDPM demonstrates superior performance across multiple image restoration tasks, including super-resolution, inpainting, and blind image restoration, achieving competitive or improved results over existing state-of-the-art approaches, including Gaussian DDPM-based methods. (iii) Small Size Model. Our model with only 35.8M parameters, outperforms larger models, that are based often on large text-to-image models or pretrained on large-scale datasets, in terms of speed and performance. (iv) Enhanced Inference Efficiency: Our model attains high-quality results with a reduced number of sampling steps, leading to a more computationally efficient inference process compared to DDPMs.
我们的贡献如下：(i) 新型扩散生成模型：我们提出了BDPM，这是一种专为二进制数据表示设计的基于扩散的生成模型，针对二进制结构的独特需求进行了优化。(ii) 最先进的性能：BDPM在多种图像修复任务中表现出卓越性能，包括超分辨率、修复和盲图像恢复，相比现有最先进方法（包括基于高斯DDPM的方法）取得了具有竞争力或更优的结果。(iii) 小尺寸模型：我们的模型仅包含3580万参数，在速度和性能上优于通常基于大型文生图模型或在大规模数据集上预训练的更大模型。(iv) 提升的推理效率：与DDPM相比，我们的模型以更少的采样步骤获得高质量结果，实现了计算效率更高的推理过程。
By shifting from Gaussian to binary formulations in diffusion models, BDPM establishes a promising foundation for generative tasks where binary data representations are essential or beneficial from the computation and interpretation perspectives.
通过将扩散模型中的高斯分布转换为二元表述，BDPM为生成式任务奠定了重要基础，这类任务在计算和解释层面需要或受益于二元数据表征。
2. Related work
2. 相关工作
Traditional DDPMs. Denoising Diffusion Probabilistic Models (DDPMs) [15, 37] have become the go-to solutions in generative modeling in the last years. These models define a forward diffusion process that progressively adds scaled Gaussian noise $\epsilon\sim\mathcal{N}(\mathbf{0},\mathbf{I})$ to data, transforming initially complex data distributions into a standard Gaussian distribution over multiple time steps. Specifically, the forward process is formulated as:
传统DDPM。去噪扩散概率模型 (Denoising Diffusion Probabilistic Models, DDPMs) [15, 37] 已成为近年来生成建模的首选方案。这类模型定义了一个前向扩散过程，通过逐步添加缩放高斯噪声 $\epsilon\sim\mathcal{N}(\mathbf{0},\mathbf{I})$ 将初始复杂的数据分布转化为多时间步后的标准高斯分布。具体而言，前向过程可表述为：
$$
q(\mathbf{x}{t}|\mathbf{x}{t-1})=\mathcal{N}\left(\mathbf{x}{t};\sqrt{1-\beta_{t}}\mathbf{x}{t-1},\beta_{t}\mathbf{I}\right),
$$
where $\mathbf{x}{t}$ and $\mathbf{x}{t-1}$ are the noisy data samples at time steps $t$ and $t-1$ , respectively. $\beta_{t}$ is the variance schedule controlling the noise level at each time step $t$ . Practically, $\mathbf{x}{t}$ is computed as a mapping $\mathbf{x}{t}=\sqrt{\bar{\alpha}{t}}\mathbf{x}{0}+\sqrt{1-\bar{\alpha}{t}}\epsilon$ , where $\mathbf{x}{0}$ is the original data sample. $\begin{array}{r}{\bar{\alpha}{t}=\prod_{s=1}^{t}(1-\beta_{s})}\end{array}$ is the cumulative product of $\left(1-\beta_{s}\right)$ up t o time $t$ , representing the overall scaling factor due to noise addition. $\alpha_{t}=1-\beta_{t}$ is used for notational convenience.
其中 $\mathbf{x}{t}$ 和 $\mathbf{x}{t-1}$ 分别是时间步 $t$ 和 $t-1$ 的含噪数据样本。$\beta_{t}$ 是控制每个时间步 $t$ 噪声水平的方差调度参数。实际计算中，$\mathbf{x}{t}$ 通过映射 $\mathbf{x}{t}=\sqrt{\bar{\alpha}{t}}\mathbf{x}{0}+\sqrt{1-\bar{\alpha}{t}}\epsilon$ 获得，其中 $\mathbf{x}{0}$ 是原始数据样本。$\begin{array}{r}{\bar{\alpha}{t}=\prod_{s=1}^{t}(1-\beta_{s})}\end{array}$ 表示截至时间 $t$ 时 $(1-\beta_{s})$ 的累积乘积，代表噪声叠加导致的整体缩放因子。为记法简便，定义 $\alpha_{t}=1-\beta_{t}$。
The reverse denoising process aims to reconstruct the data by learning the reverse conditional distributions $p_{\theta}(\mathbf{x}{t-1}\vert\mathbf{x}{t})$ . This is achieved by training a neural network to predict the original noise added at each time step by minimizing the mean squared error (MSE) loss:
逆向去噪过程旨在通过学习反向条件分布 $p_{\theta}(\mathbf{x}{t-1}\vert\mathbf{x}_{t})$ 来重建数据。该方法通过训练神经网络预测每个时间步添加的原始噪声，并最小化均方误差 (MSE) 损失实现：
$$
\mathcal{L}{\epsilon}=\mathbb{E}{\mathbf{x}_{0},\epsilon\sim\mathcal{N}(\mathbf{0},\mathbf{I}),t}\left[\left\Vert\epsilon-\hat{\epsilon}\right\Vert^{2}\right],
$$
where $\hat{\pmb{\epsilon}}=\pmb{g}{\theta}(\mathbf{x}{t},t)$ is the noise predicted at timestep $t$ by the denoiser network $_{9\theta}$ , parameterized by $\theta$ .
其中 $\hat{\pmb{\epsilon}}=\pmb{g}{\theta}(\mathbf{x}{t},t)$ 是由去噪网络 $_{9\theta}$ 在时间步 $t$ 预测的噪声，该网络由参数 $\theta$ 参数化。
DDPMs have achieved remarkable success in generating high-fidelity images and have been extended to tasks such as super-resolution, inpainting, restoration, text-to-image generation, text-to-video generation etc. [8, 16, 33, 35].
DDPM在生成高保真度图像方面取得了显著成功，并已扩展到超分辨率、修复、恢复、文本到图像生成、文本到视频生成等任务 [8, 16, 33, 35]。
Image representation. In traditional DDPMs, a discrete image $\mathbf{I}{0}\in\mathcal{T}^{h\times w\times c}$ of size $h\times w\times c$ , where $h$ and $w$ denote the height and width of the image, and $c$ represents the number of color channels, is represented as continuousvalued tensors to use the Gaussian diffusion process effectively. Specifically, each image ${\bf{I}}{0}$ is normalized to $\mathbf{x}{\mathrm{0}}$ so that its pixel intensities lie within a continuous range, typically $[0,1]$ or $[-1,1]$ . This normalization transforms the discrete pixel values into continuous variables, allowing the model to handle the addition of Gaussian noise smoothly during the forward diffusion process. For color images, $\mathbf{x}_{0}\in[0,1]^{h\times w\times c}$ with $c=3$ for 3 color channels.
图像表示。在传统DDPM中，尺寸为$h\times w\times c$的离散图像$\mathbf{I}{0}\in\mathcal{T}^{h\times w\times c}$（其中$h$和$w$表示图像高度和宽度，$c$代表颜色通道数）会被表示为连续值张量以有效利用高斯扩散过程。具体而言，每幅图像${\bf{I}}{0}$被归一化为$\mathbf{x}{\mathrm{0}}$，使其像素强度处于连续范围内（通常为$[0,1]$或$[-1,1]$）。这种归一化将离散像素值转化为连续变量，使得模型在前向扩散过程中能够平滑地处理高斯噪声的添加。对于彩色图像，$\mathbf{x}_{0}\in[0,1]^{h\times w\times c}$且$c=3$（对应3个颜色通道）。
The continuous nature of the data and noise ensures that the loss function (2) provides meaningful gradients for learning. However, this approach assumes that the underlying data distribution is continuous, which is not a case for inherently discrete original data, such as images. When dealing with uint8 images, where pixel values are discrete, representing them as continuous variables can be inefficient. The mismatch between the continuous and the discrete data distribution assumptions highlights the need for alternative diffusion models that can handle discrete data representations more effectively.
数据的连续性和噪声的连续性确保了损失函数(2) 能为学习提供有意义的梯度。然而,这种方法假设基础数据分布是连续的,而对于本质上离散的原始数据(如图像)则不然。在处理像素值为离散值的uint8图像时,将其表示为连续变量可能效率低下。连续数据与离散数据分布假设之间的不匹配凸显了对能更有效处理离散数据表示的替代扩散模型的需求。
Binary and Discrete DDPM. Although diffusion models were initially proposed and formalized for binary and categorical data [37], their application to such discrete data types has been relatively limited compared to their success with continuous data. Sohl-Dickstein et al. [37] formalized binomial diffusion processes for binary data, laying the groundwork for diffusion models in discrete settings.
二元与离散DDPM。尽管扩散模型最初是为二元和分类数据提出并形式化的 [37]，但与在连续数据上的成功相比，其在离散数据类型上的应用相对有限。Sohl-Dickstein等人 [37] 为二元数据建立了二项扩散过程的形式化框架，为离散场景下的扩散模型奠定了基础。
Recent works have sought to extend diffusion models to categorical and discrete data. Hoogeboom et al. [17] introduced Argmax Flows and Multi no mi al Diffusion, providing methods for learning categorical distributions within the diffusion framework. Their approach adapts the diffusion process to handle multi no mi al distributions, making it suitable for modeling discrete data such as text and categorical images. Austin et al. [2] developed Structured Denoising Diffusion Models (SDDMs) in discrete state spaces, applying them to structured data modeling tasks like language modeling and image segmentation. They introduced a discrete diffusion process that respects the structure of the data’s state space, improving performance on tasks involving complex discrete structures.
近期研究致力于将扩散模型拓展至分类和离散数据领域。Hoogeboom等人[17]提出了Argmax Flows和Multinomial Diffusion方法，为扩散框架内学习分类分布提供了技术路径。该方法通过调整扩散过程以处理多项分布，使其适用于文本和分类图像等离散数据建模。Austin等人[2]开发了离散状态空间的结构化去噪扩散模型(SDDMs)，并将其应用于语言建模和图像分割等结构化数据建模任务。他们提出的离散扩散过程能保持数据状态空间的结构特性，从而提升了涉及复杂离散结构的任务性能。
Santos et al. [36] proposed Blackout Diffusion, a generative diffusion model for discrete state spaces that uses a masking process to handle the discrete nature of the data. Their method increment ally masks and reconstructs parts of the data, enabling effective modeling of high-dimensional discrete distributions. Luo et al. [28] presented a method for Discrete Diffusion Modeling by Estimating the Ratios of the Data Distribution, which estimates the data distribution ratios to facilitate diffusion modeling in discrete spaces. This approach allows for more accurate modeling of discrete data without relying on continuous relaxations.
Santos等人[36]提出了Blackout Diffusion，这是一种针对离散状态空间的生成扩散模型，通过掩码过程处理数据的离散特性。该方法逐步掩码并重建数据部分，实现了对高维离散分布的有效建模。Luo等人[28]提出了一种通过估计数据分布比率进行离散扩散建模的方法，该技术通过估算数据分布比率来促进离散空间中的扩散建模。这种方法无需依赖连续松弛技术即可更精确地建模离散数据。
To the best of our knowledge, despite recent advancements, the vast majority of diffusion model research for image restoration tasks remains concentrated on Gaussian DDPMs, which inherently rely on continuous data representations. This focus has left a substantial gap in the exploration of binary DDPMs specifically tailored to binary representations of images. The lack of development in this area underscores a significant opportunity: while Gaussianbased approaches have proven effective for continuous data, their adaptation to binary data is not straightforward and may not fully exploit the unique properties and potential advantages of binary representations. Consequently, binary DDPMs for image restoration remain largely unexplored in current literature, signaling an open and promising direction for further investigation.
据我们所知，尽管近期取得了进展，绝大多数针对图像修复任务的扩散模型研究仍集中于高斯DDPM (Gaussian DDPMs) ，这类模型本质上依赖于连续数据表示。这一焦点导致专门针对二值图像表示的二进制DDPM (binary DDPMs) 探索存在显著空白。该领域的发展不足凸显了一个重要机遇：虽然基于高斯的方法已证明对连续数据有效，但其对二值数据的适配并不直接，且可能无法充分利用二值表示的特有属性与潜在优势。因此，当前文献中针对图像修复的二进制DDPM仍基本处于未开发状态，这标志着未来研究中一个开放且充满前景的方向。
2.1. Limitations of DDPMs
2.1. DDPM的局限性
DDPMs have achieved remarkable success in generating high-fidelity images [8] and have been extended to tasks such as super-resolution, inpainting, restoration, text-toimage generation, etc. [35]. However, their reliance on continuous data representations and Gaussian noise limits their applicability to inherently discrete or binary data, such as for example 8-bit RGB images. Below, we present key arguments for why a binary planes of multi-bit plane representation (MBPR), along with XOR-based noise addition, is a more natural choice for modeling digital images.
DDPM在生成高保真图像方面取得了显著成功[8]，并已扩展到超分辨率、修复、恢复、文本到图像生成等任务[35]。然而，其对连续数据表示和高斯噪声的依赖限制了其在固有离散或二进制数据(如8位RGB图像)上的适用性。下文将阐述为何采用多位平面表示(MBPR)的二进制平面结合基于XOR的噪声添加，是建模数字图像更自然的选择。
Discrete Nature of Digital Images. Digital images in an 8-bit RGB format are inherently discrete, with each color channel value restricted to 256 discrete levels, represented as an 8-bit binary number. This discrete structure naturally aligns with a multi-bit plane image model. By decomposing each pixel into 8 bit-planes (for red, green, and blue channels), each plane can be represented as a binary layer, where each pixel bit is either 0 or 1. Treating these planes as binary data provides a natural and better model than representing them through a continuous pixel distribution.
数字图像的离散特性。8位RGB格式的数字图像本质上是离散的，每个颜色通道值被限制为256个离散级别，用8位二进制数表示。这种离散结构自然符合多位平面图像模型。通过将每个像素分解为8个位平面（针对红、绿、蓝通道），每个平面可表示为二进制层，其中每个像素位非0即1。将这些平面视为二进制数据，相比通过连续像素分布进行表示，能提供更自然且更优的模型。
Incompatibility of Gaussian Noise with Discrete Represent at ions. Gaussian noise, as applied in traditional DDPMs, assumes a continuous data space, suitable for realvalued data but not for binary or discrete values. When Gaussian noise is applied to binary data, intermediate values are generated, which must be quantized or binarized to maintain the binary format, potentially leading to artifacts, information loss and weak convergence. This shows a fundamental mismatch between Gaussian noise and the discrete structure of digital images.
高斯噪声与离散表示的不兼容性。传统DDPM中采用的高斯噪声假设数据空间是连续的，适用于实值数据，但不适用于二进制或离散值。当高斯噪声作用于二进制数据时，会产生中间值，必须进行量化或二值化以保持二进制格式，这可能导致伪影、信息丢失和收敛性弱的问题。这表明高斯噪声与数字图像的离散结构存在根本性不匹配。
Suboptimal it y of MSE Loss in Discrete Space. The original formulation of DDPMs was based on MSE loss for image prediction in the denoising diffusion process. This approach assumes that image pixels are Gaussiandistributed, justifying MSE for measuring prediction discrepancies. However, real images are discrete and not Gaussian, making MSE suboptimal for directly predicting image pixels. Instead, MSE is more suitable for predicting Gaussian-distributed noise [15] rather than the images themselves. Thus, in practice, DDPMs often use MSE to train the denoising network to predict added Gaussian noise, where MSE aligns better with the Gaussian properties of noise distribution. This approach avoids direct prediction of discrete image pixels with MSE, which does not match the original discrete distribution of images.
离散空间中MSE损失的次优性。DDPM的原始公式基于去噪扩散过程中图像预测的MSE损失。该方法假设图像像素服从高斯分布，从而证明使用MSE衡量预测差异是合理的。然而，真实图像是离散且非高斯的，这使得MSE在直接预测图像像素时表现次优。相比之下，MSE更适合预测高斯分布的噪声[15]而非图像本身。因此在实际应用中，DDPM通常使用MSE训练去噪网络来预测添加的高斯噪声，此时MSE更符合噪声分布的高斯特性。这种方法避免了用MSE直接预测离散图像像素——因为MSE与图像原始的离散分布并不匹配。
To address this limitation, we propose a binary representation for discrete images, using a loss function such as diffe rent i able binary cross-entropy. This metric is more suitable for capturing discrete errors in image reconstruction and aligns with the binary nature of bit plane data representation. Additionally, since both noise and images can be represented in binary form, cross-entropy loss provides a unified metric for predicting both noise and images, offering consistency and improved performance. This approach is the focus of our exploration in this paper. Ablation studies on various configurations of loss functions are presented in the Supplementary Materials.
为解决这一局限性，我们提出了一种离散图像的二进制表示方法，采用可微分的二元交叉熵 (differentiable binary cross-entropy) 等损失函数。该指标更适合捕捉图像重建中的离散误差，并与位平面数据表示的二进制特性保持一致。此外，由于噪声和图像均可用二进制形式表示，交叉熵损失为预测噪声和图像提供了统一指标，从而实现一致性并提升性能。这一方法是本文探索的重点。损失函数不同配置的消融研究详见补充材料。
2.2. Motivation for Binary Diffusion Probabilistic Models (BDPM)
2.2. 二元扩散概率模型 (BDPM) 的动机
The proposed BDPM overcomes these limitations by adapting the diffusion process to bit-plane data representation. BDPM applies noise at the bit-plane level using XOR operations, which provide a natural and reversible transformation in binary space. This preserves the binary nature of each bit plane throughout the diffusion process, eliminating the need for complex quantization and ensuring bit-level consistency.
提出的BDPM通过将扩散过程适配到位平面数据表示，克服了这些限制。BDPM利用XOR运算在位平面层级施加噪声，这种操作在二进制空间中提供了天然且可逆的变换。该方法在整个扩散过程中保持了每个位平面的二进制特性，无需复杂量化即可确保比特级一致性。
A binary-based diffusion process has promising applications in tasks that benefit from discrete representations. By preserving the binary structure, BDPM enables loss functions that are better suited to discrete data, ultimately enhancing the model’s performance on binary-specific tasks.
基于二进制的扩散过程在需要离散表示的任务中具有广阔的应用前景。通过保持二进制结构，BDPM能够使用更适合离散数据的损失函数，最终提升模型在二进制特定任务上的性能。
In summary, while Gaussian-based DDPMs excel in image generation, their continuous nature limits their suitability for discrete 8-bit RGB data. BDPM addresses this with binary bit-plane representations and XOR-based noise, providing a solution better suited to digital image structure.
总之，虽然基于高斯分布的DDPM在图像生成方面表现出色，但其连续性本质限制了其对离散8位RGB数据的适用性。BDPM通过二进制位平面表示和基于XOR的噪声解决了这一问题，提供了更契合数字图像结构的解决方案。
3. Proposed method
3. 提出的方法
Our proposed BDPM shift the focus from continuous to bit plane data representation, specifically targeting the unique challenges posed by discrete data. Since most of the images, are represented by 8-bit color pixels, we represent them as a tensor of bit-planes instead of applying normalization and working with 32 or 16 bit float data simplifying the generative task and keeping the initial entropy of data unchanged. This approach allows for a binary similarity metric, such as binary cross-entropy, which is more aligned with the nature of binary data and can more effectively guide the training process.
我们提出的BDPM将焦点从连续数据表示转向位平面数据表示，专门针对离散数据带来的独特挑战。由于大多数图像由8位彩色像素表示，我们将其转换为位平面张量，而非进行归一化处理并使用32位或16位浮点数据。这种方法既简化了生成任务，又保持了数据的初始熵不变。该方案支持采用二进制相似性度量（如二元交叉熵），这种度量更契合二进制数据的本质，能更有效地指导训练过程。
3.1. Transform Domain Data Representation
3.1. 变换域数据表示
To apply the BDPM model to real images, we propose an invertible lossless transformation $\tau$ , shown in the Figure 1, that converts an input image $I{0}Z^{h c}$ into a binary representation $x{0}{0,1}^{h w c n}$ , where $n$ represents the number of binary channels, i.e., $x{0}=T(I{0})$ . The inverse transformation $^{-1}$ converts the binary representations back into their original form, i.e., $I{0}=T^{-1}(x_{0})$ .
为了将BDPM模型应用于真实图像，我们提出了一种可逆无损变换 $\tau$ （如图1所示），该变换将输入图像 $I{0}~Z^{h w c}$ 转换为二进制表示 $x{0}{0,1}^{h w c n}$ ，其中 $n$ 表示二进制通道数，即 $x{0}=T(I{0})$ 。逆变换 $^{-1}$ 将二进制表示转换回原始形式，即 $I{0}=T^{-1}(x_{0})$ 。
In principle, various transformations can be chosen or may be designed to tolerate slight information loss. An illustrative analogy can be drawn with architectures like VQGAN [9] or dVAE [32], where an initial image is processed through a learnable network followed by a learnable vector quantizer. This setup yields representations capturing tokens that can further represent data in the considered binary forms.
原则上，可以选择或设计各种变换来容忍轻微的信息损失。一个类比性的例子是VQGAN [9]或dVAE [32]等架构，其中初始图像通过可学习网络处理，随后经过可学习向量量化器。这种设置生成的表示能捕获token，进而以所考虑的二进制形式表示数据。
In our work, however, we aim for a simple and tractable data representation, preferably one that is not learnable, to facilitate the use of straightforward operations and a simplified diffusion process. To this end, we employ the MBPR, which decomposes data across $n$ bit planes ${\bf x}_{0}(k)$ with $k=0,\cdots,n-1$ as shown in Figure 1.
然而，在我们的工作中，我们追求一种简单且易于处理的数据表示方式，最好是无需学习的，以便于使用直接的操作和简化的扩散过程。为此，我们采用了MBPR (Multi-Bit Plane Representation) ，它将数据分解为 $n$ 个位平面 ${\bf x}_{0}(k)$ ，其中 $k=0,\cdots,n-1$ ，如图 1 所示。

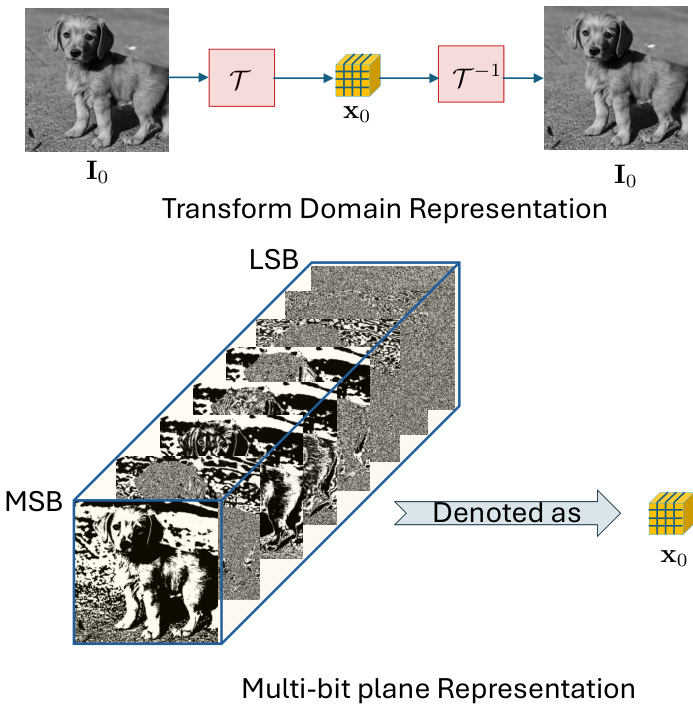

Figure 1. Multi-bit plane representation of images. An image ${\bf{I}}{0}$ is represented by $\mathbf{x}{0}$ through a bijective transform $\tau$ . In this work, $\tau$ decomposes the input image into bitplanes, organized within the tensor $\mathbf{x}{0}$ , where MSB planes capture the most significant bits and LSB planes capture the least significant bits. Notably, these representations are binary, satisfying $\begin{array}{r}{\mathbf I_{0}=\sum_{k=0}^{n-1}\mathbf x_{0}(k)2^{k}}\end{array}$ for a gray-scale image or RGB competent of a c olor image. The MSB planes exhibit high pixel correlation, while the LSB planes display greater independence across pixels.
图 1: 图像的多比特平面表示。图像 ${\bf{I}}{0}$ 通过双射变换 $\tau$ 表示为 $\mathbf{x}{0}$ 。本工作中，$\tau$ 将输入图像分解为比特平面，并组织在张量 $\mathbf{x}{0}$ 中，其中最高有效位(MSB)平面捕获最高有效比特，最低有效位(LSB)平面捕获最低有效比特。值得注意的是，这些表示是二进制的，对于灰度图像或彩色图像的RGB分量满足 $\begin{array}{r}{\mathbf I_{0}=\sum_{k=0}^{n-1}\mathbf x_{0}(k)2^{k}}\end{array}$ 。MSB平面表现出较高的像素相关性，而LSB平面则显示出像素间更强的独立性。
Each bit plane captures unique statistical traits of the original image: the most significant bits (MSB) display stronger pixel correlations, while the least significant bits (LSB) are more independent. This layered structure allows precise noise control in the diffusion process, enhancing denoising and optimizing interpret ability, computational complexity, accuracy, and efficiency. We use this multi-bit plane representation, shown in Figure 1, to streamline and improve the generative model.
每个位平面捕捉原始图像独特的统计特征：最高有效位(MSB)呈现更强的像素相关性，而最低有效位(LSB)则更具独立性。这种分层结构能在扩散过程中实现精确的噪声控制，从而提升去噪效果，并优化可解释性、计算复杂度、准确性和效率。我们采用如图1所示的多位平面表示法来简化和改进生成模型。
3.2. Binary Diffusion Probabilistic Model
3.2. 二元扩散概率模型
BDPM shown in Figure 2 is a novel approach for generative modeling that leverages the simplicity of binary data representations. This method involves adding noise through XOR operation, which makes it particularly well-suited for handling binary data. Below, we describe the key aspects of the BDPM methodology in detail.
图 2 所示的 BDPM 是一种利用二进制数据表示简洁性的新型生成建模方法。该方法通过异或(XOR)运算添加噪声，使其特别适合处理二进制数据。下面我们将详细描述 BDPM 方法的关键方面。
In BDPM noise is added to the data by flipping bits using the XOR operation as defined by the mapper $\mathcal{M}{t}$ at each step $t$ . The amount of noise added is quantified by the proportion of bits flipped. Let $\mathbf{x}{0}(k)\in{0,1}^{h\times w}$ with $k=0,...,n-1$ for each color competent of the color image be the original binary bit-plane of dimension $h\times w$ , and $\mathbf{z}{t}(k)\in{0,1}^{h\times w}$ be a random binary noise plane at time step $t$ . The noisy bit plane ${\bf x}{t}(k)$ at the output of $\mathcal{M}{t}$ is obtained as: ${\bf x}{t}(k)={\bf x}_{0}(k)\oplus{\bf z}_{t}(k)$ , where $\bigoplus$ denotes the XOR operation. The noise level is defined as the fraction of bits flipped in $\mathbf{z}_{t}(k)$ in the mapper $\mathcal{M}_{t}$ at step $t$ , with the number of bits flipped ranging within the probability range $[0,0.5]$ as a function of the timestep and potentially as a function of $k$ .
在BDPM中，噪声通过异或(XOR)运算按映射器$\mathcal{M}{t}$在每个步骤$t$对数据进行比特翻转添加。噪声量通过翻转比特的比例量化。设$\mathbf{x}{0}(k)\in{0,1}^{h\times w}$（其中$k=0,...,n-1$表示彩色图像的每个颜色分量）为原始$h\times w$维二元位平面，$\mathbf{z}{t}(k)\in{0,1}^{h\times w}$为时间步$t$的随机二元噪声平面。映射器$\mathcal{M}{t}$输出的噪声位平面${\bf x}{t}(k)$由${\bf x}{t}(k)={\bf x}_{0}(k)\oplus{\bf z}_{t}(k)$获得，其中$\bigoplus$表示异或运算。噪声水平定义为步骤$t$时映射器$\mathcal{M}_{t}$中$\mathbf{z}_{t}(k)$的比特翻转比例，其翻转比特数作为时间步的函数（可能也是$k$的函数）在概率范围$[0,0.5]$内变化。
The denoising network $g_{\theta}^{B}(\mathbf{x}{t},t,\mathbf{y}{e})$ is trained to predict both the added noise tensor of bit planes $\mathbf{z}{t}$ and the clean tensor of image bit planes $\mathbf{x}{\mathrm{0}}$ from the noisy tensor $\mathbf{x}_{t}$ . We employ binary cross-entropy (BCE) loss for each bit plane to train the denoising network. The loss function is averaged over the batch of $M$ samples:
去噪网络 $g_{\theta}^{B}(\mathbf{x}{t},t,\mathbf{y}{e})$ 被训练用于从含噪张量 $\mathbf{x}{t}$ 中预测位平面添加的噪声张量 $\mathbf{z}{t}$ 和图像位平面的干净张量 $\mathbf{x}_{\mathrm{0}}$。我们采用二元交叉熵 (BCE) 损失函数对每个位平面进行训练，该损失函数在批次大小为 $M$ 的样本上取平均：
$$
\mathcal{L}(\boldsymbol{\theta})=\frac{1}{B}\sum_{m=1}^{M}\left[\mathcal{L}_{x}(\hat{\mathbf{x}}_{0}^{(m)},\mathbf{x}_{0}^{(m)})+\mathcal{L}_{z}(\hat{\mathbf{z}}_{t}^{(m)},\mathbf{z}_{t}^{(m)})\right],
$$
$$
\mathcal{L}(\boldsymbol{\theta})=\frac{1}{B}\sum_{m=1}^{M}\left[\mathcal{L}_{x}(\hat{\mathbf{x}}_{0}^{(m)},\mathbf{x}_{0}^{(m)})+\mathcal{L}_{z}(\hat{\mathbf{z}}_{t}^{(m)},\mathbf{z}_{t}^{(m)})\right],
$$
where $\theta$ represents the parameters of the denoising network, x $\mathbf{x}{0}^{(m)}$ and $\hat{\mathbf{x}}{0}^{(m)}$ are the $m$ -th samples of the true clean tensors and the predicted clean tensors, respectively. Similarly, zt $\mathbf{z}{t}^{(m)}$ and z(m) are the $m$ -th samples of the true added noise tensors and the predicted noise tensors, respectively. $\mathbf{y}{e}=\mathcal{E}{y}(\mathbf{I}{y})$ denotes the encoded conditional image $\mathbf{I}{y}$ that can represent the low-resolution down-sampled image, blurred image or image with removed parts that should be in-painted. The losses $\mathcal{L}{x}$ and $\mathcal{L}{z}$ denote BCE losses computed for each bit plane $k$ and the pixel coordinates $i\in{1,\cdots,h}$ and $j\in{1,\cdots,w}$ withing each bit plane.
其中$\theta$表示去噪网络的参数，$\mathbf{x}{0}^{(m)}$和$\hat{\mathbf{x}}{0}^{(m)}$分别是真实干净张量和预测干净张量的第$m$个样本。类似地，$\mathbf{z}{t}^{(m)}$和$\mathbf{z}^{(m)}$分别是真实添加噪声张量和预测噪声张量的第$m$个样本。$\mathbf{y}{e}=\mathcal{E}{y}(\mathbf{I}{y})$表示编码后的条件图像$\mathbf{I}{y}$，可以代表低分辨率下采样图像、模糊图像或需要修复的局部缺失图像。损失函数$\mathcal{L}{x}$和$\mathcal{L}_{z}$表示针对每个位平面$k$及像素坐标$i\in{1,\cdots,h}$、$j\in{1,\cdots,w}$计算的逐比特交叉熵损失。
In order to balance bit-planes during training of the denoiser network, we apply linear bit-plane weighting, where the weight for MSB is set to 1, weight for LSB is set to 0.1 and for others weights are linearly interpolated between 1 and 0.1. This fine-grained weighting can not be achieved with the MSE loss in a tractable form.
为了在去噪网络训练过程中平衡位平面，我们采用了线性位平面加权方法，其中最高有效位(MSB)的权重设为1，最低有效位(LSB)的权重设为0.1，其余位平面的权重则在1和0.1之间线性插值。这种细粒度加权方式无法通过均方误差(MSE)损失函数以可行形式实现。
The output of the denoiser $g_{\theta}^{B}(\mathbf{x}{t},t,\mathbf{y}_{e})$ is binarized via a mapper $\mathcal{Q}$ prior to applying the inverse transform $\tau^{-1}$ as shown in Figure 2.
去噪器输出 $g_{\theta}^{B}(\mathbf{x}{t},t,\mathbf{y}_{e})$ 在应用逆变换 $\tau^{-1}$ 前会通过映射器 $\mathcal{Q}$ 进行二值化处理，如图 2 所示。
When sampling (Figure 2 right), we start from a random binary tensor $\mathbf{x}{t}$ at timestep $t=T$ , along with the conditioning state $\mathbf{I}{y}$ , encoded into ${\bf y}{e}$ . For each selected timestep in the sequence ${T,\ldots,0}$ , denoising is applied to the tensor. The denoised tensor $\hat{\mathbf{x}}{0}$ and the estimated binary noise $\hat{\mathbf{z}}{t}$ are predicted by the denoising network. These predictions are then processed using a sigmoid function and binarized with a threshold in the mapper $\mathcal{Q}$ . During sampling, we use the denoised tensor $\hat{\mathbf{x}}{0}$ directly. Then, random noise $\mathbf{z}{t}$ is generated and added to $\hat{\mathbf{x}}_{0}$ via the XOR operation:
在采样过程中 (图 2 右)，我们从时间步 $t=T$ 的随机二元张量 $\mathbf{x}{t}$ 开始，同时将条件状态 $\mathbf{I}{y}$ 编码为 ${\bf y}{e}$。对于序列 ${T,\ldots,0}$ 中每个选定的时间步，对张量进行去噪处理。去噪网络预测出去噪后的张量 $\hat{\mathbf{x}}{0}$ 和估计的二元噪声 $\hat{\mathbf{z}}{t}$。这些预测结果通过sigmoid函数处理，并在映射器 $\mathcal{Q}$ 中通过阈值进行二值化。采样时，我们直接使用去噪后的张量 $\hat{\mathbf{x}}{0}$。随后生成随机噪声 $\mathbf{z}{t}$，并通过XOR运算将其添加到 $\hat{\mathbf{x}}_{0}$ 中：
$\mathbf{x}{t}=\hat{\mathbf{x}}{0}\oplus\mathbf{z}_{t}$ . The sampling algorithm is summarized in Algorithm 1.
$\mathbf{x}{t}=\hat{\mathbf{x}}{0}\oplus\mathbf{z}_{t}$。采样算法总结在算法1中。
Algorithm 1 Sampling algorithm.
算法 1: 采样算法
4. Experimental results
4. 实验结果
We evaluate the proposed method on the following tasks: $4\times$ super-resolution task that scales images from $64\times64$ to $256\times256$ pixels using the FFHQ [19] and CelebA [27] datasets, medium size mask inpainting using FFHQ of the size $512\times512$ pixels, CelebA of the size $256\times256$ pix-els, CelebA-HQ [18] of the size $512\times512$ and blind image restoration on CelebA of the size $256\times256$ .
我们在以下任务上评估所提出的方法：使用FFHQ [19]和CelebA [27]数据集进行4倍超分辨率任务（将图像从64×64放大到256×256像素），在FFHQ（512×512像素）、CelebA（256×256像素）和CelebA-HQ [18]（512×512像素）上进行中等尺寸掩码修复，以及在CelebA（256×256像素）上进行盲图像恢复。
In all experiments, we use the same U-Net denoising model with 35.8M parameters, with 4 convolution downsampling blocks, self-attention[40] in the bottom downsampling block, and linear attention[20] in other down sampling blocks.
在所有实验中，我们使用相同的U-Net去噪模型，该模型具有3580万参数，包含4个卷积下采样块：底部下采样块采用自注意力机制[40]，其余下采样块采用线性注意力机制[20]。
4.1. Datasets
4.1. 数据集
We perform experiments on three datasets: CelebA [27], FFHQ [19], and CelebA-HQ[18]. CelebA contains 202,599 celebrity images at a resolution of approximate ll y $178\times218$ pixels, each annotated with 40 facial attributes, we use train split for training and test split for evaluation. FFHQ consists of 70,000 high-quality face images at $1024\times1024$ resolution, offering diverse variations in age, ethnicity, and background. For all experiments, we split FFHQ into $60{,}000\mathrm{im}.$ - ages for training and 10,000 for evaluation. CelebA-HQ is a high-quality version of CelebA, comprising 30,000 images at $1024\times1024$ resolution. For the super-resolution task, we utilize CelebA and FFHQ datasets. The inpainting task employs all three datasets: CelebA, FFHQ, and CelebAHQ. For blind image restoration, our model is pretrained on FFHQ and evaluated on CelebA.
我们在三个数据集上进行实验：CelebA [27]、FFHQ [19] 和 CelebA-HQ [18]。CelebA包含202,599张分辨率约为$178\times218$像素的名人图像，每张标注了40种面部属性，我们使用训练集进行训练，测试集进行评估。FFHQ由70,000张$1024\times1024$分辨率的高质量人脸图像组成，涵盖年龄、种族和背景的多样化变化。所有实验中，我们将FFHQ划分为60,000张训练图像和10,000张评估图像。CelebA-HQ是CelebA的高质量版本，包含30,000张$1024\times1024$分辨率的图像。超分辨率任务使用CelebA和FFHQ数据集，修复任务则使用全部三个数据集：CelebA、FFHQ和CelebA-HQ。对于盲图像恢复任务，我们的模型在FFHQ上预训练，并在CelebA上评估。
Table 1. Comparsion of super-resolution approaches on FFHQ dataset. The best metrics are shown in bold and second best underscored.
表 1: FFHQ数据集上超分辨率方法的对比。最佳指标以粗体显示，次佳指标以下划线标示。
| 方法 | FID | LPIPS | PSNR | SSIM | NFEs |
|---|---|---|---|---|---|
| HiFaceGAN[48] | 5.36 | - | 28.65 | 0.816 | 1 |
| DPS [6] | 39.35 | 0.214 | 25.67 | 0.852 | 1000 |
| DDRM [21] | 62.15 | 0.294 | 25.36 | 0.835 | 1000 |
| DiffPIR [58] | 58.02 | 0.187 | 29.17 | 20 | |
| DiffPIR | 47.8 | 0.174 | 29.52 | 100 | |
| BDPM (ours) | 5.71 | 0.151 | 30.05 | 0.864 | 30 |
4.2. Metrics
4.2. 指标
We evaluate the model performance using Fréchet Inception Distance (FID) [13], Learned Perceptual Image Patch Similarity (LPIPS) [53], Peak Signal-to-Noise Ratio (PSNR), Structural Similarity Index Measure (SSIM) [45], and the number of function evaluations (NFEs), which corresponds to the number of model executions on the studied downstream tasks. Perceptual Image Defect Similarity (P-IDS), Unweighted Image Defect Similarity (U-IDS) [54] are also added to inpaiting evaluation.
我们使用Fréchet起始距离 (FID) [13]、学习感知图像块相似度 (LPIPS) [53]、峰值信噪比 (PSNR)、结构相似性指数 (SSIM) [45] 以及函数评估次数 (NFEs) 来评估模型性能，其中NFEs对应模型在所研究下游任务上的执行次数。此外，感知图像缺陷相似度 (P-IDS) 和无权重图像缺陷相似度 (U-IDS) [54] 也被加入图像修复评估中。
4.3. Super-resolution
4.3. 超分辨率
The super-resolution process downscales the original $256\times$ 256 images by selecting every fourth pixel, then upsamples them back to $256\times256$ using bilinear interpolation. This upsampled image serves as the conditioning $\mathbf{I}_{y}$ (see Figure 2). The images are transformed into bitplanes via $\tau$ and concatenated with the input channels for the denoiser network. For super-resolution, we fix the diffusion steps at 30. Examples of ground truth, low-resolution inputs, and BDPM-upsampled images appear in Figure 3, with more examples and per-pixel variance shown in the Supplementary Materials.
超分辨率处理通过每隔四个像素选取一个的方式将原始$256\times$256图像下采样，随后使用双线性插值将其上采样回$256\times256$。上采样后的图像作为条件$\mathbf{I}_{y}$ (见图2)。图像通过$\tau$转换为位平面，并与去噪网络的输入通道拼接。对于超分辨率任务，我们将扩散步数固定为30。图3展示了真实高分辨率图像、低分辨率输入及BDPM上采样结果的对比示例，更多样本及逐像素方差分析见补充材料。
BDPM model is compared against SOTA GAN-based: HiFaceGAN [48] and diffusion-based methods: DPS [6], DDRM [21], and DiffPIR [58] on FFHQ dataset. On the FFHQ dataset, results are sumarized in Table 1, BDPM achieves superior results in LPIPS, PSNR, and SSIM metrics compared to previous approaches. On CelebA BDPM is compared against SOTA GAN-based models: PULSE [30], diffusion-based models: ILVR [5], DDNM [44], DiffFace [22], ResShift [51], DiT-SR [4] and transformer-based models: VQFR [11], CodeFormer [56], results are sumarized in Table 2, BDPM outperforms other methods in FID, LPIPS, and PSNR metrics.
在FFHQ数据集上，将BDPM模型与基于GAN的SOTA方法HiFaceGAN [48]、基于扩散的方法DPS [6]、DDRM [21]和DiffPIR [58]进行对比。如表1所示，BDPM在LPIPS、PSNR和SSIM指标上均优于先前方法。在CelebA数据集上，BDPM与基于GAN的SOTA模型PULSE [30]、基于扩散的模型ILVR [5]、DDNM [44]、DiffFace [22]、ResShift [51]、DiT-SR [4]以及基于Transformer的模型VQFR [11]、CodeFormer [56]进行对比。如表2所示，BDPM在FID、LPIPS和PSNR指标上均超越其他方法。
4.4. Inpainting
4.4. 图像修复 (Inpainting)
The inpainting problem involves reconstructing missing (masked) regions in images.
修复问题涉及重建图像中的缺失（掩码）区域。
In our approach, we use medium size masks, that mask between 10% and 30% of the total image size. In our approach, the masked image $\mathbf{I}{m}$ is transformed into bitplanes, and the missing pixels are replaced with random binary values ${0,1}$ . The mask is also provided to the denoiser network, and both the masked image and the mask are concatenated along the channel dimension as input to the model, e.g., $\mathbf{I}{y}=[\mathbf{M},\mathbf{I}{m}]$ , where M is inpainting mask and ${\bf{I}}_{m}$ is masked image. For the inpatining task, we fix the number of diffusion steps to 100. Examples of ground truth, masked images and inpainted by BDPM images are shown in Figure 4. More examples of inpainted images are presented in Supplementary material.
在我们的方法中，我们使用中等大小的掩码，掩码范围占图像总大小的10%到30%。该方法将掩码后的图像$\mathbf{I}{m}$转换为位平面，缺失像素用随机二进制值${0,1}$填充。掩码也会提供给去噪网络，掩码图像和掩码沿通道维度拼接后作为模型输入，例如$\mathbf{I}{y}=[\mathbf{M},\mathbf{I}{m}]$，其中M为修复掩码，${\bf{I}}_{m}$为掩码图像。对于修复任务，我们将扩散步数固定为100。真实图像、掩码图像及经BDPM修复的图像示例如图4所示。更多修复图像示例见补充材料。

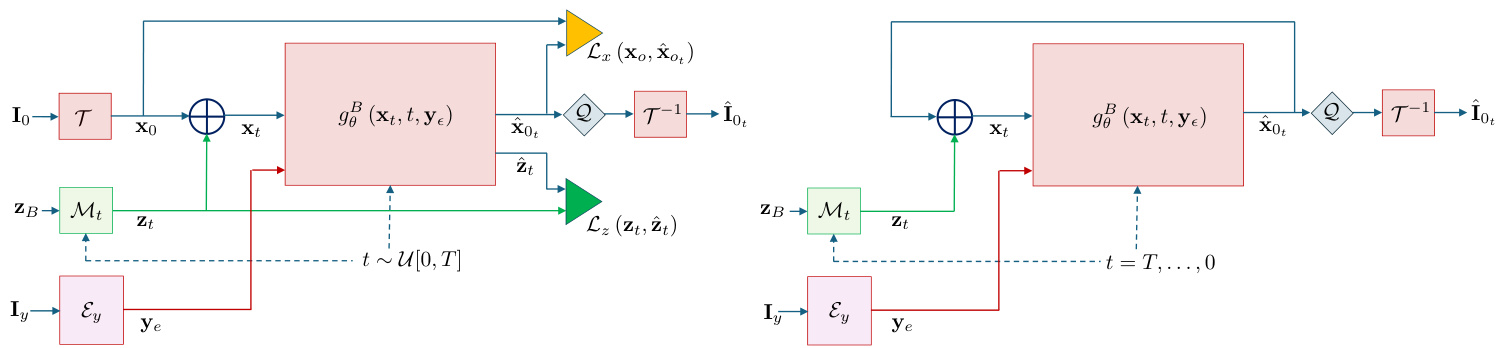

Figure 2. Binary Diffusion training (left) and sampling (right) schemes.
图 2: 二元扩散训练 (左) 和采样 (右) 流程示意图。

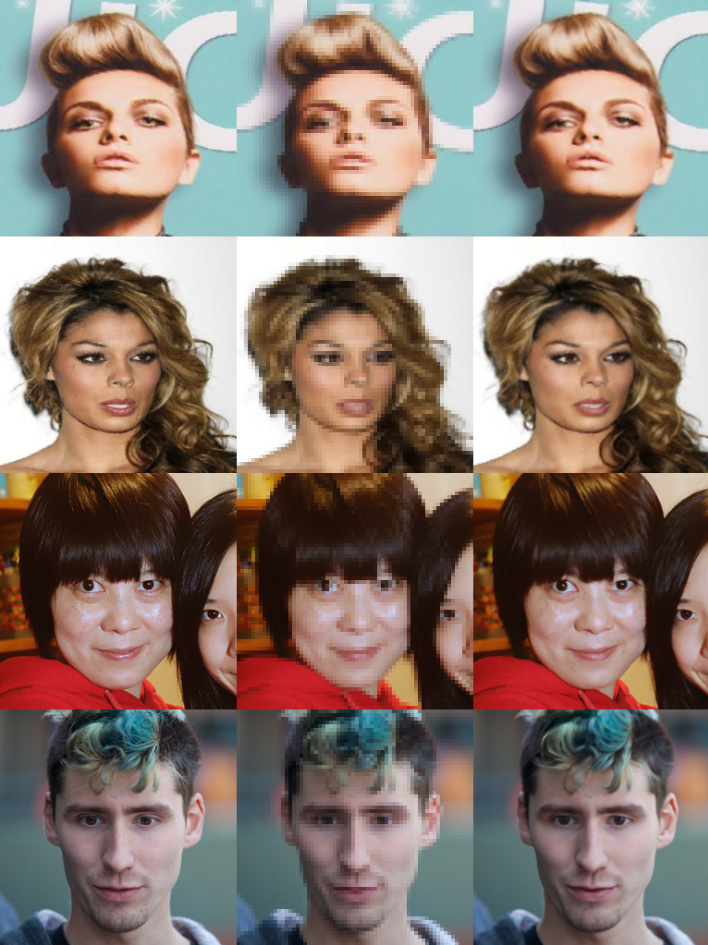

Figure 3. Super-resolution samples. First column: ground truth high-resolution samples, second column: low-resolution 4 times down-sampled samples, third column: samples reconstructed by BDPM model. First and second rows are from CelebA dataset, third and forth rows are from FFHQ dataset.
图 3: 超分辨率样本。第一列：真实高分辨率样本，第二列：4倍降采样的低分辨率样本，第三列：BDPM模型重建的样本。前两行来自CelebA数据集，后两行来自FFHQ数据集。
Table 2. Comparsion of super-resolution approaches CelebA dataset. The best metrics are shown in bold and second best underscored. If the evaluation metric is not available in the paper, or in available public benchmark, it is marked as ‘-‘.
表 2: CelebA数据集超分辨率方法对比。最优指标以粗体显示，次优指标以下划线标注。若论文或公开基准中未提供评估指标，则标记为"-"。
| 方法 | FID | LPIPS | PSNR | SSIM | NFEs |
|---|---|---|---|---|---|
| PULSE [30] | 40.33 | 22.74 | 0.623 | 100 | |
| DDRM [21] | 31.04 | 31.04 | 0.941 | 100 | |
| ILVR [5] | 29.82 | - | 31.59 | 0.943 | 100 |
| VQFR [11] | 25.24 | 0.411 | 1 | 1 | |
| CodeFormer [56] | 26.16 | 0.324 | 1 | ||
| DiffFace [22] | 23.21 | 0.338 | - | 100 | |
| DDNM [44] | 22.27 | - | 31.63 | 0.945 | 100 |
| ResShift [51] | 17.56 | 0.309 | 1 | 4 | |
| DiT-SR [4] | 19.65 | 0.337 | 4 | ||
| BDPM (本方法) | 3.5 | 0.116 | 32.01 | 0.91 | 30 |
We compare BDPM against the state-of-the-art methods: LaMa [39], CoModGAN [54], TFill [55], and SHGAN [47] on FFHQ, results are summarized in Table 3, BDPM outperforms consifered methods on FID, PSNR, SSIM, P-IDS and U-IDS metrics.
我们将BDPM与当前最先进的方法进行比较：LaMa [39]、CoModGAN [54]、TFill [55]和SHGAN [47]在FFHQ上的表现，结果总结在表3中。BDPM在FID、PSNR、SSIM、P-IDS和U-IDS指标上均优于对比方法。
On the CelebA dataset, BDPM is compared against SOTA GAN-based methods: RePaint [29], EdgeConnect [31], DeepFillV2 [49], LaMa [39], diffusion-based methods: DDRM [21], DDNM [44] and transformer-based methods: ICT [41], MAT [25], results are sumarized in Table 4, BDPM achieves superior results on perceptual met- rics such as FID, P-IDS, and U-IDS.
在CelebA数据集上，BDPM与基于GAN的SOTA方法进行了对比：RePaint [29]、EdgeConnect [31]、DeepFillV2 [49]、LaMa [39]；基于扩散的方法：DDRM [21]、DDNM [44]；以及基于Transformer的方法：ICT [41]、MAT [25]。结果总结在表4中，BDPM在FID、P-IDS和U-IDS等感知指标上取得了更优的结果。
For the CelebA-HQ dataset, we use the model pretrained on FFHQ and evaluate it on 10,000 randomly selected images. BDPM is compared against SOTA GANbased methods: Edge Connect [31], DeepFillv2 [49], AOT GAN [52], MADF [57], LaMa [39], CoModGAN [54] and transformer-based methods: ICT [39], MAT [25], results are sumarized in Table 5, BDPM surpasses current SOTA on perceptual metrics FID and LPIPS.
对于CelebA-HQ数据集，我们使用在FFHQ上预训练的模型，并在随机选取的10,000张图像上进行评估。BDPM与基于GAN的SOTA方法（Edge Connect [31]、DeepFillv2 [49]、AOT GAN [52]、MADF [57]、LaMa [39]、CoModGAN [54]）以及基于Transformer的方法（ICT [39]、MAT [25]）进行了对比，结果汇总于表5。BDPM在感知指标FID和LPIPS上超越了当前SOTA水平。

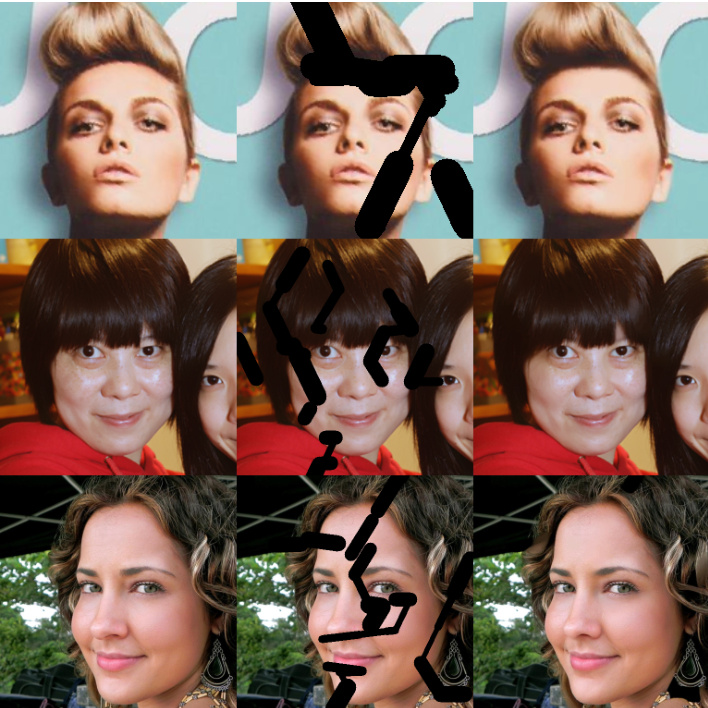

Figure 4. Inpainting samples. First column: ground truth highresolution sample, second row: masked sample, third row: inpainted by BDPM model. First row: CelebA dataset, second row: FFHQ dataset, third row: CelebA dataset.
图 4: 修复样本示例。第一列：真实高分辨率样本，第二列：掩码处理样本，第三列：经BDPM模型修复后的结果。第一行：CelebA数据集，第二行：FFHQ数据集，第三行：CelebA数据集。
Table 3. Comparison of inpainting approaches FFHQ dataset. The best metrics are shown in bold and second best underscored. If the evaluation metric is not available in the paper, or in available public benchmark, it is marked as ‘-‘.
表 3. FFHQ数据集上的修复方法对比。最佳指标以粗体显示，次佳指标以下划线标注。若论文或公开基准中未提供评估指标，则标记为"-"。
| Method | FID | LPIPS | PSNR | SSIM | P-IDS | U-IDS | NFEs |
|---|---|---|---|---|---|---|---|
| LaMa[39] | 19.6 | 0.287 | 18.99 | 0.7178 | - | 1 | |
| CoModGAN[54] | 3.7 | 0.247 | 18.46 | 0.6956 | 16.6 | 29.4 | 1 |
| TFill[55] | 3.5 | 0.053 | " | 1 | |||
| SH-GAN[47] | 3.4 | 0.245 | 18.43 | 0.6936 | 1 | ||
| BDPM (our) | 1.3 | 0.059 | 28.7 | 0.961 | 17.43 | 33.07 | 100 |
Table 4. Comparsion of inpainting approaches CelebA dataset. The best metrics are shown in bold and second best underscored. If the evaluation metric is not available in the paper, or in available public benchmark, it is marked as ‘-‘.
表 4: Cele
