MTCAE-DFER: Multi-Task Cascaded Auto encoder for Dynamic Facial Expression Recognition
MTCAE-DFER: 基于多任务级联自编码器的动态面部表情识别
Peihao Xiang, Kaida Wu, Chaohao Lin and Ou Bai Department of Electrical & Computer Engineering, Florida International University, Miami, USA
裴浩翔、吴凯达、林朝浩和白欧
美国佛罗里达国际大学电气与计算机工程系
Fig. 1: Illustration of the differences between the following four frameworks: (a) Auto encoder-Based Single-Task Learning Framework, (b) Auto encoder-Based Non-Fully Shared Multi-Task Learning Framework, (c) Auto encoder-Based Fully Shared Multi-Task Learning Framework and (d) Our Auto encoder-Based Multi-Task Cascaded Learning Framework.
图 1: 四种框架的差异示意图:(a) 基于自编码器的单任务学习框架,(b) 基于自编码器的非全共享多任务学习框架,(c) 基于自编码器的全共享多任务学习框架,(d) 我们提出的基于自编码器的多任务级联学习框架。
Abstract— This paper expands the cascaded network branch of the auto encoder-based multi-task learning (MTL) framework for dynamic facial expression recognition, namely MultiTask Cascaded Auto encoder for Dynamic Facial Expression Recognition (MTCAE-DFER). MTCAE-DFER builds a plugand-play cascaded decoder module, which is based on the Vision Transformer (ViT) architecture and employs the decoder concept of Transformer to reconstruct the multi-head attention module. The decoder output from the previous task serves as the query (Q), representing local dynamic features, while the Video Masked Auto encoder (VideoMAE) shared encoder output acts as both the key $(\mathbf{K})$ and value (V), representing global dynamic features. This setup facilitates the interaction between global and local dynamic features across related tasks. Additionally, this proposal aims to alleviate over fitting of complex large model. We utilize auto encoder-based multi-task cascaded learning approach to explore the impact of dynamic face detection and dynamic face landmark on dynamic facial expression recognition, which enhances the model’s generalization ability. After we conduct extensive ablation experiments and comparison with state-of-the-art (SOTA) methods on various public datasets for dynamic facial expression recognition, the robustness of the MTCAE-DFER model and the effectiveness of global-local dynamic feature interaction among related tasks have been proven.
摘要—本文拓展了基于自动编码器 (Auto Encoder) 的多任务学习 (MTL) 动态面部表情识别框架的级联网络分支,即多任务级联自动编码器动态面部表情识别 (MTCAE-DFER) 。MTCAE-DFER构建了即插即用的级联解码器模块,该模块基于Vision Transformer (ViT) 架构,采用Transformer的解码器概念重构多头注意力模块。前一任务的解码器输出作为查询 (Q) ,代表局部动态特征,而Video Masked Auto encoder (VideoMAE) 共享编码器输出同时作为键 $(\mathbf{K})$ 和值 (V) ,代表全局动态特征。这种设置促进了相关任务间全局与局部动态特征的交互。此外,该方案旨在缓解复杂大模型的过拟合问题。我们采用基于自动编码器的多任务级联学习方法,探究动态人脸检测与动态人脸关键点对动态面部表情识别的影响,从而增强模型的泛化能力。通过在多个公开动态面部表情识别数据集上进行大量消融实验并与最先进 (SOTA) 方法对比,验证了MTCAE-DFER模型的鲁棒性及相关任务间全局-局部动态特征交互的有效性。
I. INTRODUCTION
I. 引言
Dynamic Facial Expression Recognition (DFER) is a crucial technology in human-computer interaction and affective computing, building on the foundations of Static Facial Expression Recognition (SFER) and further advancing its development. In SFER technology, most recognition models are static, serial, and context-free, such as Deep Emotion [1], FER-VT [2], and PAtt-Lite [3]. The preliminary stages of DFER development, many researchers used SFER techniques to perform frame-level processing of video stream data, but these methods often failed to meet the real-time and temporal correlations of human-computer interaction applications. Therefore, the feasibility of three-dimensional convolutional neural network (3DCNN) was considered, with examples like C3D [4], I3D [5], and SlowFast [6]. However, these networks require significant computational power and still unable to meet real-time. With the emergence of sequence models such as RNN [7], GRU [8], and LSTM [9], combining convolutional neural network with recurrent neural network has become a common trend. For example, models like ResNet1 $^{8\mathrm{+}}$ LSTM [10] and $\mathrm{C3D}+\mathrm{LSTM}$ [11] have been developed to construct DFER system.
动态面部表情识别(DFER)是基于静态面部表情识别(SFER)技术发展而来的人机交互与情感计算关键技术。在SFER技术中,大多数识别模型都是静态、串行且无上下文关联的,如Deep Emotion [1]、FER-VT [2]和PAtt-Lite [3]。DFER发展初期,许多研究者采用SFER技术对视频流数据进行逐帧处理,但这些方法往往无法满足人机交互应用的实时性和时序相关性需求。因此研究者开始考虑三维卷积神经网络(3DCNN)的可行性,例如C3D [4]、I3D [5]和SlowFast [6]等方案,但这些网络计算量庞大仍难以满足实时性要求。随着RNN [7]、GRU [8]和LSTM [9]等序列模型的出现,将卷积神经网络与循环神经网络相结合成为主流趋势,例如ResNet1$^{8\mathrm{+}}$LSTM [10]和$\mathrm{C3D}+\mathrm{LSTM}$[11]等模型被用于构建DFER系统。
Moreover, since the introduction of the TimeS former [12] architecture, it is known for strengthening s patio temporal contextual relevance, while more suitable for dynamic data. Examples include Former-DFER [13], STT-DFER [14], LOGO-Former [15], and MAE-DFER [16]. However, since this architecture emphasizes the effectiveness of global feature extraction, it tends to overlook the key task-specific features. In other words, most current DFER models focus on global feature extraction and inference but lack attention to local feature and global-local interaction feature. This can lead to the model paying too much attention to broad features during the learning process, while ignoring the local features for the specific task.
此外,自TimeSformer [12]架构提出以来,其因增强时空上下文相关性而闻名,同时更适用于动态数据。典型代表包括Former-DFER [13]、STT-DFER [14]、LOGO-Former [15]和MAE-DFER [16]。然而由于该架构侧重全局特征提取的有效性,往往容易忽略任务关键的特异性特征。换言之,当前多数DFER模型聚焦于全局特征提取与推理,却缺乏对局部特征及全局-局部交互特征的关注。这可能导致模型在学习过程中过度关注宽泛特征,而忽视针对特定任务的局部特征。
To address the challenges mentioned above, although models like LOGO-Former [15] and MAE-DFER [16] have made some improvements, they still lack advanced technologies to further alleviate these shortcomings. Inspired by MTFormer [17] and MNC [18], we propose the multi-task cascaded learning approach to enhance the model robustness and the effectiveness of global-local feature interaction in DFER.
为解决上述挑战,尽管LOGO-Former [15]和MAE-DFER [16]等模型已做出部分改进,但仍缺乏先进技术来进一步缓解这些缺陷。受MTFormer [17]与MNC [18]启发,我们提出多任务级联学习方法,以增强动态面部表情识别(DFER)中模型的鲁棒性及全局-局部特征交互的有效性。
As shown in Fig. 1, (a) is Auto encoder-Based SingleTask Learning (STL) network, where the Video Masked Auto encoder (VideoMAE) [19] encoder is obtained by selfsupervised learning. It uses the Masked Auto encoder (MAE) [20] method, but this network structure has weak generalization ability. (b) is Auto encoder-Based Non-Fully Shared Multi-Task Learning (MTL) network. The VideoMAE [19] encoder is shared, while non-shared task-specific decoders are designed for different tasks, improving the model’s overall generalization ability through multiple tasks. (c) is Auto encoder-Based Fully Shared MTL network. It has a shared encoder-decoder pair and the task-specific decoder for each task, enhancing global feature interaction. (d) is Auto encoder-Based Multi-Task Cascaded Learning network. It employs the shared VideoMAE [19] encoder to obtain global representation information, and then uses the cascaded network to enable feature interaction across tasks, achieving global-local feature interaction of related tasks.
如图1所示,(a) 是基于自动编码器 (Auto encoder) 的单任务学习 (STL) 网络,其中视频掩码自动编码器 (VideoMAE) [19] 编码器通过自监督学习获得。它采用掩码自动编码器 (MAE) [20] 方法,但该网络结构泛化能力较弱。(b) 是基于自动编码器的非全共享多任务学习 (MTL) 网络。VideoMAE [19] 编码器被共享,同时为不同任务设计了非共享的任务特定解码器,通过多任务提升模型的整体泛化能力。(c) 是基于自动编码器的全共享多任务学习网络。它具有共享的编码器-解码器对以及每个任务的任务特定解码器,增强了全局特征交互。(d) 是基于自动编码器的多任务级联学习网络。它采用共享的 VideoMAE [19] 编码器获取全局表征信息,然后利用级联网络实现跨任务特征交互,达成相关任务的全局-局部特征交互。
Combined with the aforementioned solutions, our purpose is to explore the impact of dynamic face detection and dynamic face landmark on DFER within the MTL framework, as well as the effectiveness of global-local feature interaction between related face tasks in the cascaded network. Therefore, we will propose a new framework of MultiTask Cascaded Auto encoders for Dynamic Facial Expression Recognition, named MTCAE-DFER. The contributions of this work are as follows:
结合上述解决方案,我们的目的是探索动态人脸检测和动态人脸关键点对MTL框架内DFER的影响,以及级联网络中相关人脸任务间全局-局部特征交互的有效性。因此,我们将提出一种用于动态面部表情识别的新型多任务级联自动编码器框架,命名为MTCAE-DFER。本工作的贡献如下:
II. RELATED WORK
II. 相关工作
A. Dynamic Facial Expression Recognition
A. 动态面部表情识别
DFER is the key part of dynamic emotion recognition, which focuses on the analysis and computation of facial emotions in visual data. At present, most DFER models use s patio temporal attention as their core and built on the ViT [22] architecture, to capture contextual global features related to dynamic facial expressions and improve recognition accuracy. Examples include models like LOGO-Former [15] and MAE-DFER [16]. The LOGO-Former [15] architecture introduces the global-local feature interaction mechanism, which interacts global and local features from the spatiotemporal level, enhancing the se par ability of different data attributes in feature space. Additionally, the MAE-DFER [16] architecture is one of SOTA models in DFER. It employs the VideoMAE [19] self-supervised learning method to address data scarcity in deep learning, thereby producing the pre-trained model with strong feature extraction capabilities. In this work, we will adopt global-local feature interaction concept and inherit this VideoMAE [19] encoder pre-trained model. This approach will extract global feature of dynamic facial expressions, while strengthening the se par ability of local key feature from different related tasks level.
动态面部表情识别 (DFER) 是动态情绪识别的核心环节,专注于视觉数据中面部情绪的分析与计算。目前大多数DFER模型以时空注意力机制为核心,基于ViT [22]架构构建,旨在捕捉与动态面部表情相关的上下文全局特征,提升识别准确率。典型代表包括LOGO-Former [15]和MAE-DFER [16]等模型。LOGO-Former [15]架构创新性地引入全局-局部特征交互机制,从时空层面实现全局与局部特征的交互,增强特征空间中不同数据属性的可分离性。此外,MAE-DFER [16]架构是当前DFER领域的SOTA模型之一,其采用VideoMAE [19]自监督学习方法解决深度学习中的数据稀缺问题,从而生成具有强大特征提取能力的预训练模型。本研究将沿用全局-局部特征交互理念,并继承该VideoMAE [19]编码器预训练模型,在提取动态面部表情全局特征的同时,从多相关任务层面强化局部关键特征的可分离性。
B. Multi-Task Learning
B. 多任务学习
MTL is mainly used for joint learning of multiple tasks to enhance the generalization ability of the model. MTL architectures usually consist of shared modules and taskspecific heads. Various MTL variants have been developed by designing the shared module to effectively distribute and share information across different tasks, as seen in structures like MTFormer [17]. In this study, we focus on exploring and extending the various MTL frameworks shown in Fig. 1. Since this paper primarily deals with DFER, the tasks chosen for MTL will all be facial-related. Our research reveals that in traditional approaches to DFER from video, multiple models are often used in sequence: first to detect the face in the video, then to detect facial landmarks, and finally to recognize facial expressions. However, we aim to streamline the process by constructing the end-to-end unified model that simultaneously performs these three tasks: dynamic face detection, dynamic face landmark, and DFER.
多任务学习 (MTL) 主要用于多任务的联合学习,以增强模型的泛化能力。MTL架构通常由共享模块和任务特定头组成。通过设计共享模块来有效分配和共享不同任务间的信息,已发展出多种MTL变体,如MTFormer [17] 等结构。本研究重点探索并扩展图1所示的各种MTL框架。由于本文主要处理动态面部表情识别 (DFER),所选MTL任务均为面部相关任务。研究发现,在传统视频DFER方法中,通常需要依次使用多个模型:先检测视频中的人脸,再检测面部关键点,最后识别面部表情。但我们旨在通过构建端到端统一模型来简化流程,该模型可同时执行动态人脸检测、动态面部关键点定位和DFER三项任务。
C. Cascaded Auto encoder
C. 级联自编码器
Cascaded auto encoder is the extension of the traditional auto encoder on cascaded network. Generally, the autoencoder consists of an encoder-decoder pair, where the encoder acts as the feature extractor in deep neural network architecture, and the decoder serves as the feature reasoner. Referring to the cascade concept of [18], the relationships between different related tasks can be captured through cascaded decoder. This architecture enhances the performance of MTL network by facilitating global-local feature interaction across related tasks, which helps focus on the critical features necessary for solving the tasks. In this paper, we adopt auto encoder-based cascaded multi-task network architecture. The cascaded decoder enable interaction between the global features extracted by the shared encoder and the local features derived from the task-specific decoder. This framework will be used to prove the effectiveness of global-local feature interaction across different related tasks, thereby improving the robustness of the overall model.
级联自动编码器是传统自动编码器在级联网络上的扩展。通常,自动编码器由编码器-解码器对组成,其中编码器在深度神经网络架构中充当特征提取器,解码器则作为特征推理器。参考[18]的级联概念,不同相关任务之间的关系可以通过级联解码器捕获。该架构通过促进跨相关任务的全局-局部特征交互来提升多任务学习(MTL)网络的性能,有助于聚焦解决任务所需的关键特征。本文采用基于自动编码器的级联多任务网络架构。级联解码器实现了共享编码器提取的全局特征与任务特定解码器衍生的局部特征之间的交互。该框架将用于验证跨不同相关任务的全局-局部特征交互的有效性,从而提升整体模型的鲁棒性。

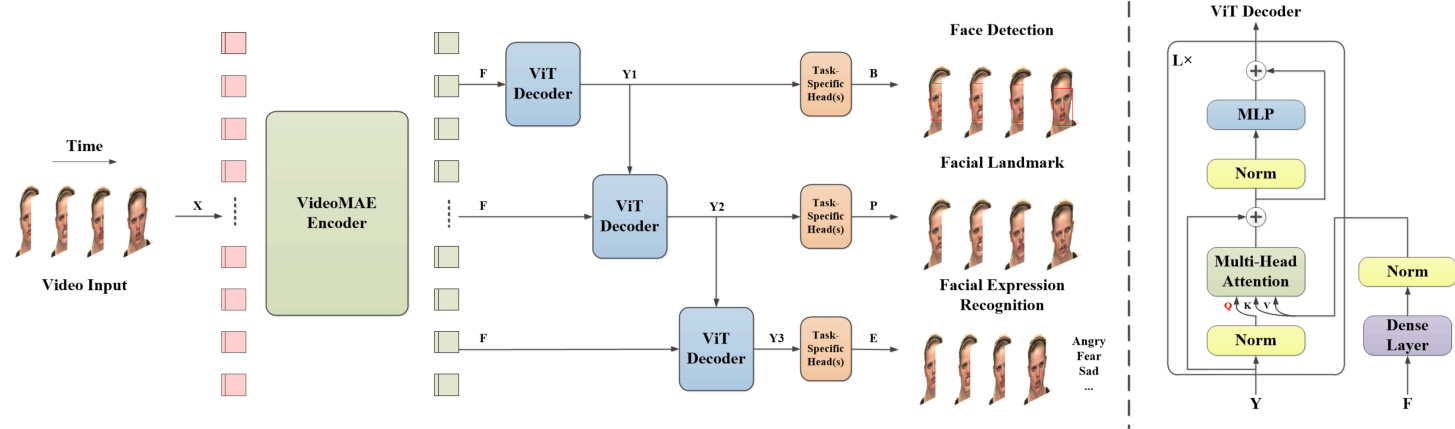

Fig. 2: MTCAE-DFER Model Structure
图 2: MTCAE-DFER 模型结构
III. METHOD
III. 方法
A. Revisiting VideoMAE
A. 重访VideoMAE
VideoMAE [19] is a significant advancement in selfsupervised learning within the field of dynamic vision. It learns dynamic visual representation information by applying some pixel patches with tube masking over consecutive video frames and then using the auto encoder to reconstruct these masked patches. The VideoMAE [19] structure consists of a pair of asymmetric encoder-decoder, and the core theory is derived from ImageMAE [20]. Their basic backbone network is ViT [22], which leverages the s patio temporal attention module to capture the long short-term dependencies between dynamic features. According to our analysis, the VideoMAE [19] encoder extracts dynamic features from video information, while the decoder performs inference on these dynamic features to reconstruct those masked pixel patches.
VideoMAE [19] 是动态视觉领域自监督学习的重要进展。它通过在连续视频帧上应用管状掩码覆盖部分像素块,再使用自动编码器重建这些被掩码的块来学习动态视觉表征信息。VideoMAE [19] 结构由一对非对称编码器-解码器组成,其核心理论源自ImageMAE [20]。它们的基础骨干网络是ViT [22],该网络利用时空注意力模块捕捉动态特征间的长短时依赖关系。根据我们的分析,VideoMAE [19] 编码器从视频信息中提取动态特征,而解码器则对这些动态特征进行推理以重建被掩码的像素块。
In this work, we directly inherit the VideoMAE [19] encoder as the shared feature extractor. As shown in Figure 2, the VideoMAE [19] encoder is used as the pre-trained model to obtain dynamic representation information. The input size is $\mathbf{X}\in R^{1\dot{6}\times224\times224\times3}$ , representing the frame count, image height, image width, and image channels, respectively. In addition, the kernel size of the 3D patch is $2\times16\times16\times3$ . After patching, the sequence matrix $\mathbf{S}\in R^{1568\times1536}$ can be obtained. Since the embedding layer dimension is 1024, which matrix is reduced to $\hat{\mathbf{X}}\in\bar{R^{1568}}\times1024$ token sequences. Through the operation of the pre-trained encoder model, we can obtain the global dynamic representation information about the video, and its output size is $\mathbf{F} \in~R^{1568\times1024}$ . The mathematical expressions for the above process are as follows:
在本工作中,我们直接继承了VideoMAE [19]编码器作为共享特征提取器。如图2所示,VideoMAE [19]编码器被用作预训练模型以获取动态表征信息。输入尺寸为$\mathbf{X}\in R^{1\dot{6}\times224\times224\times3}$,分别表示帧数、图像高度、图像宽度和图像通道数。此外,3D图像块(patch)的核尺寸为$2\times16\times16\times3$。经过分块处理后,可获得序列矩阵$\mathbf{S}\in R^{1568\times1536}$。由于嵌入层维度为1024,该矩阵被降维为$\hat{\mathbf{X}}\in\bar{R^{1568}}\times1024$的token序列。通过预训练编码器模型的操作,我们可以获得关于视频的全局动态表征信息,其输出尺寸为$\mathbf{F}\inR^{1568\times1024}$。上述过程的数学表达式如下:
$$
\begin{array}{c}{{\bf S}=\mathrm{Patching}({\bf X})}\ {{\hat{\bf X}}=\mathrm{Embedding}({\bf S})}\ {{\bf F}=\mathrm{Encoder}({\hat{\bf X}})}\end{array}
$$
$$
\begin{array}{c}{{\bf S}=\mathrm{Patching}({\bf X})}\ {{\hat{\bf X}}=\mathrm{Embedding}({\bf S})}\ {{\bf F}=\mathrm{Encoder}({\hat{\bf X}})}\end{array}
$$
B. Cascaded ViT Decoder Module Design
B. 级联 ViT 解码器模块设计
The Cascaded ViT Decoder is a plug-and-play module based on ViT [22] as the basic architecture and uses the Transformer [21] decoder concept to reconstruct the multihead attention (MHA), as illustrated in Fig. 2 ViT Decoder. The focus is on the attention mechanism, where the query $(Q)$ , key $(K)$ , and value $(V)$ inputs aren’t sourced from the same input. Specifically, $Q$ is the normalized output from the previous stage, while $K$ and $V$ are the normalized dense outputs from the VideoMAE [19] encoder. Furthermore, as shown in Algorithm 1, the ViT Decoder has recursive algorithm of the built-in module, which the values of $K$ and $V$ remain constant, while $Q$ continuously updates throughout the recursion. $Q,K$ , and $V$ are then processed through the MHA mechanism to generate the interaction features $Z$ . Once the interaction features $Z$ are computed, the next operations follow the standard ViT architecture. Specifically, $Z$ undergoes residual connection $Y$ to produce $Z^{\prime}$ , followed by normalization and multi-layer perceptron (MLP) operations to obtain $Y^{\prime}$ . Finally, another residual connection between $Z^{\prime}$ and $Y^{\prime}$ completes the recursive output $Y$ .
级联ViT解码器是一种基于ViT[22]基础架构的即插即用模块,采用Transformer[21]解码器概念重构多头注意力机制(MHA),如图2 ViT解码器所示。其核心在于注意力机制中查询$(Q)$、键$(K)$与值$(V)$输入并非同源——$Q$来自前一阶段归一化输出,而$K$和$V$则源自VideoMAE[19]编码器的归一化密集输出。如算法1所示,该解码器内置模块采用递归算法:$K$与$V$值保持恒定,而$Q$在递归过程中持续更新。$Q,K$和$V$经MHA机制处理后生成交互特征$Z$,后续操作遵循标准ViT架构:$Z$通过残差连接$Y$生成$Z^{\prime}$,经归一化及多层感知机(MLP)运算得到$Y^{\prime}$,最终通过$Z^{\prime}$与$Y^{\prime}$的残差连接完成递归输出$Y$。
This module leverages MHA to directly associate feature maps from different feature layers, generating crucial feature attention map. More importantly, for facilitating the interaction between global and local dynamic features, the design of this module ensures that the feature matrix output from the VideoMAE [19] encoder serves as the global dynamic representation information. To prevent the forgetting of original global feature relationships, the form of $K$ and $V$ matrix is input into the attention layer, while the local representation information is input as the form of $Q$ matrix. In the cascaded mode, the $Q$ matrix is sourced from the output of the previous stage. In the recursive mode, the $Q$ matrix comes from the recursive computation output. In this setup, the shared feature matrix $K$ and $V$ represent global dynamic features and remain constant throughout the process. By associating them with the local dynamic features matrix $Q$ , the process promotes interaction between global and local dynamic features.
该模块利用MHA直接关联来自不同特征层的特征图,生成关键特征注意力图。更重要的是,为促进全局与局部动态特征的交互,该模块设计确保VideoMAE [19] 编码器输出的特征矩阵作为全局动态表征信息。为避免遗忘原始全局特征关系,$K$ 和 $V$ 矩阵以注意力层输入形式存在,而局部表征信息则作为 $Q$ 矩阵输入。在级联模式下,$Q$ 矩阵源自前一阶段的输出;在递归模式下,$Q$ 矩阵来自递归计算输出。此设置中,共享特征矩阵 $K$ 和 $V$ 代表全局动态特征并在整个过程中保持不变。通过将其与局部动态特征矩阵 $Q$ 关联,该过程促进了全局与局部动态特征的交互。
In this work, the MTL framework employs the cascaded learning approach to accomplish three tasks: dynamic face
在本工作中,MTL框架采用级联学习方法来完成三项任务:动态人脸
Algorithm 1 ViT Decoder Algorithm
算法 1 ViT解码器算法
Input: Y, F |
Parameter:L |
Output: Y |
1: Let l = 1. |
2: K, V = Norm(Dense(F)) |
3:whilel≤Ldo |
4: Q = Norm(Y) |
5: Z = MHA(Q, K, V) |
Z'=Z+Y |
6: |
7: Y' = MLP(Norm(Z')) Y = Y' + Z' |
8: |
9:end while |
10:return Y |
| 输入: Y, F |
| 参数: L |
| 输出: Y |
| 1: 设 l = 1 |
| 2: K, V = Norm(Dense(F)) |
| 3: 当 l ≤ L 时执行循环 |
| 4: Q = Norm(Y) |
| 5: Z = MHA(Q, K, V) |
| Z' = Z + Y |
| 6: |
| 7: Y' = MLP(Norm(Z')) Y = Y' + Z' |
| 8: |
| 9: 循环结束 |
| 10: 返回 Y |
detection, dynamic face landmark, and DFER tasks. As illustrated in Fig. 2, each task is equipped with the Cascaded ViT Decoder module to explore the effectiveness of globallocal feature interaction across different related tasks. Based on this framework, we propose the following hypotheses for each task stage:
检测、动态面部关键点和动态面部表情识别(DFER)任务。如图 2所示,每个任务都配备了级联ViT解码器模块,以探索不同相关任务间全局-局部特征交互的有效性。基于此框架,我们针对每个任务阶段提出以下假设:
• First Task Stage (Dynamic Face Detection): The hypothesis is to identify the primary facial target features and eliminate non-target spatial noise from the feature dimensions. This stage focuses on filtering out irrelevant features to ensure the robustness of the following tasks. • Second Task Stage (Dynamic Face Landmark): The hypothesis is to locate critical facial landmarks, reducing interference from other facial features that are less relevant to the subsequent expression recognition task. • Third Task Stage (DFER): The hypothesis involves segmenting the expression feature information space based on both global dynamic features and key local facial features. The goal is to enhance expression recognition by combining fine-grained local information (such as the movements of specific facial landmarks) with over arching global context.
• 第一阶段任务 (动态人脸检测):假设是通过识别主要面部目标特征,从特征维度消除非目标空间噪声。该阶段专注于过滤无关特征,确保后续任务的鲁棒性。
• 第二阶段任务 (动态面部关键点定位):假设是定位关键面部标志点,减少与后续表情识别任务关联性较低的其他面部特征的干扰。
• 第三阶段任务 (动态面部表情识别 (DFER)):假设基于全局动态特征和关键局部面部特征分割表情特征信息空间,目标是通过结合细粒度局部信息 (如特定面部标志点的运动) 与全局上下文信息来提升表情识别性能。
In short, by incorporating the global-local feature interaction at each task level to strengthen the attention of finegrained local features, so that the information representation space is generalized.
简而言之,通过在每项任务层级融入全局-局部特征交互机制,以增强对细粒度局部特征的注意力,从而使信息表征空间更具泛化性。
C. MTCAE-DFER: Model Structure
C. MTCAE-DFER: 模型结构
As shown in Fig. 2, the MTCAE-DFER model mainly consists of VideoMAE [19] encoder, Cascaded ViT Decoder(s) and Task-Specific Head(s). This model directly takes video as input, and its input size is $\mathbf{X}\in R^{16\times224\times22\bar{4}\times3}$ . As mentioned in Section III.A, the VideoMAE [19] encoder serves as the shared feature extractor for all tasks, which generates global dynamic features $\mathbf{F}\in R^{1568\times1024}$ . In addition, three face-related tasks are addressed using the multi-task cascaded learning approach, where three ViT Decoder modules with feature dimension of 512 are constructed to produce three different local dynamic feature outputs $\textbf{Y}\in{R}^{1568\times512}$ . Each ViT Decoder for these tasks uses $\mathbf{F}$ as the shared global feature input, which is fed into $K$ and $V$ to stand for global representation information. On the other hand, the local feature input $Q$ of each task is different. Except for the first dynamic face detection task, which uses $\mathbf{F}$ as local representation information. The other tasks use the ViT Decoder output $\mathbf{Y}$ of the previous task as local representation information. For example, Y1 serves as the local feature input for the second task, and Y2 serves as the local feature input for the third task as shown in Fig. 2. The mathematical expressions for the above process are as follows:
如图 2 所示,MTCAE-DFER 模型主要由 VideoMAE [19] 编码器、级联 ViT 解码器和任务特定头组成。该模型直接以视频作为输入,其输入尺寸为 $\mathbf{X}\in R^{16\times224\times22\bar{4}\times3}$。如第 III.A 节所述,VideoMAE [19] 编码器作为所有任务的共享特征提取器,生成全局动态特征 $\mathbf{F}\in R^{1568\times1024}$。此外,采用多任务级联学习方法处理三个面部相关任务,其中构建了三个特征维度为 512 的 ViT 解码器模块,以生成三个不同的局部动态特征输出 $\textbf{Y}\in{R}^{1568\times512}$。每个任务的 ViT 解码器使用 $\mathbf{F}$ 作为共享全局特征输入,该输入被馈入 $K$ 和 $V$ 以表示全局表征信息。另一方面,每个任务的局部特征输入 $Q$ 各不相同。除了第一个动态人脸检测任务使用 $\mathbf{F}$ 作为局部表征信息外,其他任务均使用前一个任务的 ViT 解码器输出 $\mathbf{Y}$ 作为局部表征信息。例如,Y1 作为第二个任务的局部特征输入,Y2 作为第三个任务的局部特征输入,如图 2 所示。上述过程的数学表达式如下:
$$
\mathbf{Y1}={\mathrm{ViT~Decoder}}(\mathbf{F},\mathbf{F})
$$
$$
\mathbf{Y1}={\mathrm{ViT~Decoder}}(\mathbf{F},\mathbf{F})
$$
$$
\begin{array}{r}{\mathbf{Y2}=\mathrm{ViT~Decoder}(\mathbf{Y1},\mathbf{F})}\ {{}}\ {\mathbf{Y3}=\mathrm{ViT~Decoder}(\mathbf{Y2},\mathbf{F})}\end{array}
$$
$$
\begin{array}{r}{\mathbf{Y2}=\mathrm{ViT~Decoder}(\mathbf{Y1},\mathbf{F})}\ {{}}\ {\mathbf{Y3}=\mathrm{ViT~Decoder}(\mathbf{Y2},\mathbf{F})}\end{array}
$$
Finally, the ViT Decoder output $\mathbf{Y}$ of each task is input to the corresponding Task-Specific Head. The Task-Specific Head includes Normalization layer, Pooling layer and Fully Connected layer. Y1 is input to the dynamic face detection Task-Specific Head to determine the position of the face in each video frame, represented by the bounding box $\textbf{B}\in$ $R^{16\times4}$ . Y2 is input to the dynamic face landmark TaskSpecific Head to obtain the five points $\mathbf{P}\in R^{16\times10}$ (left eye, right eye, nose, left mouth corner, and right mouth corner) in each video frame. Y3 is input to the DFER Task-Specific Head to calculate the probability of each facial expression ${\bf E}\in{\cal R}^{1\times7}$ (assuming there are 7 facial expression classes) in each video. The mathematical expressions for the above process are as follows:
最后,每个任务的ViT解码器输出$\mathbf{Y}$会被输入到对应的任务专用头(Task-Specific Head)中。任务专用头包含归一化层(Normalization layer)、池化层(Pooling layer)和全连接层(Fully Connected layer)。Y1输入动态人脸检测任务专用头,用于确定每帧视频中人脸的位置,用边界框$\textbf{B}\in R^{16\times4}$表示;Y2输入动态人脸关键点任务专用头,获取每帧视频中的五点坐标$\mathbf{P}\in R^{16\times10}$(左眼、右眼、鼻子、左嘴角和右嘴角);Y3输入动态面部表情识别(DFER)任务专用头,计算每段视频中每种面部表情的概率${\bf E}\in{\cal R}^{1\times7}$(假设共有7种面部表情类别)。上述过程的数学表达式如下:
$$
\mathbf{B}=\mathrm{FC}(\mathrm{Pool}(\mathrm{Norm}(\mathbf{Y1})))
$$
$$
\mathbf{B}=\mathrm{FC}(\mathrm{Pool}(\mathrm{Norm}(\mathbf{Y1})))
$$
$$
\mathbf{P}=\mathrm{FC}(\mathrm{Pool}(\mathrm{Norm}(\mathbf{Y2})))
$$
$$
\mathbf{P}=\mathrm{FC}(\mathrm{Pool}(\mathrm{Norm}(\mathbf{Y2})))
$$
$$
\mathbf{E}=\mathrm{FC}(\mathrm{Pool}(\mathrm{Norm}(\mathbf{Y3})))
$$
$$
\mathbf{E}=\mathrm{FC}(\mathrm{Pool}(\mathrm{Norm}(\mathbf{Y3})))
$$
IV. EXPERIMENTS
IV. 实验
A. Datasets
A. 数据集
- RAVDESS [23]: The Ryerson Audio-Visual Database of Emotional Speech and Song is a dataset composed of emotional performances by 24 North American professional actors, recorded in a laboratory environment with North American accent. The facial emotions described in this dataset include anger, disgust, fear, happiness, neutral, sadness, and surprise. Each emotion includes two intensity variations: normal and strong. In this work, we only use the visual dataset, which contains 1,440 video files. Among them, there are 288 videos for neutral emotions, and 192 videos for each of the other emotions. Our model evaluation is conducted using 5-fold cross-validation on subjects-independent of the emotion.
- RAVDESS [23]: 雷尔森情感语音与歌曲视听数据库(RAVDESS)是由24位北美专业演员在实验室环境中录制的情感表演数据集,采用北美口音。该数据集描述的面部情绪包括愤怒、厌恶、恐惧、快乐、中性、悲伤和惊讶。每种情绪包含两种强度变化:普通和强烈。本研究中仅使用视觉数据集,包含1,440个视频文件。其中中性情绪视频288个,其他每种情绪视频192个。我们采用主体独立的5折交叉验证进行模型评估。
- CREMA-D [24]: The Crowd-sourced Emotional Multimodal Actor Dataset contains emotional performances by 91 professional actors from around the world, representing various countries and ethnicities. These actors performed emotional expressions in the laboratory environment with different accents. Each actor displays six different emotions: anger, disgust, fear, happiness, neutral and sadness. In addition, each emotion was expressed at low, medium, high, and unspecified intensity levels during dialogues. The dataset has a total of 7,442 video clips, which 1,087 video clips depicting neutral emotions, and 1,271 video clips for each of the other emotions. The model evaluation adopts 5-fold cross-validation with subjects-independent of the emotion.
- CREMA-D [24]: Crowd-sourced Emotional Multimodal Actor Dataset (CREMA-D) 包含来自全球各地91位专业演员的情绪表演,涵盖不同国家和种族。这些演员在实验室环境中以不同口音表现情绪表达。每位演员呈现六种不同情绪:愤怒、厌恶、恐惧、快乐、平静和悲伤。此外,每种情绪在对话中以低、中、高及未指定强度级别呈现。该数据集总计7,442个视频片段,其中1,087个为平静情绪片段,其余每种情绪各1,271个片段。模型评估采用5折交叉验证,且受试者情绪相互独立。
- MEAD [25]: The Multi-view Emotional Audio-visual Dataset is a video corpus of talking faces from 60 actors, who speak with eight different emotions (anger, disgust, contempt, fear, happiness, sadness, surprise, and neutral) at three different intensity levels (except neutral). The videos were recorded simultaneously from seven different angles under strictly controlled environment to capture high-quality facial expression details. According to the publicly available part of this dataset, we used data from 48 actors, comprising a total of 6,568 video clips. Among these, 380 clips depict neutral emotions, while each of the other emotions has 884 clips. The model evaluation still uses 5-fold cross-validation with subjects-independent of the emotion.
- MEAD [25]: 多视角情感视听数据集 (Multi-view Emotional Audio-visual Dataset) 包含60位演员的说话面部视频,演员以三种不同强度水平(中性情绪除外)表现八种情感(愤怒、厌恶、轻蔑、恐惧、快乐、悲伤、惊讶和中性)。这些视频在严格受控环境下从七个不同角度同步录制,以捕捉高质量的面部表情细节。根据该数据集公开部分,我们使用了48位演员的数据,共计6,568个视频片段。其中380个片段为中性情绪,其他每种情绪各有884个片段。模型评估仍采用与情感无关的受试者5折交叉验证。

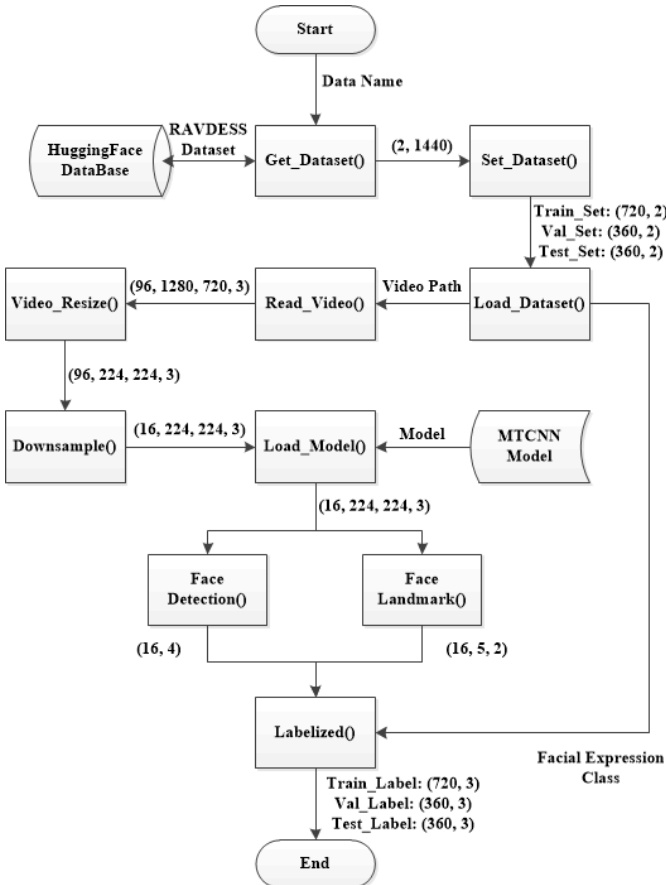

Fig. 3: Multi-Task Label Data Preprocessing Flow-Chart
图 3: 多任务标签数据预处理流程图
B. Implementation Details
B. 实现细节
- Preprocessing: In this study, our main preprocessing work is to perform multi-task labeling on various dataset. Since the various dataset used don’t include face position and face landmark labels, we employ the MTCNN [26] model to perform frame-level annotations on the video data, leveraging its face detection and landmark functions to collect multi-task data labels. Using the RAVDESS [23] dataset as an example, it consists of two sub-datasets: video path data and emotion label data. The video path data is input into the Read Video() function, allowing us to retrieve video information, especially the total number of frames, resolution, and the number of channels. To meet the input requirements of the VideoMAE [19] encoder model, we preprocess these video datasets by adjusting the resolution of each frame to $224\times224$ using the image scaling function.
- 预处理:在本研究中,我们的主要预处理工作是对各类数据集进行多任务标注。由于所用数据集未包含人脸位置和面部关键点标签,我们采用MTCNN [26]模型对视频数据进行帧级标注,利用其人脸检测和关键点功能收集多任务数据标签。以RAVDESS [23]数据集为例,它包含两个子数据集:视频路径数据和情感标签数据。视频路径数据被输入Read Video()函数,使我们能够获取视频信息,特别是总帧数、分辨率和通道数。为满足VideoMAE [19]编码器模型的输入要求,我们通过图像缩放函数将每帧分辨率调整为$224\times224$来预处理这些视频数据集。
Additionally, since the maximum input is 16 frames of video, we process the total frame count of the source videos using average down sampling to ensure that all videos have exactly 16 frames. Next, we load the MTCNN [26] model to perform face detection and face landmark on the pre processed videos $\begin{array}{r}{\textbf{X}\in_R^{16\times224\times224\times3}}\end{array}$ , obtaining frame-level face bounding box annotations $16\times4$ and 5- point annotations $16\times5\times2$ . Finally, we summarize and categorize the emotion label data to complete the multi-task labeling data preprocessing. The data preprocessing process is illustrated in Fig. 3.
此外,由于最大输入为16帧视频,我们对源视频的总帧数采用平均降采样处理,确保所有视频恰好包含16帧。接着,我们加载MTCNN [26]模型对预处理后的视频 $\begin{array}{r}{\textbf{X}\in_R^{16\times224\times224\times3}}\end{array}$ 进行人脸检测和面部关键点定位,获得帧级人脸边界框标注 $16\times4$ 和5点关键点标注 $16\times5\times2$ 。最后,我们对情感标签数据进行汇总分类,完成多任务标注数据的预处理。数据预处理流程如图3所示。
- Fine-tuning: After preprocessing the video dataset to obtain data that meets the input requirements of the VideoMAE [19] encoder, we use the pre-trained model based on the ViT-L [22] model from MAE-DFER [16]. As described in Section III.B, to enhance global-local feature interactions across tasks, the 5-layer, 3-head ViT Decoder cascaded module is configured for each task to associate global and local representation information. Additionally, MTL is employed to handle each task, particularly using task-specific heads equipped with Pooling layer and Fully Connected layer for fine-tuning on downstream tasks, as shown in Fig. 4.
- 微调 (Fine-tuning): 在将视频数据集预处理为符合VideoMAE [19]编码器输入要求的数据后,我们采用基于MAE-DFER [16]中ViT-L [22]模型的预训练模型。如第III.B节所述,为增强跨任务的全局-局部特征交互,为每个任务配置了5层3头ViT解码器级联模块,用于关联全局与局部表征信息。同时采用多任务学习 (MTL) 处理各任务,特别是使用配备池化层 (Pooling layer) 和全连接层 (Fully Connected layer) 的任务专属头部进行下游任务微调,如图4所示。
For fine-tuning, the AdamW [27] optimizer is used with the base learning rate of 1e-3 and the weight decay of 0.001. Mean squared error (MSE) is used as the loss function for dynamic face detection and landmark, with the loss weight of 0.5 for each task. Sparse Categorical Cross-Entropy is used as the loss function for DFER, with the loss weight of 1.5, and Accuracy is used as the training evaluation metric. The DFER evaluation metrics for the model include Unweighted Average Recall (UAR) and Weighted Average Recall (WAR). 3) Structure strategy: To demonstrate the effectiveness of the multi-task cascaded network in global-local feature interaction, we propose six structure strategies of the network framework to analyze various architectures from STL to MTL. The following structure strategies are extensions based on Fig. 1.
在微调过程中,我们采用AdamW [27]优化器,基础学习率为1e-3,权重衰减为0.001。动态人脸检测和关键点任务使用均方误差(MSE)作为损失函数,每个任务的损失权重为0.5。动态面部表情识别(DFER)采用稀疏分类交叉熵作为损失函数,损失权重为1.5,并以准确率(Accuracy)作为训练评估指标。该模型的DFER评估指标包括未加权平均召回率(UAR)和加权平均召回率(WAR)。3) 结构策略:为验证多任务级联网络在全局-局部特征交互中的有效性,我们提出六种网络框架结构策略,用于分析从单任务学习(STL)到多任务学习(MTL)的各种架构。以下结构策略均基于图1进行扩展。
• First Architecture: The STL network, consisting of the VideoMAE [19] encoder and the task-specific head with only Fully Connected layer. • Second and Third Architectures: Non-Fully Shared MTL networks, consis
