[论文翻译]Meta Pseudo Labels


原文地址:https://arxiv.org/pdf/2003.10580v4


Meta Pseudo Labels

Abstract

摘要

We present Meta Pseudo Labels, a semi-supervised learning method that achieves a new state-of-the-art top-1 accuracy of $90.2%$ on ImageNet, which is $1.6%$ better than the existing state-of-the-art [16]. Like Pseudo Labels, Meta Pseudo Labels has a teacher network to generate pseudo labels on unlabeled data to teach a student network. However, unlike Pseudo Labels where the teacher is fixed, the teacher in Meta Pseudo Labels is constantly adapted by the feedback of the student’s performance on the labeled dataset. As a result, the teacher generates better pseudo labels to teach the student.1

我们提出元伪标签 (Meta Pseudo Labels),这是一种半监督学习方法,在ImageNet上实现了90.2%的最新top-1准确率,比现有最佳结果[16]高出1.6%。与伪标签类似,元伪标签通过教师网络在无标签数据上生成伪标签来指导学生网络。然而,与固定教师的伪标签不同,元伪标签中的教师会根据学生在有标签数据集上的表现反馈不断调整。因此,教师能生成更优质的伪标签来指导学生。1

1. Introduction

1. 引言

The methods of Pseudo Labels or self-training [57, 81, 55, 36] have been applied successfully to improve state-ofthe-art models in many computer vision tasks such as image classification (e.g., [79, 77]), object detection, and semantic segmentation (e.g., [89, 51]). Pseudo Labels methods work by having a pair of networks, one as a teacher and one as a student. The teacher generates pseudo labels on unlabeled images. These pseudo labeled images are then combined with labeled images to train the student. Thanks to the abundance of pseudo labeled data and the use of regular iz ation methods such as data augmentation, the student learns to become better than the teacher [77].

伪标签 (Pseudo Labels) 或自训练方法 [57, 81, 55, 36] 已成功应用于提升图像分类 (如 [79, 77])、目标检测和语义分割 (如 [89, 51]) 等计算机视觉任务中的前沿模型性能。该方法通过构建教师-学生双网络架构实现:教师网络为未标注图像生成伪标签,这些伪标注图像与标注数据共同用于训练学生网络。得益于大量伪标注数据及数据增强等正则化方法的应用,学生网络的性能最终会超越教师网络 [77]。

Despite the strong performance of Pseudo Labels methods, they have one main drawback: if the pseudo labels are inaccurate, the student will learn from inaccurate data. As a result, the student may not get significantly better than the teacher. This drawback is also known as the problem of confirmation bias in pseudo-labeling [2].

尽管伪标签(Pseudo Labels)方法表现强劲,但其存在一个主要缺陷:若伪标签不准确,学生模型将从错误数据中学习。这会导致学生模型的性能无法显著超越教师模型。该缺陷在文献中也被称为伪标签中的确认偏误问题 [2]。

In this paper, we design a systematic mechanism for the teacher to correct the bias by observing how its pseudo labels would affect the student. Specifically, we propose Meta Pseudo Labels, which utilizes the feedback from the student to inform the teacher to generate better pseudo labels. In our implementation, the feedback signal is the performance of the student on the labeled dataset. This feedback signal is used as a reward to train the teacher throughout the course of the student’s learning. In summary, the teacher and student of Meta Pseudo Labels are trained in parallel: (1) the student learns from a minibatch of pseudo labeled data annotated by the teacher, and (2) the teacher learns from the reward signal of how well the student performs on a minibatch drawn from the labeled dataset.

本文设计了一种系统性机制,使教师模型能够通过观察伪标签对学生模型的影响来修正偏差。具体而言,我们提出元伪标签 (Meta Pseudo Labels) 方法,利用学生模型的反馈来指导教师模型生成更优质的伪标签。在实现中,反馈信号表现为学生模型在标注数据集上的性能表现,该信号被用作奖励来在整个学习过程中训练教师模型。总结来说,元伪标签的教师模型与学生模型采用并行训练方式:(1) 学生模型从教师模型标注的伪标签小批量数据中学习;(2) 教师模型则根据学生模型在标注数据小批量样本上的表现获得奖励信号进行学习。

We experiment with Meta Pseudo Labels, using the ImageNet [56] dataset as labeled data and the JFT-300M dataset [26, 60] as unlabeled data. We train a pair of Efficient Net-L2 networks, one as a teacher and one as a student, using Meta Pseudo Labels. The resulting student network achieves the top-1 accuracy of $90.2%$ on the ImageNet ILSVRC 2012 validation set [56], which is $1.6%$ better than the previous record of $88.6%$ [16]. This student model also generalizes to the ImageNet-ReaL test set [6], as summarized in Table 1. Small scale semi-supervised learning experiments with standard ResNet models on CIFAR10-4K, SVHN-1K, and ImageNet $10%$ also show that Meta Pseudo Labels outperforms a range of other recently proposed methods such as FixMatch [58] and Unsupervised Data Augmentation [76].

我们采用元伪标签(Meta Pseudo Labels)方法进行实验,使用ImageNet[56]数据集作为标注数据,JFT-300M数据集[26,60]作为未标注数据。我们训练了一对Efficient Net-L2网络(一个作为教师模型,一个作为学生模型),最终学生网络在ImageNet ILSVRC 2012验证集[56]上实现了90.2%的top-1准确率,比之前88.6%[16]的纪录提高了1.6%。如表1所示,该学生模型在ImageNet-ReaL测试集[6]上也表现出良好的泛化能力。在CIFAR10-4K、SVHN-1K和ImageNet 10%数据集上使用标准ResNet模型进行的小规模半监督学习实验表明,元伪标签方法优于FixMatch[58]和无监督数据增强[76]等近期提出的其他方法。

Table 1: Summary of our key results on ImageNet ILSVRC 2012 validation set [56] and the ImageNet-ReaL test set [6].

DatasetsImageNet Top-1AccuracyImageNet-ReaL Precision@1
Previous SOTA [16, 14]88.690.72
Ours90.291.02

表 1: 我们在ImageNet ILSVRC 2012验证集[56]和ImageNet-ReaL测试集[6]上的关键结果总结。

数据集 ImageNet Top-1准确率 ImageNet-ReaL Precision@1
Previous SOTA [16, 14] 88.6 90.72
Ours 90.2 91.02

2. Meta Pseudo Labels

2. Meta Pseudo Labels

An overview of the contrast between Pseudo Labels and Meta Pseudo Labels is presented in Figure 1. The main difference is that in Meta Pseudo Labels, the teacher receives feedback of the student’s performance on a labeled dataset.

图 1: 展示了伪标签 (Pseudo Labels) 与元伪标签 (Meta Pseudo Labels) 的对比概览。主要区别在于元伪标签中,教师模型会接收学生在带标注数据集上的表现反馈。

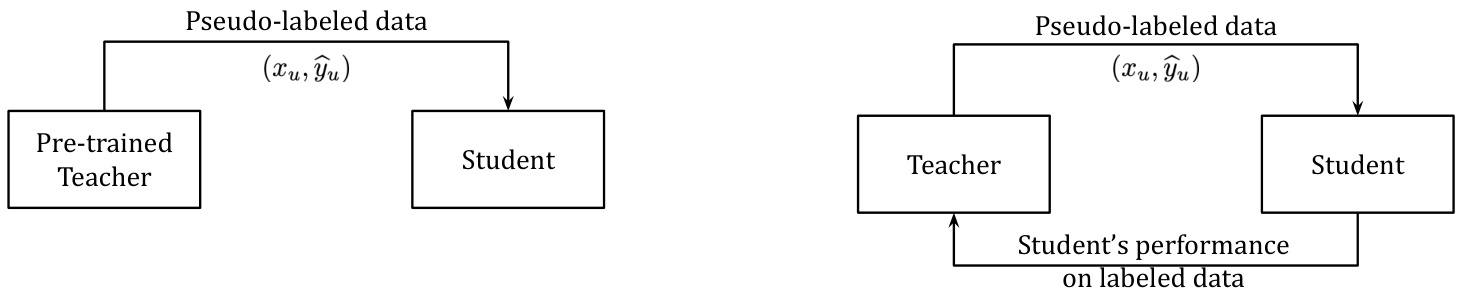

Figure 1: The difference between Pseudo Labels and Meta Pseudo Labels. Left: Pseudo Labels, where a fixed pre-trained teacher generates pseudo labels for the student to learn from. Right: Meta Pseudo Labels, where the teacher is trained along with the student. The student is trained based on the pseudo labels generated by the teacher (top arrow). The teacher is trained based on the performance of the student on labeled data (bottom arrow).

图 1: 伪标签 (Pseudo Labels) 与元伪标签 (Meta Pseudo Labels) 的区别。左图: 伪标签,固定预训练教师模型为学生生成学习用的伪标签。右图: 元伪标签,教师模型与学生模型协同训练。学生模型根据教师生成的伪标签进行训练 (上方箭头),教师模型则根据学生在标注数据上的表现进行更新 (下方箭头)。

Notations. Let $T$ and $S$ respectively be the teacher network and the student network in Meta Pseudo Labels. Let their corresponding parameters be $\theta_{T}$ and $\theta_{S}$ . We use $(x_{l},y_{l})$ to refer to a batch of images and their corresponding labels, e.g., ImageNet training images and their labels, and use $x_{u}$ to refer to a batch of unlabeled images, e.g., images from the internet. We denote by $T(x_{u};\theta_{T})$ the soft predictions of the teacher network on the batch $x_{u}$ of unlabeled images and likewise for the student, e.g. $S(x_{l};\theta_{S})$ and $S(x_{u};\theta_{S})$ . We use $\mathrm{CE}(q,p)$ to denote the cross-entropy loss between two distributions $q$ and $p$ ; if $q$ is a label then it is understood as a one-hot distribution; if $q$ and $p$ have multiple instances in them then $\mathrm{CE}(q,p)$ is understood as the average of all instances in the batch. For example, $\mathbf{CE}\left(y_{l},S(x_{l};\theta_{S})\right)$ is the canonical cross-entropy loss in supervised learning.

符号说明。设 $T$ 和 $S$ 分别表示元伪标签 (Meta Pseudo Labels) 中的教师网络和学生网络,其对应参数为 $\theta_{T}$ 和 $\theta_{S}$。用 $(x_{l},y_{l})$ 表示一批图像及其对应标签(例如 ImageNet 训练图像及标签),用 $x_{u}$ 表示一批未标注图像(例如来自互联网的图像)。$T(x_{u};\theta_{T})$ 表示教师网络对未标注图像批次 $x_{u}$ 的软预测,同理 $S(x_{l};\theta_{S})$ 和 $S(x_{u};\theta_{S})$ 表示学生网络的预测。$\mathrm{CE}(q,p)$ 表示两个分布 $q$ 和 $p$ 之间的交叉熵损失:若 $q$ 为标签则视为独热分布;若 $q$ 和 $p$ 包含多个实例,则 $\mathrm{CE}(q,p)$ 表示批次中所有实例的平均损失。例如 $\mathbf{CE}\left(y_{l},S(x_{l};\theta_{S})\right)$ 即监督学习中的标准交叉熵损失。

Pseudo Labels as an optimization problem. To introduce Meta Pseudo Labels, let’s first review Pseudo Labels. Specifically, Pseudo Labels (PL) trains the student model to minimize the cross-entropy loss on unlabeled data:

伪标签作为优化问题。在介绍元伪标签 (Meta Pseudo Labels) 之前,我们先回顾伪标签 (Pseudo Labels) 方法。具体而言,伪标签通过让学生模型 (student model) 最小化未标注数据上的交叉熵损失进行训练:

$$
\theta_{S}^{\mathrm{PL}}=\underset{\theta_{S}}{\arg\operatorname*{min}}\underbrace{\mathbb{E}{x_{u}}\Big[\mathrm{CE}\big(T(x_{u};\theta_{T}),S(x_{u};\theta_{S})\big)\Big]}{:=\mathcal{L}{u}\big(\theta_{T},\theta_{S}\big)}
$$

where the pseudo target $T(x_{u};\theta_{T})$ is produced by a well pre-trained teacher model with fixed parameter $\theta_{T}$ . Given a good teacher, the hope of Pseudo Labels is that the obtained $\theta_{S}^{\mathrm{PL}}$ would ultimately achieve a low loss on labeled data, i.e. $\begin{array}{r}{\tilde{\mathbb{E}}{x_{l},y_{l}}\left[\mathbf{CE}\big(y_{l},S(x_{l};\theta_{S}^{\mathrm{PL}})\big)\right]:=\mathcal{L}{l}\big(\theta_{S}^{\mathrm{PL}}\big).}\end{array}$ .

其中伪目标 $T(x_{u};\theta_{T})$ 由参数固定为 $\theta_{T}$ 的预训练优良教师模型生成。给定优质教师模型,伪标签 (Pseudo Labels) 的期望是最终获得的 $\theta_{S}^{\mathrm{PL}}$ 能在标注数据上实现低损失,即 $\begin{array}{r}{\tilde{\mathbb{E}}{x_{l},y_{l}}\left[\mathbf{CE}\big(y_{l},S(x_{l};\theta_{S}^{\mathrm{PL}})\big)\right]:=\mathcal{L}{l}\big(\theta_{S}^{\mathrm{PL}}\big).}\end{array}$ 。

Under the framework of Pseudo Labels, notice that the optimal student parameter $\theta_{S}^{\mathrm{PL}}$ always depends on the teacher parameter $\theta_{T}$ via the pseudo targets $T(x_{u};\theta_{T})$ . To facilitate the discussion of Meta Pseudo Labels, we can explicitly express the dependency as $\theta_{S}^{\mathrm{PL}}(\theta_{T})$ . As an immediate observation, the ultimate student loss on labeled data $\mathcal{L}{l}\left(\theta_{S}^{\mathrm{PL}}(\theta_{T})\right)$ is also a “function” of $\theta_{T}$ . Therefore, we could further opti

在伪标签 (Pseudo Labels) 框架下,最优学生参数 $\theta_{S}^{\mathrm{PL}}$ 始终通过伪目标 $T(x_{u};\theta_{T})$ 依赖于教师参数 $\theta_{T}$。为了便于讨论元伪标签 (Meta Pseudo Labels),我们可以显式地将这种依赖关系表示为 $\theta_{S}^{\mathrm{PL}}(\theta_{T})$。显而易见,标记数据上的最终学生损失 $\mathcal{L}{l}\left(\theta_{S}^{\mathrm{PL}}(\theta_{T})\right)$ 也是 $\theta_{T}$ 的一个"函数"。因此,我们可以进一步优化

mize $\mathcal{L}{l}$ with respect to $\theta_{T}$ :

最小化 $\mathcal{L}{l}$ 关于 $\theta_{T}$ 的损失:

$$
\begin{array}{r l}{\underset{\theta_{T}}{\mathrm{min}}}&{\mathcal{L}{l}\left(\theta_{S}^{\mathrm{PL}}(\theta_{T})\right),}\ {\mathrm{where}}&{\theta_{S}^{\mathrm{PL}}(\theta_{T})=\underset{\theta_{S}}{\mathrm{argmin}}\mathcal{L}{u}\left(\theta_{T},\theta_{S}\right).}\end{array}
$$

Intuitively, by optimizing the teacher’s parameter according to the performance of the student on labeled data, the pseudo labels can be adjusted accordingly to further improve student’s performance. As we are effectively trying to optimize the teacher on a meta level, we name our method Meta Pseudo Labels. However, the dependency of $\theta_{S}^{\mathrm{PL}}(\theta_{T})$ on $\theta_{T}$ is extremely complicated, as computing the gradient $\nabla_{\theta_{T}}\theta_{S}^{\mathrm{PL}}(\theta_{T})$ requires unrolling the entire student training process (i.e. $\mathrm{argmin}{\theta_{S}}$ ).

直观地说,通过根据学生在标注数据上的表现来优化教师模型的参数,可以相应调整伪标签以进一步提升学生模型的性能。由于我们实际上是在元层面上优化教师模型,因此将我们的方法命名为元伪标签 (Meta Pseudo Labels) 。然而,$\theta_{S}^{\mathrm{PL}}(\theta_{T})$ 对 $\theta_{T}$ 的依赖关系极其复杂,因为计算梯度 $\nabla_{\theta_{T}}\theta_{S}^{\mathrm{PL}}(\theta_{T})$ 需要展开整个学生模型的训练过程 (即 $\mathrm{argmin}{\theta_{S}}$ )。

Practical approximation. To make Meta Pseudo Labels feasible, we borrow ideas from previous work in meta learning [40, 15] and approximate the multi-step $\mathrm{argmin}{\theta_{S}}$ with the one-step gradient update of $\theta_{S}$ :

实用近似方法。为使元伪标签方法可行,我们借鉴了元学习领域先前工作[40,15]的思路,用单步梯度更新$\theta_{S}$来近似多步$\mathrm{argmin}{\theta_{S}}$计算:

$$
\theta_{S}^{\mathrm{PL}}(\theta_{T})\approx\theta_{S}-\eta_{S}\cdot\nabla_{\theta_{S}}\mathcal{L}{u}\big(\theta_{T},\theta_{S}\big),
$$

$$
\theta_{S}^{\mathrm{PL}}(\theta_{T})\approx\theta_{S}-\eta_{S}\cdot\nabla_{\theta_{S}}\mathcal{L}{u}\big(\theta_{T},\theta_{S}\big),
$$

where $\eta_{S}$ is the learning rate. Plugging this approximation into the optimization problem in Equation 2 leads to the practical teacher objective in Meta Pseudo Labels:

其中 $\eta_{S}$ 是学习率。将这个近似代入公式 2 的优化问题,即可得到元伪标签 (Meta Pseudo Labels) 中的实际教师目标:

$$
\begin{array}{r l}{\underset{\theta_{T}}{\operatorname*{min}}}&{{}\mathcal{L}{l}\Big(\theta_{S}-\eta_{S}\cdot\nabla_{\theta_{S}}\mathcal{L}{u}\big(\theta_{T},\theta_{S}\big)\Big).}\end{array}
$$

$$
\begin{array}{r l}{\underset{\theta_{T}}{\operatorname*{min}}}&{{}\mathcal{L}{l}\Big(\theta_{S}-\eta_{S}\cdot\nabla_{\theta_{S}}\mathcal{L}{u}\big(\theta_{T},\theta_{S}\big)\Big).}\end{array}
$$

Note that, if soft pseudo labels are used, i.e. $T(x_{u};\theta_{T})$ is the full distribution predicted by teacher, the objective above is fully differentiable with respect to $\theta_{T}$ and we can perform standard back-propagation to get the gradient.2 However, in this work, we sample the hard pseudo labels from the teacher distribution to train the student. We use hard pseudo labels because they result in smaller computational graphs which are necessary for our large-scale experiments in Section 4. For smaller experiments where we can use either soft pseudo labels or hard pseudo labels, we do not find significant performance difference between them. A caveat of using hard pseudo labels is that we need to rely on a slightly modified version of REINFORCE to obtain the approximated gradient of $\mathcal{L}{l}$ in Equation 3 with respect to $\theta_{T}$ . We defer the detailed derivation to Appendix A.

需要注意的是,如果使用软伪标签(即 $T(x_{u};\theta_{T})$ 是教师模型预测的完整概率分布),上述目标函数对 $\theta_{T}$ 完全可微,我们可以通过标准反向传播来获取梯度。然而在本工作中,我们从教师分布中采样硬伪标签来训练学生模型。采用硬伪标签的原因是它们能生成更小的计算图,这对第4节的大规模实验至关重要。在可以使用软/硬伪标签的小规模实验中,我们发现两者性能差异不大。使用硬伪标签的注意事项是:我们需要依赖改进版REINFORCE算法来近似计算式3中 $ \mathcal{L}{l} $ 对 $\theta_{T}$ 的梯度,详细推导见附录A。

On the other hand, the student’s training still relies on the objective in Equation 1, except that the teacher parameter is not fixed anymore. Instead, $\theta_{T}$ is constantly changing due to the teacher’s optimization. More interestingly, the student’s parameter update can be reused in the one-step approximation of the teacher’s objective, which naturally gives rise to an alternating optimization procedure between the student update and the teacher update:

另一方面,学生的训练仍然依赖于公式1的目标函数,只是教师参数不再固定。相反,由于教师的优化过程,$\theta_{T}$ 持续变化。更有趣的是,学生参数的更新可以复用于教师目标函数的一步近似,这自然形成了学生更新与教师更新交替进行的优化过程:

• Student: draw a batch of unlabeled data $x_{u}$ , then sample $T(x_{u};\theta_{T})$ from teacher’s prediction, and optimize objective 1 with SGD: $\theta_{S}^{\prime}=\theta_{S}-\eta_{S}\nabla_{\theta_{S}}\mathcal{L}{u}(\theta_{T},\theta_{S})$ , • Teacher: draw a batch of labeled data $(x_{l},y_{l})$ , and “reuse” the student’s update to optimize objective 3 with SGD: $\theta_{T}^{\prime}=\theta_{T}-\eta_{T}\bar{\nabla}{\theta_{T}}\mathcal{L}{l}\left(\begin{array}{l}{\bar{\theta_{S}}-\nabla_{\theta_{S}}\bar{\mathcal{L}{u}}\left(\theta_{T},\theta_{S}\right)}\end{array}\right)$ . $=\theta_{S}^{\prime}$ reused fro{mz student’s upd}ate

• 学生:抽取一批未标注数据 $x_{u}$,从教师预测中采样 $T(x_{u};\theta_{T})$,并通过SGD优化目标1:$\theta_{S}^{\prime}=\theta_{S}-\eta_{S}\nabla_{\theta_{S}}\mathcal{L}{u}(\theta_{T},\theta_{S})$
• 教师:抽取一批标注数据 $(x_{l},y_{l})$,并“复用”学生的更新,通过SGD优化目标3:$\theta_{T}^{\prime}=\theta_{T}-\eta_{T}\bar{\nabla}{\theta_{T}}\mathcal{L}{l}\left(\begin{array}{l}{\bar{\theta_{S}}-\nabla_{\theta_{S}}\bar{\mathcal{L}{u}}\left(\theta_{T},\theta_{S}\right)}\end{array}\right)$。$=\theta_{S}^{\prime}$ 复用自学生更新

Teacher’s auxiliary losses. We empirically observe that Meta Pseudo Labels works well on its own. Moreover, it works even better if the teacher is jointly trained with other auxiliary objectives. Therefore, in our implementation, we augment the teacher’s training with a supervised learning objective and a semi-supervised learning objective. For the supervised objective, we train the teacher on labeled data. For the semi-supervised objective, we additionally train the teacher on unlabeled data using the UDA objective [76]. For the full pseudo code of Meta Pseudo Labels when it is combined with supervised and UDA objectives for the teacher, please see Appendix B, Algorithm 1.

教师辅助损失。我们通过实验观察到,元伪标签 (Meta Pseudo Labels) 方法本身表现良好。此外,若教师模型与其他辅助目标联合训练,效果会进一步提升。因此,在实现中,我们为教师模型增加了监督学习目标和半监督学习目标。监督目标方面,教师模型在标注数据上进行训练;半监督目标方面,我们额外采用UDA目标 [76] 在无标注数据上训练教师模型。完整伪代码(结合监督目标与UDA目标的元伪标签实现)详见附录B算法1。

Finally, as the student in Meta Pseudo Labels only learns from unlabeled data with pseudo labels generated by the teacher, we can take a student model that has converged after training with Meta Pseudo Labels and finetune it on labeled data to improve its accuracy. Details of the student’s finetuning are reported in our experiments.

最后,由于元伪标签 (Meta Pseudo Labels) 中的学生模型仅通过教师生成的伪标签从未标注数据中学习,我们可以对训练后已收敛的学生模型进行有标注数据的微调以提升其准确率。具体微调细节将在实验部分说明。

Next, we will present the experimental results of Meta Pseudo Labels, and organize them as follows:

接下来,我们将展示元伪标签 (Meta Pseudo Labels) 的实验结果,并按以下方式组织:

• Section 3 presents small scale experiments where we compare Meta Pseudo Labels against other state-of-the-art semi-supervised learning methods on widely used benchmarks. • Section 4 presents large scale experiments of Meta Pseudo Labels where we push the limits of ImageNet accuracy.

  • 第3节展示了小规模实验,我们在广泛使用的基准测试中将元伪标签 (Meta Pseudo Labels) 与其他最先进的半监督学习方法进行比较。
  • 第4节展示了元伪标签的大规模实验,我们在ImageNet准确率上突破极限。

3. Small Scale Experiments

3. 小规模实验

In this section, we present our empirical studies of Meta Pseudo Labels at small scales. We first study the role of feedback in Meta Pseudo Labels on the simple TwoMoon dataset [7]. This study visually illustrates Meta Pseudo Labels’ behaviors and benefits. We then compare Meta Pseudo Labels against state-of-the-art semi-supervised learning methods on standard benchmarks such as CIFAR-10-4K, SVHN-1K, and ImageNet $10%$ . We conclude the section with experiments on the standard ResNet-50 architecture with the full ImageNet dataset.

在本节中,我们展示了小规模下元伪标签 (Meta Pseudo Labels) 的实证研究。首先通过简单的双月数据集 (TwoMoon) [7] 研究反馈机制在元伪标签中的作用,这项研究直观展示了元伪标签的行为特点和优势。随后在CIFAR-10-4K、SVHN-1K和ImageNet $10%$ 等标准基准测试中,将元伪标签与当前最先进的半监督学习方法进行对比。最后使用标准ResNet-50架构在完整ImageNet数据集上进行实验作为本节总结。

3.1. TwoMoon Experiment

3.1. TwoMoon实验

To understand the role of feedback in Meta Pseudo Labels, we conduct an experiment on the simple and classic TwoMoon dataset [7]. The 2D nature of the TwoMoon dataset allows us to visualize how Meta Pseudo Labels behaves compared to Supervised Learning and Pseudo Labels.

为了理解反馈在元伪标签(Meta Pseudo Labels)中的作用,我们在经典的双月(TwoMoon)数据集[7]上进行了实验。该数据集的二维特性使我们能够直观比较元伪标签与监督学习和伪标签的行为差异。

Dataset. For this experiment, we generate our own version of the TwoMoon dataset. In our version, there are 2,000 examples forming two clusters each with 1,000 examples. Only 6 examples are labeled, 3 examples for each cluster, while the remaining examples are unlabeled. Semi-supervised learning algorithms are asked to use these 6 labeled examples and the clustering assumption to separate the two clusters into correct classes.

数据集。在本实验中,我们生成了自研版本的TwoMoon数据集。该版本包含2,000个样本,形成两个各含1,000个样本的簇群。其中仅有6个样本被标注(每个簇群3个),其余样本均为未标注数据。半监督学习算法需利用这6个标注样本和聚类假设,将两个簇群正确划分至对应类别。

Training details. Our model architecture is a feed-forward fully-connected neural network with two hidden layers, each has 8 units. The sigmoid non-linearity is used at each layer. In Meta Pseudo Labels, both the teacher and the student share this architecture but have independent weights. All networks are trained with SGD using a constant learning rate of 0.1. The networks’ weights are initialized with the uniform distribution between -0.1 and 0.1. We do not apply any regular iz ation.

训练细节。我们的模型架构是一个前馈全连接神经网络,包含两个隐藏层,每层有8个单元。每层使用sigmoid非线性激活函数。在元伪标签(Meta Pseudo Labels)方法中,教师模型和学生模型共享该架构但具有独立权重。所有网络均采用SGD优化器进行训练,学习率恒定为0.1。网络权重初始化为-0.1至0.1之间的均匀分布。我们没有应用任何正则化措施。

Results. We randomly generate the TwoMoon dataset for a few times and repeat the three methods: Supervised Learning, Pseudo Labels, and Meta Pseudo Labels. We observe that Meta Pseudo Labels has a much higher success rate of finding the correct classifier than Supervised Learning and Pseudo Labels. Figure 2 presents a typical outcome of our experiment, where the red and green regions correspond to the class if i ers’ decisions. As can be seen from the figure, Supervised Learning finds a bad classifier which classifies the labeled instances correctly but fails to take advantage of the clustering assumption to separate the two “moons”. Pseudo Labels uses the bad classifier from Supervised Learning and hence receives incorrect pseudo labels on the unlabeled data. As a result, Pseudo Labels finds a classifier that mis classifies half of the data, including a few labeled instances. Meta Pseudo Labels, on the other hand, uses the feedback from the student model’s loss on the labeled instances to adjust the teacher to generate better pseudo labels. As a result, Meta Pseudo Labels finds a good classifier for this dataset. In other words, Meta Pseudo Labels can address the problem of confirmation bias [2] of Pseudo Labels in this experiment.

结果。我们多次随机生成双月(TwoMoon)数据集,并重复三种方法:监督学习(Supervised Learning)、伪标签(Pseudo Labels)和元伪标签(Meta Pseudo Labels)。观察到元伪标签找到正确分类器的成功率远高于监督学习和伪标签。图2展示了实验的典型结果,其中红色和绿色区域对应分类器的决策结果。如图所示,监督学习找到一个劣质分类器——虽然能正确分类带标签样本,但未能利用聚类假设分离两个"月牙"。伪标签沿用监督学习的劣质分类器,导致未标记数据获得错误伪标签,最终得到的分类器会错误分类半数数据(包括部分带标签样本)。而元伪标签通过学生模型在带标签样本上的损失反馈来调整教师模型,从而生成更优质的伪标签,最终为该数据集找到良好分类器。换言之,元伪标签在本实验中能解决伪标签的确认偏误(confirmation bias)问题[2]。

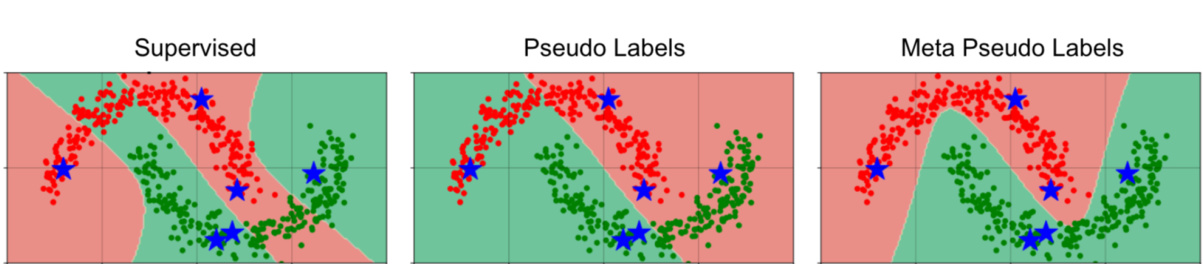

Figure 2: An illustration of the importance of feedback in Meta Pseudo Labels (right). In this example, Meta Pseudo Labels works better than Supervised Learning (left) and Pseudo Labels (middle) on the simple TwoMoon dataset. More details are in Section 3.1.

图 2: 展示反馈在元伪标签 (Meta Pseudo Labels) 中的重要性 (右图)。在这个简单的双月形 (TwoMoon) 数据集示例中,元伪标签的表现优于监督学习 (左图) 和伪标签 (中图)。更多细节见第 3.1 节。

3.2. CIFAR-10-4K, SVHN-1K, and ImageNet $10%$ Experiments

3.2. CIFAR-10-4K、SVHN-1K 和 ImageNet $10%$ 实验

Datasets. We consider three standard benchmarks: CIFAR-10-4K, SVHN-1K, and ImageNet $10%$ , which have been widely used in the literature to fairly benchmark semisupervised learning algorithms. These benchmarks were created by keeping a small fraction of the training set as labeled data while using the rest as unlabeled data. For CIFAR-10 [34], 4,000 labeled examples are kept as labeled data while 41,000 examples are used as unlabeled data. The test set for CIFAR-10 is standard and consists of 10,000 examples. For SVHN [46], 1,000 examples are used as labeled data whereas about 603,000 examples are used as unlabeled data. The test set for SVHN is also standard, and has 26,032 examples. Finally, for ImageNet [56], 128,000 examples are used as labeled data which is approximately $10%$ of the whole ImageNet training set while the rest of 1.28 million examples are used as unlabeled data. The test set for ImageNet is the standard ILSVRC 2012 version that has 50,000 examples. We use the image resolution of 32x32 for CIFAR-10 and SVHN, and $224\mathrm{x}224$ for ImageNet.

数据集。我们采用三个标准基准测试集:CIFAR-10-4K、SVHN-1K和ImageNet $10%$ ,这些数据集在文献中被广泛用于公平比较半监督学习算法。这些基准集的构建方式是保留训练集中的一小部分作为标注数据,其余部分作为未标注数据。对于CIFAR-10 [34],保留4,000个标注样本作为标注数据,同时使用41,000个样本作为未标注数据。CIFAR-10的标准测试集包含10,000个样本。对于SVHN [46],使用1,000个样本作为标注数据,约603,000个样本作为未标注数据。SVHN的标准测试集包含26,032个样本。对于ImageNet [56],使用128,000个样本作为标注数据(约占整个ImageNet训练集的 $10%$ ),其余128万样本作为未标注数据。ImageNet测试集采用标准ILSVRC 2012版本,包含50,000个样本。我们使用32x32的图像分辨率处理CIFAR-10和SVHN数据集,ImageNet则采用 $224\mathrm{x}224$ 分辨率。

Training details. In our experiments, our teacher and our student share the same architecture but have independent weights. For CIFAR-10-4K and SVHN-1K, we use a WideResNet-28-2 [84] which has 1.45 million parameters. For ImageNet, we use a ResNet-50 [24] which has 25.5 million parameters. These architectures are also commonly used by previous works in this area. During the Meta Pseudo Labels training phase where we train both the teacher and the student, we use the default hyper-parameters from previous work for all our models, except for a few modifications in Rand Augment [13] which we detail in Appendix C.2. All hyper-parameters are reported in Appendix C.4. After training both the teacher and student with Meta Pseudo Labels, we finetune the student on the labeled dataset. For this finetuning phase, we use SGD with a fixed learning rate of $10^{-5}$ and a batch size of 512, running for 2,000 steps for ImageNet $10%$ and 1,000 steps for CIFAR-10 and SVHN. Since the amount of labeled examples is limited for all three datasets, we do not use any heldout validation set. Instead, we return the model at the final checkpoint.

训练细节。在我们的实验中,教师模型和学生模型共享相同架构但具有独立权重。对于CIFAR-10-4K和SVHN-1K,我们使用具有145万个参数的WideResNet-28-2 [84]。对于ImageNet,我们使用具有2550万个参数的ResNet-50 [24]。这些架构也是该领域先前工作中常用的。在同时训练教师模型和学生模型的元伪标签训练阶段,我们为所有模型使用先前工作中的默认超参数,仅对Rand Augment [13]进行少量修改(详见附录C.2)。所有超参数报告在附录C.4中。使用元伪标签完成教师模型和学生模型训练后,我们在标注数据集上对学生模型进行微调。微调阶段使用固定学习率$10^{-5}$的SGD优化器,批大小为512,ImageNet $10%$运行2000步,CIFAR-10和SVHN运行1000步。由于三个数据集的标注样本量有限,我们没有使用任何保留验证集,而是直接返回最终检查点的模型。

Baselines. To ensure a fair comparison, we only compare Meta Pseudo Labels against methods that use the same architectures and do not compare against methods that use larger architectures such as Larger-WideResNet-28-2 and PyramidNet+ShakeDrop for CIFAR-10 and SVHN [5, 4, 72, 76], or ResNet $50\times{2,3,4}$ , ResNet-101, ResNet-152, etc. for ImageNet $10%$ [25, 23, 10, 8, 9]. We also do not compare Meta Pseudo Labels with training procedures that include self-distillation or distillation from a larger teacher [8, 9]. We enforce these restrictions on our baselines since it is known that larger architectures and distillation can improve any method, possibly including Meta Pseudo Labels.

基线方法。为确保公平比较,我们仅将元伪标签 (Meta Pseudo Labels) 与采用相同架构的方法进行对比,不比较使用更大架构的方案(例如 CIFAR-10 和 SVHN 任务中的 Larger-WideResNet-28-2 与 PyramidNet+ShakeDrop [5, 4, 72, 76],或 ImageNet 10% 任务中的 ResNet $50\times{2,3,4}$、ResNet-101、ResNet-152 等 [25, 23, 10, 8, 9])。同时排除包含自蒸馏或大教师模型蒸馏的训练流程 [8, 9]。这些限制源于以下共识:更大规模的架构和蒸馏技术可能提升所有方法(包括元伪标签)的性能。

We directly compare Meta Pseudo Labels against two baselines: Supervised Learning with full dataset and Unsupervised Data Augmentation (UDA [76]). Supervised Learning with full dataset represents the headroom because it unfairly makes use of all labeled data (e.g., for CIFAR10, it uses all 50,000 labeled examples). We also compare against UDA because our implementation of Meta Pseudo Labels uses UDA in training the teacher. Both of these baselines use the same experimental protocols and hence ensure a fair comparison. We follow [48]’s train/eval/test splitting, and we use the same amount of resources to tune hyperparameters for our baselines as well as for Meta Pseudo Labels. More details are in Appendix C.

我们直接将元伪标签 (Meta Pseudo Labels) 与两个基线方法进行比较:全数据集监督学习 (Supervised Learning with full dataset) 和无监督数据增强 (Unsupervised Data Augmentation, UDA [76])。全数据集监督学习代表了性能上限,因为它不公平地使用了所有标注数据(例如对于 CIFAR10,它使用了全部 50,000 个标注样本)。我们还与 UDA 进行比较,因为我们实现的元伪标签在训练教师模型时使用了 UDA。这两个基线方法都采用相同的实验协议,从而确保公平比较。我们遵循 [48] 的训练/验证/测试划分方式,并为基线方法和元伪标签调优超参数时使用相同量的资源。更多细节见附录 C。

Additional baselines. In addition to these two baselines, we also include a range of other semi-supervised baselines in two categories: Label Propagation and Self-Supervised. Since these methods do not share the same controlled environment, the comparison to them is not direct, and should be contextual i zed as suggested by [48]. More controlled experiments comparing Meta Pseudo Labels to other baselines

其他基线方法。除了这两个基线方法外,我们还包含了两类半监督基线方法:标签传播 (Label Propagation) 和自监督 (Self-Supervised)。由于这些方法未在相同受控环境下测试,与其对比并非直接可比,应按照 [48] 的建议进行情境化分析。更多关于元伪标签 (Meta Pseudo Labels) 与其他基线方法的受控对比实验

Table 2: Image classification accuracy on CIFAR-10-4K, SVHN-1K, and ImageNet $10%$ . Higher is better. For CIFAR-10-4K and SVHN1K, we report mean $\pm$ std over 10 runs, while for ImageNet $10%$ , we report Top-1/Top-5 accuracy of a single run. For fair comparison, we only include results that share the same model architecture: WideResNet-28-2 for CIFAR-10-4K and SVHN-1K, and ResNet-50 for ImageNet $10%$ . ∗ indicates our implementation which uses the same experimental protocols. Except for UDA, results in the first two blocks are from representative important papers, and hence do not share the same controlled environment with ours.

MethodCIFAR-10-4K (mean ± std)SVHN-1K (mean ± std)ImageNet-10% Top-1Top-5
LabelPropagationMethodsTemporal Ensemble [35]83.63 ± 0.6392.81 ± 0.27
Mean Teacher [64]84.13 ± 0.2894.35 ± 0.47
VAT + EntMin [44]86.87 ± 0.3994.65 ± 0.1983.39
LGA + VAT [30]87.94 ± 0.1993.42 ± 0.36
ICT [71]92.71 ± 0.0296.11 ± 0.04
MixMatch [5]93.76 ± 0.0696.73 ± 0.31
ReMixMatch [4]94.86 ± 0.0497.17 ± 0.30
EnAET [72]94.6597.08
FixMatch [58]95.74 ± 0.0597.72 ± 0.3871.589.1
UDA*[76]94.53 ± 0.1897.11 ± 0.1768.0788.19
Self-Supervised MethodsSimCLR [8, 9]71.790.4
MOC0v2 [10]71.1
PCL [38]85.6
PIRL [43]84.9
BYOL [21]68.889.0
MetaPseudoLabels96.11 ± 0.0798.01 ± 0.0773.8991.38
Supervised Learning with full dataset*94.92 ± 0.1797.41 ± 0.1676.8993.27

表 2: CIFAR-10-4K、SVHN-1K 和 ImageNet $10%$ 数据集上的图像分类准确率。数值越高越好。对于 CIFAR-10-4K 和 SVHN-1K,我们报告了 10 次运行的平均值 $\pm$ 标准差,而对于 ImageNet $10%$,我们报告了单次运行的 Top-1/Top-5 准确率。为了公平比较,我们仅包含使用相同模型架构的结果:CIFAR-10-4K 和 SVHN-1K 使用 WideResNet-28-2,ImageNet $10%$ 使用 ResNet-50。∗ 表示我们使用相同实验协议的实现。除 UDA 外,前两个模块的结果来自代表性重要论文,因此与我们的受控环境不同。

方法 CIFAR-10-4K (平均值 ± 标准差) SVHN-1K (平均值 ± 标准差) ImageNet-10% Top-1 Top-5
标签传播方法 Temporal Ensemble [35] 83.63 ± 0.63 92.81 ± 0.27
Mean Teacher [64] 84.13 ± 0.28 94.35 ± 0.47
VAT + EntMin [44] 86.87 ± 0.39 94.65 ± 0.19 83.39
LGA + VAT [30] 87.94 ± 0.19 93.42 ± 0.36
ICT [71] 92.71 ± 0.02 96.11 ± 0.04
MixMatch [5] 93.76 ± 0.06 96.73 ± 0.31
ReMixMatch [4] 94.86 ± 0.04 97.17 ± 0.30
EnAET [72] 94.65 97.08
FixMatch [58] 95.74 ± 0.05 97.72 ± 0.38 71.5 89.1
UDA* [76] 94.53 ± 0.18 97.11 ± 0.17 68.07 88.19
自监督方法 SimCLR [8, 9] 71.7 90.4
MOC0v2 [10] 71.1
PCL [38] 85.6
PIRL [43] 84.9
BYOL [21] 68.8 89.0
MetaPseudoLabels 96.11 ± 0.07 98.01 ± 0.07 73.89 91.38
全数据集监督学习* 94.92 ± 0.17 97.41 ± 0.16 76.89 93.27

are presented in Appendix D.

附录 D 中提供了相关内容。

Results. Table 2 presents our results with Meta Pseudo Labels in comparison with other methods. The results show that under strictly fair comparisons (as argued by [48]), Meta Pseudo Labels significantly improves over UDA. Inte rest ingly, on CIFAR-10-4K, Meta Pseudo Labels even exceeds the headroom supervised learning on full dataset. On ImageNet $10%$ , Meta Pseudo Labels outperforms the UDA teacher by more than $5%$ in top-1 accuracy, going from $68.07%$ to $73.89%$ . For ImageNet, such relative improvement is very significant.

结果。表 2 展示了 Meta Pseudo Labels 与其他方法的对比结果。结果表明,在严格公平的比较条件下 (如 [48] 所述),Meta Pseudo Labels 显著优于 UDA。有趣的是,在 CIFAR-10-4K 数据集上,Meta Pseudo Labels 甚至超过了全量数据集上的监督学习上限。在 ImageNet 10% 数据上,Meta Pseudo Labels 的 top-1 准确率比 UDA 教师模型高出 5% 以上,从 68.07% 提升至 73.89%。对于 ImageNet 而言,这样的相对提升非常显著。

Comparing to existing state-of-the-art methods. Compared to results reported from past papers, Meta Pseudo Labels has achieved the best accuracies among the same model architectures on all the three datasets: CIFAR-10- 4K, SVHN-1K, and ImageNet $10%$ . On CIFAR-10-4K and SVHN-1K, Meta Pseudo Labels leads to almost $10%$ relative error reduction compared to the highest reported baselines [58]. On ImageNet $10%$ , Meta Pseudo Labels outperforms SimCLR [8, 9] by $2.19%$ top-1 accuracy.

与现有最先进方法的比较。相较于以往论文报告的结果,Meta Pseudo Labels 在 CIFAR-10-4K、SVHN-1K 和 ImageNet $10%$ 三个数据集上均以相同模型架构取得了最佳准确率。在 CIFAR-10-4K 和 SVHN-1K 上,Meta Pseudo Labels 相比最高基线 [58] 实现了近 $10%$ 的相对错误率降低。在 ImageNet $10%$ 上,其 top-1 准确率较 SimCLR [8, 9] 高出 $2.19%$。

While better results on these datasets exist, to our knowledge, such results are all obtained with larger models, stronger regular iz ation techniques, or extra distillation procedures. For example, the best reported accuracy on CIFAR10-4K is $97.3%$ [76] but this accuracy is achieved with a PyramidNet which has $17\mathbf{x}$ more parameters than our WideResNet-28-2 and uses the complex ShakeDrop regu lari z ation [80]. On the other hand, the best reported top-1 accuracy for ImageNet $10%$ is $80.9%$ , achieved by SimCLRv2 [9] using a self-distillation training phase and a ResNet $152\times3$ which has $32\mathbf{x}$ more parameters than our ResNet-50. Such enhancements on architectures, regularization, and distillation can also be applied to Meta Pseudo Labels to further improve our results.

虽然这些数据集上存在更好的结果,但据我们所知,这些结果都是通过更大的模型、更强的正则化技术或额外的蒸馏流程获得的。例如,CIFAR10-4K上报告的最佳准确率为$97.3%$[76],但这一准确率是通过参数量比我们的WideResNet-28-2多$17\mathbf{x}$倍的PyramidNet并采用复杂的ShakeDrop正则化[80]实现的。另一方面,ImageNet $10%$上报告的最佳top-1准确率为$80.9%$,由SimCLRv2[9]通过自蒸馏训练阶段和参数量比我们的ResNet-50多$32\mathbf{x}$倍的ResNet $152\times3$达成。这些在架构、正则化和蒸馏方面的改进同样可以应用于元伪标签(Meta Pseudo Labels)方法,以进一步提升我们的结果。

3.3. ResNet-50 Experiment

3.3. ResNet-50 实验

The previous experiments show that Meta Pseudo Labels outperforms other semi-supervised learning methods on CIFAR-10-4K, SVHN-1K, and ImageNet $10%$ . In this experiment, we benchmark Meta Pseudo Labels on the entire ImageNet dataset plus unlabeled images from the JFT dataset. The purpose of this experiment is to verify if Meta Pseudo Labels works well on the widely used ResNet-50 architecture [24] before we conduct more large scale experiments on Efficient Net (Section 4).

先前实验表明,元伪标签 (Meta Pseudo Labels) 在 CIFAR-10-4K、SVHN-1K 和 ImageNet $10%$ 数据集上优于其他半监督学习方法。本实验将在完整 ImageNet 数据集及 JFT 数据集未标注图像上对元伪标签进行基准测试,旨在验证该方法能否在广泛使用的 ResNet-50 架构 [24] 上表现良好,以便后续在 Efficient Net 上开展更大规模实验 (第4节)。

Datasets. As mentioned, we experiment with all labeled examples from the ImageNet dataset. We reserve 25,000 examples from the ImageNet dataset for hyper-parameter tuning and model selection. Our test set is the ILSVRC 2012 validation set. Additionally, we take 12.8 million unlabeled images from the JFT dataset. To obtain these 12.8 million unlabeled images, we first train a ResNet-50 on the entire ImageNet training set and then use the resulting ResNet-50 to assign class probabilities to images in the JFT dataset. We then select 12,800 images of highest probability for each of the 1,000 classes of ImageNet. This selection results in 12.8 million images. We also make sure that none of the 12.8 million images that we use overlaps with the ILSVRC 2012 validation set of ImageNet. This procedure of filtering extra unlabeled data has been used by UDA [76] and Noisy Student [77].

数据集。如前所述,我们在ImageNet数据集的所有标注样本上进行实验。我们从ImageNet数据集中预留25,000个样本用于超参数调优和模型选择。测试集采用ILSVRC 2012验证集。此外,我们从JFT数据集中选取了1,280万张未标注图像。获取这些图像的具体流程是:先在完整ImageNet训练集上训练ResNet-50模型,然后用该模型为JFT数据集中的图像分配类别概率。我们为ImageNet的1,000个类别各选取概率最高的12,800张图像,最终获得1,280万张图像。同时确保这些图像与ILSVRC 2012验证集无重叠。这种筛选额外未标注数据的方法曾被UDA [76]和Noisy Student [77]采用。

Implementation details. We implement Meta Pseudo Labels the same as in Section 3.2 but we use a larger batch size and more training steps, as the datasets are much larger for this experiment. Specifically, for both the student and the teacher, we use the batch size of 4,096 for labeled images and the batch size of 32,768 for unlabeled images. We train for 500,000 steps which equals to about 160 epochs on the unlabeled dataset. After training the Meta Pseudo Labels phase on ImageNet+JFT, we finetune the resulting student on ImageNet for 10,000 SGD steps, using a fixed learning rate of $10^{-4}$ . Using 512 TPUv2 cores, our training procedure takes about 2 days.

实现细节。我们按照第3.2节的描述实现元伪标签(Meta Pseudo Labels),但由于本实验的数据集规模更大,因此采用了更大的批次量和更多训练步数。具体而言,学生模型和教师模型的标注图像批次量均为4,096,未标注图像批次量为32,768。我们训练了500,000步,相当于在未标注数据集上约160个epoch。在ImageNet+JFT上完成元伪标签阶段训练后,使用固定学习率$10^{-4}$对所得学生模型在ImageNet上进行10,000步SGD微调。整个训练过程使用512个TPUv2核心,耗时约2天。

Baselines. We compare Meta Pseudo Labels against two groups of baselines. The first group contains supervised learning methods with data augmentation or regular iz ation methods such as Auto Augment [12], DropBlock[18], and CutMix [83]. These baselines represent state-of-the-art supervised learning methods on ResNet-50. The second group of baselines consists of three recent semi-supervised learning methods that leverage the labeled training images from ImageNet and unlabeled images elsewhere. Specifically, billion-scale semi-supervised learning [79] uses unlabeled data from the YFCC100M dataset [65], while UDA [76] and Noisy Student [77] both use JFT as unlabeled data like Meta Pseudo Labels. Similar to Section 3.2, we only compare Meta Pseudo Labels to results that are obtained with ResNet-50 and without distillation.

基线方法。我们将元伪标签方法与两组基线方法进行比较。第一组包含采用数据增强或正则化方法的监督学习方法,例如 AutoAugment [12]、DropBlock [18] 和 CutMix [83]。这些基线代表了 ResNet-50 上最先进的监督学习方法。第二组基线由三种最新的半监督学习方法组成,这些方法利用了 ImageNet 的标注训练图像和其他地方的未标注图像。具体来说,十亿级半监督学习 [79] 使用了来自 YFCC100M 数据集 [65] 的未标注数据,而 UDA [76] 和 Noisy Student [77] 则与元伪标签方法一样使用 JFT 作为未标注数据。与第 3.2 节类似,我们仅将元伪标签方法与使用 ResNet-50 且未经蒸馏得到的结果进行比较。

Results. Table 3 presents the results. As can be seen from the table, Meta Pseudo Labels boosts the top-1 accuracy of ResNet-50 from $76.9%$ to $83.2%$ , which is a large margin of improvement for ImageNet, outperforming both UDA and Noisy Student. Meta Pseudo Labels also outperforms Billion-scale SSL [68, 79] in top-1 accuracy. This is particularly impressive since Billion-scale SSL pre-trains their ResNet-50 on weakly-supervised images from Instagram.

结果。表 3 展示了实验结果。从表中可以看出,Meta Pseudo Labels 将 ResNet-50 的 top-1 准确率从 $76.9%$ 提升至 $83.2%$ ,这在 ImageNet 上是一个显著的提升,表现优于 UDA 和 Noisy Student。Meta Pseudo Labels 在 top-1 准确率上也超越了 Billion-scale SSL [68, 79] 。这一结果尤其令人印象深刻,因为 Billion-scale SSL 是在 Instagram 的弱监督图像上对其 ResNet-50 进行预训练的。

Table 3: Top-1 and Top-5 accuracy of Meta Pseudo Labels and other representative supervised and semi-supervised methods on ImageNet with ResNet-50.

MethodUnlabeled ImagesAccuracy (top-1/top-5)
Supervised [24]None76.9/93.3
AutoAugment[12]None77.6/93.8
DropBlock [18]None78.4/94.2
FixRes [68]None79.1/94.6
FixRes+CutMix [83]None79.8/94.9
NoisyStudent [77]JFT78.9/94.3
UDA [76]JFT79.0/94.5
Billion-scale SSL[68, 79]YFCC82.5/96.6
MetaPseudoLabelsJFT83.2/96.5

表 3: Meta Pseudo Labels与其他代表性监督和半监督方法在ImageNet (ResNet-50)上的Top-1和Top-5准确率

方法 未标注图像 准确率 (top-1/top-5)
Supervised [24] 76.9/93.3
AutoAugment [12] 77.6/93.8
DropBlock [18] 78.4/94.2
FixRes [68] 79.1/94.6
FixRes+CutMix [83] 79.8/94.9
NoisyStudent [77] JFT 78.9/94.3
UDA [76] JFT 79.0/94.5
Billion-scale SSL [68, 79] YFCC 82.5/96.6
MetaPseudoLabels JFT 83.2/96.5

4. Large Scale Experiment: Pushing the Limits of ImageNet Accuracy

4. 大规模实验:突破ImageNet准确率极限

In this section, we scale up Meta Pseudo Labels to train on a large model and a large dataset to push the limits of ImageNet accuracy. Specifically, we use the Efficient Net-L2 architecture because it has a higher capacity than ResNets. Efficient Net-L2 was also used by Noisy Student [77] to achieve the top-1 accuracy of $88.4%$ on ImageNet.

在本节中,我们扩展元伪标签 (Meta Pseudo Labels) 方法,通过大模型和大数据集训练来突破 ImageNet 准确率的极限。具体而言,我们采用 Efficient Net-L2 架构,因其容量高于 ResNet。Noisy Student [77] 也曾使用 Efficient Net-L2 在 ImageNet 上实现 $88.4%$ 的 top-1 准确率。

Datasets. For this experiment, we use the entire ImageNet training set as labeled data, and use the JFT dataset as unlabeled data. The JFT dataset has 300 million images, and then is filtered down to 130 million images by Noisy Student using confidence thresholds and up-sampling [77]. We use the same 130 million images as Noisy Student.

数据集。本实验使用完整的ImageNet训练集作为标注数据,并使用JFT数据集作为未标注数据。JFT数据集包含3亿张图像,经Noisy Student通过置信度阈值和上采样[77]筛选后缩减至1.3亿张。我们采用与Noisy Student相同的1.3亿张图像。

Model architecture. We experiment with Efficient NetL2 since it has the state-of-the-art performance on ImageNet [77] without extra labeled data. We use the same hyper-parameters with Noisy Student, except that we use the training image resolution of $512\mathrm{x}512$ instead of $475\mathbf{x}475$ . We increase the input image resolution to be compatible with our model parallelism implementation which we discuss in the next paragraph. In addition to Efficient Net-L2, we also experiment with a smaller model, which has the same depth with Efficient Net-B6 [63] but has the width factor increased from 2.1 to 5.0. This model, termed Efficient Net-B6-Wide, has 390 million parameters. We adopt all hyper-parameters of Efficient Net-L2 for Efficient Net-B6-Wide. We find that Efficient Net-B6-Wide has almost the same performance with Efficient Net-L2, but is faster to compile and train.

模型架构。我们选用Efficient NetL2进行实验,因为它在无需额外标注数据的情况下已在ImageNet [77]上实现了最先进的性能。除将训练图像分辨率从$475\mathbf{x}475$调整为$512\mathrm{x}512$外,其余超参数均与Noisy Student保持一致。提升输入分辨率是为了适配我们将在下一段讨论的模型并行实现方案。除Efficient Net-L2外,我们还测试了一个缩小版模型:该模型保持Efficient Net-B6 [63]的深度不变,但将宽度因子从2.1提升至5.0。这个被命名为Efficient Net-B6-Wide的模型包含3.9亿参数,其超参数设置完全继承自Efficient Net-L2。实验表明,Efficient Net-B6-Wide在性能上与Efficient Net-L2几乎持平,但具有更快的编译和训练速度。

Model parallelism. Due to the memory footprint of our networks, keeping two such networks in memory for the teacher and the student would vastly exceed the available memory of our accelerators. We thus design a hybrid modeldata parallelism framework to run Meta Pseudo Labels. Specifically, our training process runs on a cluster of 2,048 TPUv3 cores. We divide these cores into 128 identical replicas to run with standard data parallelism with synchronized gradients. Within each replica, which runs on $2{,}048/128{=}16$ cores, we implement two types of model parallelism. First, each input image of resolution $512\mathrm{x}512$ is split along the width dimension into 16 patches of equal size $512\mathbf{x}32$ and is distributed to 16 cores to process. Note that we choose the input resolution of $512\mathrm{x}512$ because 512 is close to the resolution $475\mathrm{x}475$ used by Noisy Student and 512 keeps the dimensions of the network’s intermediate outputs divisible by 16. Second, each weight tensor is also split equally into 16 parts that are assigned to the 16 cores. We implement our hybrid data-model parallelism in the XLA-Sharding framework [37]. With this parallelism, we can fit a batch size of 2,048 labeled images and 16,384 unlabeled images into each training step. We train the model for 1 million steps in total, which takes about 11 days for Efficient Net-L2 and 10 days for Efficient Net-B6-Wide. After finishing the Meta Pseudo Labels training phase, we finetune the models on our labeled dataset for 20,000 steps. Details of the finetuning procedures are in Appendix C.4.

模型并行。由于我们网络的内存占用较大,同时在内存中保存教师和学生两个网络会远超加速器的可用内存容量。为此,我们设计了混合模型-数据并行框架来运行元伪标签 (Meta Pseudo Labels)。具体而言,训练过程运行在由2,048个TPUv3核心组成的集群上,将这些核心划分为128个相同副本,通过标准数据并行配合梯度同步进行运算。每个副本运行在$2{,}048/128{=}16$个核心上,内部采用两种模型并行方式:首先将每张$512\mathrm{x}512$分辨率的输入图像沿宽度维度分割为16个$512\mathbf{x}32$的等大分块,分配到16个核心处理(选择512分辨率是因为其接近Noisy Student采用的$475\mathrm{x}475$,且能保持网络中间输出维度被16整除);其次将每个权重张量也均分为16份分配到对应核心。该混合并行方案通过XLA-Sharding框架[37]实现,使得每训练步能处理2,048张标注图像和16,384张未标注图像。模型共训练100万步,其中Efficient Net-L2耗时约11天,Efficient Net-B6-Wide耗时10天。完成元伪标签训练阶段后,我们在标注数据集上对模型进行20,000步微调,具体流程详见附录C.4。

Table 4: Top-1 and Top-5 accuracy of Meta Pseudo Labels and previous state-of-the-art methods on ImageNet. With Efficient Net-L2 and Efficient Net-B6-Wide, Meta Pseudo Labels achieves an improvement of $1.6%$ on top of the state-of-the-art [16], despite the fact that the latter uses 300 million labeled training examples from JFT.

Method#ParamsExtra DataImageNetImageNet-ReaL [6] Precision@1
Top-1Top-5
ResNet-50 [24]26M76.093.082.94
ResNet-152 [24]60M77.893.884.79
DenseNet-264 [28]34M77.993.9
Inception-v3 [62]24M78.894.483.58
Xception [11]23M79.094.5
Inception-v4 [61]48M80.095.0
Inception-resnet-v2 [61]56M80.195.1
ResNeXt-101 [78]84M80.995.685.18
PolyNet [87]92M81.395.8
SENet [27]146M82.796.2
NASNet-A [90]89M82.796.282.56
AmoebaNet-A [52]87M82.896.1
PNASNet [39]86M82.996.2
AmoebaNet-C + AutoAugment [12]155M83.596.5
GPipe [29]557M84.397.0
EfficientNet-B7 [63]66M85.097.2
EfficientNet-B7 + FixRes [70]66M85.397.4
EfficientNet-L2 [63]480M85.597.5
ResNet-50 Billion-scale SSL [79]26M3.5B labeled Instagram81.296.0
ResNeXt-101 Billion-scale SSL[79]193M3.5B labeled Instagram84.8
ResNeXt-101 WSL [42]829M3.5B labeled Instagram85.497.688.19
FixRes ResNeXt-101 WSL [69]829M3.5B labeled Instagram86.498.089.73
Big Transfer (BiT-L) [33]928M300M labeled JFT87.598.590.54
Noisy Student (EfficientNet-L2) [77]480M300M unlabeledJFT88.498.790.55
Noisy Student + FixRes [70]480M300M unlabeled JFT88.598.7
Vision Transformer (ViT-H) [14]632M300MlabeledJFT88.5590.72
EfficientNet-L2-NoisyStudent + SAM [16]480M300M unlabeled JFT88.698.6
Meta Pseudo Labels (EfficientNet-B6-Wide)390M300M unlabeled JFT90.098.791.12
Meta Pseudo Labels (EfficientNet-L2)480M300M unlabeled JFT90.298.891.02

表 4: Meta Pseudo Labels与先前最先进方法在ImageNet上的Top-1和Top-5准确率对比。使用Efficient Net-L2和Efficient Net-B6-Wide时,Meta Pseudo Labels在现有最高水平[16]的基础上提升了$1.6%$,尽管后者使用了来自JFT的3亿标注训练样本。

方法 参数量 额外数据 ImageNet Top-1 ImageNet Top-5 ImageNet-ReaL [6] Precision@1
ResNet-50 [24] 26M - 76.0 93.0 82.94
ResNet-152 [24] 60M - 77.8 93.8 84.79
DenseNet-264 [28] 34M - 77.9 93.9 -
Inception-v3 [62] 24M - 78.8 94.4 83.58
Xception [11] 23M - 79.0 94.5 -
Inception-v4 [61] 48M - 80.0 95.0 -
Inception-resnet-v2 [61] 56M - 80.1 95.1 -
ResNeXt-101 [78] 84M - 80.9 95.6 85.18
PolyNet [87] 92M - 81.3 95.8 -
SENet [27] 146M - 82.7 96.2 -
NASNet-A [90] 89M - 82.7 96.2 82.56
AmoebaNet-A [52] 87M - 82.8 96.1 -
PNASNet [39] 86M - 82.9 96.2 -
AmoebaNet-C + AutoAugment [12] 155M - 83.5 96.5 -
GPipe [29] 557M - 84.3 97.0 -
EfficientNet-B7 [63] 66M - 85.0 97.2 -
EfficientNet-B7 + FixRes [70] 66M - 85.3 97.4 -
EfficientNet-L2 [63] 480M - 85.5 97.5 -
ResNet-50 Billion-scale SSL [79] 26M 35亿标注Instagram 81.2 96.0 -
ResNeXt-101 Billion-scale SSL[79] 193M 35亿标注Instagram 84.8 - -
ResNeXt-101 WSL [42] 829M 35亿标注Instagram 85.4 97.6 88.19
FixRes ResNeXt-101 WSL [69] 829M 35亿标注Instagram 86.4 98.0 89.73
Big Transfer (BiT-L) [33] 928M 3亿标注JFT 87.5 98.5 90.54
Noisy Student (EfficientNet-L2) [77] 480M 3亿未标注JFT 88.4 98.7 90.55
Noisy Student + FixRes [70] 480M 3亿未标注JFT 88.5 98.7 -
Vision Transformer (ViT-H) [14] 632M 3亿标注JFT 88.55 - 90.72
EfficientNet-L2-NoisyStudent + SAM [16] 480M 3亿未标注JFT 88.6 98.6 -
Meta Pseudo Labels (EfficientNet-B6-Wide) 390M 3亿未标注JFT 90.0 98.7 91.12
Meta Pseudo Labels (EfficientNet-L2) 480M 3亿未标注JFT 90.2 98.8 91.02

Results. Our results are presented in Table 4. From the table, it can be seen that Meta Pseudo Labels achieves $90.2%$ top-1 accuracy on ImageNet, which is a new state-of-the-art on this dataset. This result is $1.8%$ better than the same Efficient Net-L2 architecture trained with Noisy Student [77] and FixRes [69, 70]. Meta Pseudo Labels also outperforms the recent results by BiT-L [33] and the previous state-of-theart by Vision Transformer [14]. The important contrast here is that both Bit-L and Vision Transformer pre-train on 300 million labeled images from JFT, while our method only uses unlabeled images from this dataset. At this level of accuracy, our gain of $1.6%$ over [16] is a very significant margin of improvement compared to recent gains. For instance, the gain of Vision Transformer [14] over Noisy Student $^+$ FixRes was only $0.05%$ , and the gain of FixRes over Noisy Student was only $0.1%$ .

结果。我们的实验结果如表 4 所示。从表中可以看出,元伪标签 (Meta Pseudo Labels) 在 ImageNet 上实现了 90.2% 的 top-1 准确率,这是该数据集上的最新最优结果。这一结果比采用 Noisy Student [77] 和 FixRes [69, 70] 训练的相同 Efficient Net-L2 架构高出 1.8%。元伪标签的表现也优于 BiT-L [33] 的最新结果和 Vision Transformer [14] 之前的最优结果。这里的关键对比在于,BiT-L 和 Vision Transformer 都在 JFT 的 3 亿张标注图像上进行了预训练,而我们的方法仅使用了该数据集的未标注图像。在此准确率水平上,我们相比 [16] 取得的 1.6% 提升幅度,与近期其他改进相比具有显著优势。例如,Vision Transformer [14] 相比 Noisy Student$^+$FixRes 仅提升了 0.05%,而 FixRes 相比 Noisy Student 仅提升了 0.1%。

Finally, to verify that our model does not simply overfit to the ImageNet ILSVRC 2012 validation set, we test it on the ImageNet-ReaL test set [6]. On this test set, our model also works well and achieves $91.02%$ Precision $@1$ which is $0.4%$ better than Vision Transformer [14]. This gap is also bigger than the gap between Vision Transformer and Noisy Student which is only $0.17%$ .

最后,为了验证我们的模型不会简单地过拟合ImageNet ILSVRC 2012验证集,我们在ImageNet-ReaL测试集[6]上进行了测试。在该测试集上,我们的模型同样表现优异,取得了91.02%的Precision@1,比Vision Transformer[14]高出0.4%。这一差距也大于Vision Transformer与Noisy Student之间仅0.17%的差距。

A lite version of Meta Pseudo Labels. Given the expensive training cost of Meta Pseudo Labels, we design a lite version of Meta Pseudo Labels, termed Reduced Meta Pseudo Labels. We describe this lite version in Appendix E, where we achieve $86.9%$ top-1 accuracy on the ImageNet ILSRVC 2012 validation set with Eff i cent Net-B7. To avoid using proprietary data like JFT, we use the ImageNet training set as labeled data and the YFCC100M dataset [65] as unlabeled data. Reduced Meta Pseudo Labels allows us to implement the feedback mechanism of Meta Pseudo Labels while avoiding the need to keep two networks in memory.

Meta Pseudo Labels的轻量版。鉴于Meta Pseudo Labels训练成本高昂,我们设计了其轻量版本,称为Reduced Meta Pseudo Labels。附录E详细描述了该版本,使用Efficient Net-B7在ImageNet ILSRVC 2012验证集上实现了86.9%的top-1准确率。为避免使用JFT等专有数据,我们采用ImageNet训练集作为标注数据,YFCC100M数据集[65]作为无标注数据。Reduced Meta Pseudo Labels能在内存中仅保留单个网络的情况下,实现Meta Pseudo Labels的反馈机制。

5. Related Works

5. 相关工作

Pseudo Labels. The method of Pseudo Labels, also known as self-training, is a simple Semi-Supervised Learning (SSL) approach that has been successfully applied to improve the state-of-the-art of many tasks, such as: image classification [79, 77], object detection, semantic segmentation [89], machine translation [22], and speech recognition [31, 49]. Vanilla Pseudo Labels methods keep a pre-trained teacher fixed during the student’s learning, leading to a confirmation bias [2] when the pseudo labels are inaccurate. Unlike vanilla Pseudo Labels, Meta Pseudo Labels continues to adapt the teacher to improve the student’s performance on a labeled dataset. This extra adaptation allows the teacher to generate better pseudo labels to teach the student as shown in our experiments.

伪标签 (Pseudo Labels)。伪标签方法,也称为自训练 (self-training),是一种简单的半监督学习 (Semi-Supervised Learning, SSL) 方法,已成功应用于提升许多任务的最先进水平,例如:图像分类 [79, 77]、目标检测、语义分割 [89]、机器翻译 [22] 和语音识别 [31, 49]。传统伪标签方法在学生模型学习期间保持预训练的教师模型固定,当伪标签不准确时会导致确认偏差 (confirmation bias) [2]。与传统的伪标签不同,元伪标签 (Meta Pseudo Labels) 持续调整教师模型,以提升学生在带标签数据集上的表现。如我们的实验所示,这种额外的调整使教师模型能够生成更好的伪标签来指导学生模型。

Other SSL approaches. Other typical SSL methods often train a single model by optimizing an objective function that combines a supervised loss on labeled data and an unsupervised loss on unlabeled data. The supervised loss is often the cross-entropy computed on the labeled data. Meanwhile, the unsupervised loss is typically either a selfsupervised loss or a label propagation loss. Self-supervised losses typically encourage the model to develop a common sense about images, such as in-painting [50], solving jigsaw puzzles [47], predicting the rotation angle [19], contrastive prediction [25, 10, 8, 9, 38], or bootstrap ing the latent space [21]. On the other hand, label propagation losses typically enforce that the model is invariant against certain transformations of the data such as data augmentations, adversarial attacks, or proximity in the latent space [35, 64, 44, 5, 76, 30, 71, 58, 32, 51, 20]. Meta Pseudo Labels is distinct from the aforementioned SSL methods in two notable ways. First, the student in Meta Pseudo Labels never learns directly from labeled data, which helps to avoid over fitting, especially when labeled data is limited. Second, the signal that the teacher in Meta Pseudo Labels receives from the student’s performance on labeled data is a novel way of utilizing labeled data.

其他SSL方法。典型的SSL方法通常通过优化一个结合了标注数据监督损失和无标注数据无监督损失的目标函数来训练单一模型。监督损失通常是标注数据上的交叉熵计算。而无监督损失通常是自监督损失或标签传播损失。自监督损失通常鼓励模型建立对图像的常识性理解,例如图像修复[50]、拼图求解[47]、旋转角度预测[19]、对比预测[25,10,8,9,38]或潜在空间自举[21]。另一方面,标签传播损失通常强制模型对数据的某些变换保持不变性,例如数据增强、对抗攻击或潜在空间中的邻近性[35,64,44,5,76,30,71,58,32,51,20]。元伪标签(Meta Pseudo Labels)与上述SSL方法有两个显著区别:首先,元伪标签中的学生模型从不直接从标注数据中学习,这有助于避免过拟合(尤其在标注数据有限时);其次,教师模型通过学生在标注数据上的表现获得的反馈信号,是利用标注数据的一种创新方式。

Knowledge Distillation and Label Smoothing. The teacher in Meta Pseudo Labels uses its softmax predictions on unlabeled data to teach the student. These softmax predictions are generally called the soft labels, which have been widely utilized in the literature on knowledge distillation [26, 17, 86]. Outside the line of work on distillation, manually designed soft labels, such as label smoothing [45] and temperature sharpening or dampening [76, 77], have also been shown to improve models’ generalization. Both of these methods can be seen as adjusting the labels of the training examples to improve optimization and generalization. Similar to other SSL methods, these adjustments do not receive any feedback from the student’s performance as proposed in this paper. An experiment comparing Meta Pseudo Labels to Label Smoothing is presented in Appendix D.2.

知识蒸馏与标签平滑。Meta Pseudo Labels中的教师模型通过未标注数据的softmax预测来指导学生模型,这类预测通常被称为软标签,在知识蒸馏领域[26, 17, 86]已被广泛采用。除蒸馏技术外,人工设计的软标签方法(如标签平滑[45])以及温度锐化/软化技术[76, 77]也被证实能提升模型泛化能力。这些方法均可视为通过调整训练样本的标签来优化模型训练与泛化性能。与其他自监督学习(SSL)方法类似,此类调整并未像本文提出的方法那样接收来自学生模型表现的反馈。附录D.2展示了Meta Pseudo Labels与标签平滑的对比实验。

Bi-level optimization algorithms. We use Meta in our method name because our technique of deriving the teacher’s update rule from the student’s feedback is based on a bi-level optimization problem which appears frequently in the literature of meta-learning. Similar bi-level optimization problems have been proposed to optimize a model’s learning process, such as learning the learning rate schedule [3], designing architectures [40], correcting wrong training labels [88], generating training examples [59], and re-weighting training data [73, 74, 54, 53]. Meta Pseudo Labels uses the same bi-level optimization technique in this line of work to derive the teacher’s gradient from the student’s feedback. The difference between Meta Pseudo Labels and these methods is that Meta Pseudo Labels applies the bi-level optimization technique to improve the pseudo labels generated by the teacher model.

双层优化算法。我们在方法名称中使用"Meta"一词,是因为我们通过学生反馈推导教师更新规则的技术基于一个在元学习(meta-learning)文献中频繁出现的双层优化问题。类似的双层优化问题已被提出用于优化模型的学习过程,例如学习学习率调度[3]、设计架构[40]、修正错误训练标签[88]、生成训练样本[59]以及重新加权训练数据[73, 74, 54, 53]。Meta Pseudo Labels在这类工作中采用相同的双层优化技术,从学生反馈中推导教师梯度。Meta Pseudo Labels与这些方法的区别在于,它应用双层优化技术来改进教师模型生成的伪标签。

6. Conclusion

6. 结论

In this paper, we proposed the Meta Pseudo Labels method for semi-supervised learning. Key to Meta Pseudo Labels is the idea that the teacher learns from the student’s feedback to generate pseudo labels in a way that best helps student’s learning. The learning process in Meta Pseudo

本文提出了一种用于半监督学习的元伪标签 (Meta Pseudo Labels) 方法。该方法的核心思想是:教师模型通过接收学生模型的反馈来生成最有利于学生学习的伪标签。Meta Pseudo Labels 的学习过程

Labels consists of two main updates: updating the student based on the pseudo labeled data produced by the teacher and updating the teacher based on the student’s performance. Experiments on standard low-resource benchmarks such as CIFAR-10-4K, SVHN-1K, and ImageNet $10%$ show that Meta Pseudo Labels is better than many existing semisupervised learning methods. Meta Pseudo Labels also scales well to large problems, attaining $90.2%$ top-1 accuracy on ImageNet, which is $1.6%$ better than the previous state-of-the-art [16]. The consistent gains confirm the benefit of the student’s feedback to the teacher.

标签包含两个主要更新:基于教师生成的伪标签数据更新学生模型,以及基于学生表现更新教师模型。在CIFAR-10-4K、SVHN-1K和ImageNet $10%$ 等标准低资源基准测试上的实验表明,元伪标签 (Meta Pseudo Labels) 优于许多现有的半监督学习方法。该方法还能很好地扩展到大规模问题,在ImageNet上实现了 $90.2%$ 的top-1准确率,比之前的最先进水平 [16] 提高了 $1.6%$ 。持续的性能提升证实了学生反馈对教师模型的益处。

Acknowledgements

致谢

The authors wish to thank Rohan Anil, Frank Chen, Wang Tao for their help with many technical issues in running our experiments. We also thank David Berthelot, Nicholas Carlini, Sylvain Gelly, Geoff Hinton, Mohammad Norouzi, and Colin Raffel for their comments on earlier drafts of the paper, and others in the Google Brain Team for their support throughout this very long project.

作者感谢Rohan Anil、Frank Chen、王涛在实验运行中提供的技术支持,同时感谢David Berthelot、Nicholas Carlini、Sylvain Gelly、Geoff Hinton、Mohammad Norouzi和Colin Raffel对论文初稿的审阅建议,以及Google Brain团队在这个漫长项目中给予的持续支持。

Jaime Carbonell has also advised us on removing the data loading bottleneck for the ResNets model ImageNet. His advice helped a lot when we did not have enough spare TPUs for our ResNet jobs. He will be deeply remembered.

Jaime Carbonell 还就如何消除 ResNets 模型在 ImageNet 上的数据加载瓶颈为我们提供了建议。在我们没有足够空闲 TPU 运行 ResNet 任务时,他的建议给予了极大帮助。我们将永远铭记他。

References

参考文献

A. Derivation of the Teacher’s Update Rule

A. 教师更新规则的推导

In this section, we present the detailed derivation of the teacher’s update rule in Section 2.

在本节中,我们将详细推导第2节中教师模型的更新规则。

Mathematical Notations and Conventions. Since we will work with the chain rule, we use the standard Jacobian notations.3 tShpee J cia fic co abl i lay,n fmora tar idxi foffe ,n twi ah bol see f du in mc tei no sni $f:\mathbb{R}^{m}\rightarrow\mathbb{R}^{n}$ , dadnitdi ofnora lla y,v ewcthoern $x\in\mathbb{R}^{m}$ ,t iwone tuhsee Jtahceo nbioatant ioof na $\textstyle{\frac{\partial f}{\partial x}}\in\mathbb{R}^{n\times m}$ tt om duel t ni opt lee $f$ $n\times m$ $f$ points such as x1 and x2, we will use the notations of ∂∂fx $\scriptstyle{\frac{\partial f}{\partial x}}{\bigg|}{x=x_{1}}$ and ∂f $\scriptstyle{\frac{\partial f}{\partial x}}{\bigg|}{x=x_{2}}$

数学符号与约定。由于我们将使用链式法则,因此采用标准雅可比矩阵表示法。对于可微函数 $f:\mathbb{R}^{m}\rightarrow\mathbb{R}^{n}$ 和向量 $x\in\mathbb{R}^{m}$ ,我们使用雅可比矩阵记号 $\textstyle{\frac{\partial f}{\partial x}}\in\mathbb{R}^{n\times m}$ 表示 $f$ 的 $n\times m$ 导数矩阵。对于特定点如x1和x2处的偏导,将采用记号 $\scriptstyle{\frac{\partial f}{\partial x}}{\bigg|}{x=x_{1}}$ 和 $\scriptstyle{\frac{\partial f}{\partial x}}{\bigg|}{x=x_{2}}$ 。

Furthermore, by mathematical conventions, a vector $v\in\mathbb{R}^{n}$ is treate d as a column matrix – that is, a matrix of size $n\times1$ . For this reason, the gradient vector of a multi-variable real-valued function is actually the transpose of of its Jacobian matrix. Finally, all multiplications in this section are standard matrix multiplications. If an operand is a vector, then the operand is treated as a column matrix.

此外,按照数学惯例,向量 $v\in\mathbb{R}^{n}$ 被视为列矩阵——即大小为 $n\times1$ 的矩阵。因此,多变量实值函数的梯度向量实际上是其雅可比矩阵的转置。最后,本节中所有乘法均为标准矩阵乘法。若操作数为向量,则将其视为列矩阵处理。

Dimension Annotations. Understanding that these notations and conventions might cause confusions, in the derivation below, we annotate the dimensions of the computed quantities to ensure that there is no confusion caused to our readers. To this end, we respectively use $|S|$ and $|T|$ to denote the dimensions of the parameters $\theta_{S},\theta_{T}$ . That is, $\theta_{S}\in\mathbb{R}^{|S|\times1}$ and θT R|T |×1.

维度标注。考虑到这些符号和约定可能引起混淆,在下文的推导中,我们对计算量的维度进行标注,以确保不会给读者造成困惑。为此,我们分别使用 $|S|$ 和 $|T|$ 表示参数 $\theta_{S},\theta_{T}$ 的维度。即 $\theta_{S}\in\mathbb{R}^{|S|\times1}$ 和 $\theta_{T}\in\mathbb{R}^{|T|\times1}$。

We now present the derivation. Suppose that on a batch of unlabeled examples $x_{u}$ , the teacher samples the pseudo labels $\widehat{y}{u}\sim T(x_{u};\theta_{T})$ and the student uses $(x_{u},\widehat{y}{u})$ to update its parameter $
