OmniVec2 - A Novel Transformer based Network for Large Scale Multimodal and Multitask Learning

OmniVec2 - 一种基于Transformer的新型大规模多模态多任务学习网络

Abstract

摘要

We present a novel multimodal multitask network and associated training algorithm. The method is capable of ingesting data from approximately 12 different modalities namely image, video, audio, text, depth, point cloud, time series, tabular, graph, X-ray, infrared, IMU, and hyperspectral. The proposed approach utilizes modality specialized tokenizers, a shared transformer architecture, and cross-attention mechanisms to project the data from different modalities into a unified embedding space. It addresses multimodal and multitask scenarios by incorporating modality-specific task heads for different tasks in respective modalities. We propose a novel pre training strategy with iterative modality switching to initialize the network, and a training algorithm which trades off fully joint training over all modalities, with training on pairs of modalities at a time. We provide comprehensive evaluation across 25 datasets from 12 modalities and show state of the art performances, demonstrating the effectiveness of the proposed architecture, pre training strategy and adapted multitask training.

我们提出了一种新颖的多模态多任务网络及配套训练算法。该方法能够处理约12种不同模态的数据，包括图像、视频、音频、文本、深度、点云、时间序列、表格、图结构、X光、红外、惯性测量单元(IMU)和高光谱数据。该方案采用模态专用分词器、共享Transformer架构和交叉注意力机制，将不同模态数据映射到统一嵌入空间。通过为各模态中的不同任务配备专用任务头，实现了多模态与多任务场景的协同处理。我们提出了一种基于迭代模态切换的新型预训练策略来初始化网络，并设计了一种权衡所有模态联合训练与两两模态交替训练的训练算法。通过对12种模态的25个数据集进行全面评估，我们展示了最先进的性能表现，验证了所提架构、预训练策略和自适应多任务训练方法的有效性。

across various modalities, potentially reducing the need for extensive labeling in specific modalities for particular tasks.

跨多种模态，有望减少特定任务中对单一模态大量标注的需求。

In the present work, we extend such line of research and propose a multimodal multitask method which learns embeddings in a shared space across different modalities and then employs task specific sub-networks for solving specific tasks in specific modalities. The method utilizes a common transformer based bottleneck block to map the input to embeddings in a shared space, thus incorporating knowledge from multiple tasks associated with different respective modalities. This structure leads to learning of very robust representations informed and regularized by all tasks and modalities together. The embeddings are then used by the task heads to make required predictions.

在本研究中，我们拓展了此类研究方向，提出一种多模态多任务方法：该方法通过共享空间学习跨模态嵌入表示，并采用任务专用子网络处理特定模态的特定任务。该方法利用基于Transformer的通用瓶颈模块将输入映射至共享嵌入空间，从而整合来自不同模态关联任务的多源知识。这种结构促使学习过程受到所有任务和模态的共同约束与信息共享，最终形成高度鲁棒的表征。任务头随后利用这些嵌入表示进行所需预测。

1. Introduction

1. 引言

Extracting meaningful representations from data is a central task in machine learning. Majority of the approaches proposed are usually specialized for specific modalities and tasks. The development of methods capable of handling multiple modalities, in a holistic way, has been an active topic of research recently [21, 34, 35, 45, 63, 105]. Multi task learning has a large body of literature [10], but has been traditionally limited to tasks from single modality. Learning a unified network that trains shared parameters across diverse tasks in different modalities, like image, video, depth maps, audio, has been shown to be more robust and give better generalization and reduce over fitting to a single task or modality [1, 24] cf. unimodal networks. Such joint learning also enables more efficient use of available labeled data

从数据中提取有意义的表征是机器学习的核心任务。大多数现有方法通常针对特定模态和任务专门设计。近年来，能够以整体方式处理多模态的方法开发已成为活跃的研究课题 [21, 34, 35, 45, 63, 105]。多任务学习已有大量文献 [10]，但传统上局限于单一模态的任务。研究表明，与单模态网络相比，学习一个跨图像、视频、深度图、音频等不同模态多样任务训练共享参数的统一网络更具鲁棒性，能提供更好的泛化能力，并减少对单一任务或模态的过拟合 [1, 24]。这种联合学习还能更高效地利用现有标注数据

Previous research in generalized multimodal learning falls into three main categories. First, there are methods that process multiple heterogeneous modalities such as images, 3D, and audio, directly without using separate encoders for each modality, learning representations directly from these inputs [34, 35]. Second, some approaches use modality specific encoders and then learn generalized embeddings, for data from each modality, based on a unified objective in the latent space [5]. Third, there are methods focused on knowledge sharing across different modalities, employing either a single common encoder [21] or distinct encoders for each modality [1]. Our work aligns more closely with the third type of approaches, while incorporating elements from the first. We employ modality specific tokenizers and encoders, and have a bottleneck shared transformer backbone. Token iz ation is tailored to each modality, drawing inspiration from the Uni-Perceiver model but with key modifications detailed in Sec. 3. After token iz ation, transformer based network is used to obtain initial representations for the modalities which are passed through fully connected layers and then fused together with cross attention module. The fused representation then passes through the transformer backbone. The features from the transformer are then individually fused with original modality features using cross attention and are in turn fed to the modality specific task head.

广义多模态学习的前人研究主要分为三类。第一类方法直接处理图像、3D和音频等多种异构模态，无需为每种模态单独设计编码器，直接从输入数据中学习表征 [34, 35]。第二类方法采用模态专用编码器，然后在潜在空间基于统一目标为各模态数据学习通用嵌入 [5]。第三类方法专注于跨模态知识共享，采用单一公共编码器 [21] 或为各模态设计独立编码器 [1]。我们的工作更接近第三类方法，同时融合了第一类方法的要素：采用模态专用分词器（tokenizer）和编码器，并共享一个Transformer骨干瓶颈结构。分词方案受Uni-Perceiver模型启发但进行了关键改进（详见第3节），经分词后使用基于Transformer的网络获取各模态初始表征，通过全连接层后由交叉注意力模块进行融合。融合表征经Transformer骨干处理后，其输出特征通过交叉注意力与原始模态特征逐项融合，最终输入至各模态专用任务头。

The training procedure involves a dual-stage masked pre training and a full task based loss optimization. The first stage of masked pre training is the standard unsupervised masked pre-training with one modality at a time. The second state masked pre training involves masked pretraining with pairs of modalities at a time, employing a two stream setup as shown in Fig. 1. In this stage two modalities are used together, tokens are randomly masked and the full network is used to predict the masked tokens using the unmasked tokens for both modalities together. This allows for knowledge sharing across all modalities as the training proceeds by randomly sampling training batches from two modalities from all modalities. The final training step is then training for multiple tasks for different modalities. This is done similar to the second stage of masked pretraining, i.e. pairs of modalities are sampled, and a pair of tasks are sampled, one from each modality. Training batches are then constructed, half each from the two modality-task pairs. These are then used to optimize standard losses corresponding to the tasks, e.g. cross entropy for classification and ell_{2} loss for pixelwise prediction. The pre training and final task training using pairs of modalities is the key component of the training strategy, that enables the cross modal knowledge sharing across all modalities together, which we discuss more in the following.

训练过程包括双阶段掩码预训练和基于任务的全损失优化。第一阶段掩码预训练是标准的单模态无监督掩码预训练。第二阶段掩码预训练则采用双模态对进行掩码预训练，如图1所示的双流设置。在此阶段，两种模态共同使用，随机掩码token，并利用两种模态未掩码的token通过完整网络预测被掩码的token。通过从所有模态中随机采样两种模态的训练批次，这种方式实现了跨模态知识共享。最终训练步骤是针对不同模态的多个任务进行训练，其方式类似于第二阶段掩码预训练，即采样模态对和任务对（每个模态各一个任务），随后构建训练批次（两种模态-任务对各占一半），用于优化与任务对应的标准损失函数，例如分类任务的交叉熵和像素级预测任务的ell_{2}损失。采用模态对进行预训练和最终任务训练是该训练策略的核心，它实现了所有模态间的跨模态知识共享，我们将在下文进一步讨论。

In summary, the contributions of the work are as follows. (i) We propose a multimodal multitask network based on transformer architectures with modality specific tokenizers, shared backbone, and task specific heads. (ii) We provide comprehensive empirical results on 25 benchmark datasets over 12 distinct modalities i.e. text, image, point cloud, audio and video along with applications to X-Ray, infrared, hyper spectral, IMU, graph, tabular, and time-series data. The method achieves better or close to state of the art performances on these datasets. (iii) We propose a novel multimodal pre training approach that alternates between a pair of modalities to enable crossmodal knowledge sharing. (iv) We propose a multimodal and multitask supervised training approach to leverage knowledge sharing between modalities for robust learning, simplifying the complex processes proposed in previous works on modality integration, e.g. [45, 94].

总结而言，本工作的贡献如下。(i) 我们提出了一种基于Transformer架构的多模态多任务网络，包含模态特定分词器、共享主干网络和任务特定头部。(ii) 我们在12种不同模态(包括文本、图像、点云、音频、视频以及X射线、红外、高光谱、IMU、图结构、表格和时间序列数据)的25个基准数据集上提供了全面的实证结果。该方法在这些数据集上达到或接近最先进性能。(iii) 我们提出了一种新颖的多模态预训练方法，通过在模态对之间交替训练实现跨模态知识共享。(iv) 我们提出了一种多模态多任务监督训练方法，利用模态间的知识共享实现鲁棒学习，简化了先前工作中模态整合的复杂流程[45, 94]。

2. Related Works

2. 相关工作

In this section, we discuss similar works and various similar paradigms to our work.

在本节中，我们讨论与本研究相关的类似工作和各种相似范式。

Multi-modal methods. Contemporary multi-modal methods predominantly employ modality-specific feature encoders [2, 36, 37, 63, 85], focusing on fusion techniques within their architectural designs. These networks usually vary across modalities, necessitating architectural modifications for combined usage. They must address challenges related to feature fusion timing, fine-tuning, and pre-training etc. [87]. Such complexities restrict the adaptability of universal frameworks like transformers for diverse domains, including point clouds, audio, and images.

多模态方法。当前的多模态方法主要采用特定模态的特征编码器 [2, 36, 37, 63, 85]，其架构设计侧重于融合技术。这些网络通常因模态而异，需要调整架构以实现联合使用。它们必须解决特征融合时机、微调和预训练等挑战 [87]。此类复杂性限制了 Transformer 等通用框架在点云、音频和图像等多样化领域的适应性。

Common network for multiple modalities. A growing body of research aims to learn from multiple modalities without modality-specific encoders [5, 7, 21, 35]. Notably, architectures like the perceiver [7, 34, 35] employ crossattention among latent queries to process multiple modalities together. The hierarchical perceiver [7] expands on this by structuring the input while maintaining locality. Other approaches, such as data2vec [5], use modality-specific encoders. Omnivore [21], with a common encoder, is limited to visual modalities only. Contrarily, VATT [1] employs a unified transformer backbone but processes each modality independently. These multi-modal methods have demonstrated enhanced robustness [1, 24].

多模态通用网络。越来越多的研究致力于无需特定模态编码器即可从多模态数据中学习 [5, 7, 21, 35]。值得注意的是，像感知器 (perceiver) [7, 34, 35] 这样的架构利用潜在查询之间的交叉注意力来共同处理多种模态。分层感知器 [7] 通过结构化输入同时保持局部性，对此进行了扩展。其他方法如 data2vec [5] 则使用特定模态编码器。Omnivore [21] 虽然采用通用编码器，但仅限于视觉模态。相反，VATT [1] 采用统一的 Transformer 主干网络，但独立处理每种模态。这些多模态方法已展现出更强的鲁棒性 [1, 24]。

Multi-task learning. As explored in the preceding section, there has been a surge in methods that process multiple modalities. Perceive rIO[34] extends the capabilities of Perceiver [35] to facilitate learning multiple tasks with a singular network architecture. Although Perceive rIO is capable of multitasking, often separate networks are employed [98]. Various techniques [5, 11, 21, 32, 59] learn from raw representations of multiple modalities and are applicable to numerous tasks.

多任务学习。如前一节所述，处理多模态的方法激增。PerceiverIO[34]扩展了Perceiver[35]的能力，以促进使用单一网络架构学习多个任务。尽管PerceiverIO能够多任务处理，但通常仍会使用单独的网络[98]。多种技术[5, 11, 21, 32, 59]从多模态的原始表示中学习，并适用于众多任务。

Multi-modal masked pre training. Approaches such as [50, 79, 88] implement masked pre-training. This technique has proven beneficial for improving the performance of deep networks across different modalities and tasks[1, 4, 5, 20, 28, 95].

多模态掩码预训练。[50, 79, 88]等方法采用了掩码预训练技术。该技术已被证明能有效提升深度网络在不同模态和任务中的性能[1, 4, 5, 20, 28, 95]。

Comparison to similar works. We draw motivations from Uni Perceive r [105], MetaFormer [16] and OmniVec [68]. Unlike Uni Perceive r line of methods, we do not use a unified task head definition, while similar to it we use task specific task heads. This allows our method to learn more robust and leverage fine details from each task depending upon the complexity of the tasks, which is important as each modality has distinct definition of complexity. For ex., in vision task, classification is a relatively simpler task as compared to segmentation, as segmentation tasks enforces networks to learn pixel level attention and learning better neighbourhood relationships [27, 69]. Further, MetaFormer uses unified tokenizers, and instead, we utilize modality specific tokenizers. Our experiments indicate that modality specific tokenizers perform better than MetaFormer’s unified tokenizer when training on multiple modalities. Further, OmniVec uses separate encoders for each modaity, that makes the network heavy and computationally expensive. In contrast, we use modality specific tokenizers with a shared backbone. Additionally, unlike other works, we train on multiple modalities in a multi task manner, allowing the network to learn from multiple modalities with varying task complexities simultaneously.

与同类工作的比较。我们的灵感来源于UniPerceiver [105]、MetaFormer [16]和OmniVec [68]。与UniPerceiver系列方法不同，我们未采用统一的任务头定义，但与其相似的是，我们使用了任务特定的任务头。这使得我们的方法能够根据任务复杂度，从每个任务中学习更鲁棒的特征并利用细微差异，这一点至关重要，因为每种模态对复杂度的定义各不相同。例如，在视觉任务中，分类相比分割是相对简单的任务，因为分割任务迫使网络学习像素级注意力并建立更好的邻域关系 [27, 69]。此外，MetaFormer采用统一的tokenizer，而我们则使用模态特定的tokenizer。实验表明，在多模态训练时，模态特定的tokenizer性能优于MetaFormer的统一tokenizer。再者，OmniVec为每种模态使用独立的编码器，导致网络庞大且计算成本高昂。相比之下，我们在共享主干网络上使用模态特定的tokenizer。另外，与其他工作不同，我们以多任务方式训练多模态数据，使网络能够同时从具有不同任务复杂度的多模态数据中学习。

3. Approach

3. 方法

Overview. We are interested in multimodal multitask learning. Say we have modalities indexed by min[1,M] , and each modality has T tasks indexed by tin[1,T] . Note that here we assume same number of tasks for all modalities for notational convenience, in practice different modalities would have different number of tasks. Examples of modality and their tasks could be classification into categories for point cloud modality, and dense pixel wise segmentation in image modality. We are interested in jointly learning classifiers phi_{m t}(cdot|theta_{m t}) which take inputs x_{m} from modality m and make predictions for task t , with theta_{m t} being the respective parameters. We assume that the learning is to happen by loss minimization where ell_{m t}(cdot) denotes the loss for task t on modality m . Examples of such losses are cross entropy loss for classification tasks, and ell_{2} loss for dense image prediction tasks such as image segmentation. We would like to solve the following optimization.

概述。我们关注的是多模态多任务学习。假设我们有以min[1,M]为索引的模态，每个模态有T个以tin[1,T]为索引的任务。请注意，为了符号方便，这里我们假设所有模态的任务数量相同，但实际上不同模态会有不同数量的任务。模态及其任务的例子可以是点云模态的分类任务和图像模态的密集像素级分割任务。我们关注的是联合学习分类器phi_{m t}(cdot|theta_{m t})，它们接收来自模态m的输入x_{m}并对任务t进行预测，其中theta_{m t}是相应的参数。我们假设学习是通过损失最小化进行的，其中ell_{m t}(cdot)表示模态m上任务t的损失。这类损失的例子包括分类任务的交叉熵损失和密集图像预测任务（如图像分割）的ell_{2}损失。我们希望解决以下优化问题。

//
Theta^{}=operatorname{min}{Theta}sum{m,t}ell{m t}(mathcal{T}{m t}),

//

where Theta={theta_{m t}|m,t} are the parameters of all the pre- dictors, and tau_{m t} is the training set provided for task t of modality m . This is the extension of multiple task learning to multiple modalities as well.

其中 Theta={theta_{m t}|m,t} 是所有预测器的参数集合，tau_{m t} 是为模态 m 的任务 t 提供的训练集。这是将多任务学习扩展到多模态的延伸。

We present a network and associated unsupervised pretraining and supervised training algorithm for the above task of multimodal multitask learning. The network consists of Mtimes T modality specific tokenizers, followed by common feature transformation and feature fusion networks built with transformers, with cross attention modules in between, denoted by f(cdot),g(cdot) in Fig. 1. The final part of the network are Mtimes T task specific prediction heads, denoted by h_{m t}(cdot) for task t on modality m , which provide the final outputs for the tasks. At inference the prediction function is the composition of the three functions, i.e. phi(x)~=~h_{m t}circ gcirc f(x) where x is the tokenized form of the input. While training, we sample a pair of modalities from all the available modalities, and then sample one task each for the sampled modalities. We then construct training batch, half from each sampled task. Once the tokenization is done, the features x_{i},x_{j} are passed into the first feature transformation subnetwork to obtain f(x_{i}),f(x_{j}) . These are then passed through the cross attention module to fuse them together. The fused features are then input to the second part of the network, i.e. g(cdot) . The output hat{x}_{i j}=gcircmathcal{A}(f(x_{i}),f(x_{j})) , where mathcal{A}(cdot) is the cross attention function, is then again fused with the respective input features x_{i},x_{j} . These features, i.e. mathcal{A}(hat{x}_{i j},x_{i}),mathcal{A}(hat{x}_{i j},x_{j}) are then fed to the task predictors h_{i q} and h_{j r} , to obtain the final predictions for task q,r on modalities i,j respectively. The sum of losses ell_{i q}+ell_{j r} are then minimized for the current batch by back propagation. Thus the learning proceeds by optimizing pairs of losses at a time, to stochastic ally minimize the sum over all the losses.

我们提出了一种网络及相关的无监督预训练和有监督训练算法，用于上述多模态多任务学习任务。该网络包含 Mtimes T 个模态特定分词器，随后是由Transformer构建的通用特征转换和特征融合网络，中间穿插交叉注意力模块(如图1中的 f(cdot),g(cdot) )。网络最后部分是 Mtimes T 个任务特定预测头(对于模态 m 上的任务 t 记为 h_{m t}(cdot) )，为各任务提供最终输出。推理时预测函数是三个函数的组合，即 phi(x)~=~h_{m t}circ gcirc f(x) ，其中 x 是输入的token化形式。

训练时，我们从所有可用模态中采样一对模态，然后为每个采样模态各采样一个任务。接着构建训练批次，每个采样任务各占一半。完成token化后，特征 x_{i},x_{j} 被传入第一个特征转换子网络得到 f(x_{i}),f(x_{j}) ，然后通过交叉注意力模块进行融合。融合后的特征输入网络第二部分 g(cdot) 。输出 hat{x}_{i j}=gcircmathcal{A}(f(x_{i}),f(x_{j})) (其中 mathcal{A}(cdot) 是交叉注意力函数)会再次与各自输入特征 x_{i},x_{j} 融合。这些特征 mathcal{A}(hat{x}_{i j},x_{i}),mathcal{A}(hat{x}_{i j},x_{j}) 随后被送入任务预测器 h_{i q} 和 h_{j r} ，分别获得模态 i,j 上任务 q,r 的最终预测。通过反向传播最小化当前批次的损失总和 ell_{i q}+ell_{j r} 。因此学习过程通过每次优化一对损失，随机最小化所有损失的总和来实现。

Along with the supervised multimodal joint training explained above, the learning also consists of two stages of unsupervised masked pre training with the first stage being unimodal and the second stage being multimodal pre training, to achieve knowledge sharing between tasks and modalities leading to regularized and robust predictors. We now present each of the components and the full training algorithm in detail.

除了上述有监督的多模态联合训练外，学习过程还包括两个阶段的无监督掩码预训练：第一阶段为单模态预训练，第二阶段为多模态预训练。这种设计旨在实现任务与模态间的知识共享，从而得到正则化且鲁棒的预测器。下面我们将详细阐述各组件及完整训练算法。

3.1. Network components

3.1. 网络组件

We now go through the network components sequentially from input to output.

我们现在按从输入到输出的顺序依次介绍网络组件。

Tokenizers. Each modality is tokenized using a modality specific tokenizer. The tokenizers are similar to those used in Uni-Perceiver [45], however, instead of attaching an embedding to the tokens, we provide transformer with one type of modality at a time. Further, Uni-Perceiver utilizes a combination of tokens from multiple modalities passed to a single transformer. This limits the Uni-perceiver to a limited set of modalities, i.e. text, image and videos. However, our method does not suffer from any such limitation. The details of specific tokenizers for the different modalities are provided in Supplementary.

Tokenizer。每种模态都使用特定的Tokenizer进行处理。这些Tokenizer与Uni-Perceiver [45] 中使用的类似，但我们不会为Token附加嵌入向量，而是每次仅向Transformer提供一种模态类型。此外，Uni-Perceiver会将来自多种模态的Token组合后输入单个Transformer，这限制了其仅能处理特定模态（如文本、图像和视频）。而我们的方法不受此类限制。不同模态的具体Tokenizer细节详见补充材料。

Feature transformation network. Once the features are tokenized, they are then passed through a transformer network. While the method can utilize any transformer backbone, in the current implementation we use a transformer based on BERT [13]. Here, the multi head attention involves standard self-attention [76], and GeLU [30] activation prior to the MLP layer. The output from the transformer network is passed to a fully connected neural network with three fully connected layers with ReLU activation. This transformer network along with the fully connected layers is denoted a f(cdot) in Fig. 1. The network could be used without the fully connected layers—we added the fully connected layers to reduce the dimensions of the features so that the computational complexity of the remaining part of the network could be reduced.

特征转换网络。特征被转换为token后，会输入到一个transformer网络中。虽然该方法可以使用任何transformer主干网络，但在当前实现中我们采用了基于BERT [13]的transformer。其中多头注意力机制采用标准自注意力[76]，并在MLP层前使用GeLU [30]激活函数。transformer网络的输出会传入一个具有三个全连接层的神经网络，这些层使用ReLU激活函数。如图1所示，该transformer网络与全连接层共同表示为f(cdot)。网络可以不使用全连接层运行——我们添加全连接层是为了降低特征维度，从而减少网络剩余部分的计算复杂度。

Mixing features with cross attention. When training, we fuse the features from the two transformer streams, corresponding to two modalities, with cross attention module. The output fused features are then passed to another transformer network, denoted a g(cdot) in Fig. 1. The architecture of the transformer network is same as the transformers used in feature transformation network.

通过交叉注意力机制融合特征。训练时，我们通过交叉注意力模块将来自两种模态的两个Transformer流的特征进行融合。随后，这些融合后的特征被传递到另一个Transformer网络（在图1中表示为g(cdot)）。该Transformer网络的架构与特征转换网络中使用的Transformer相同。

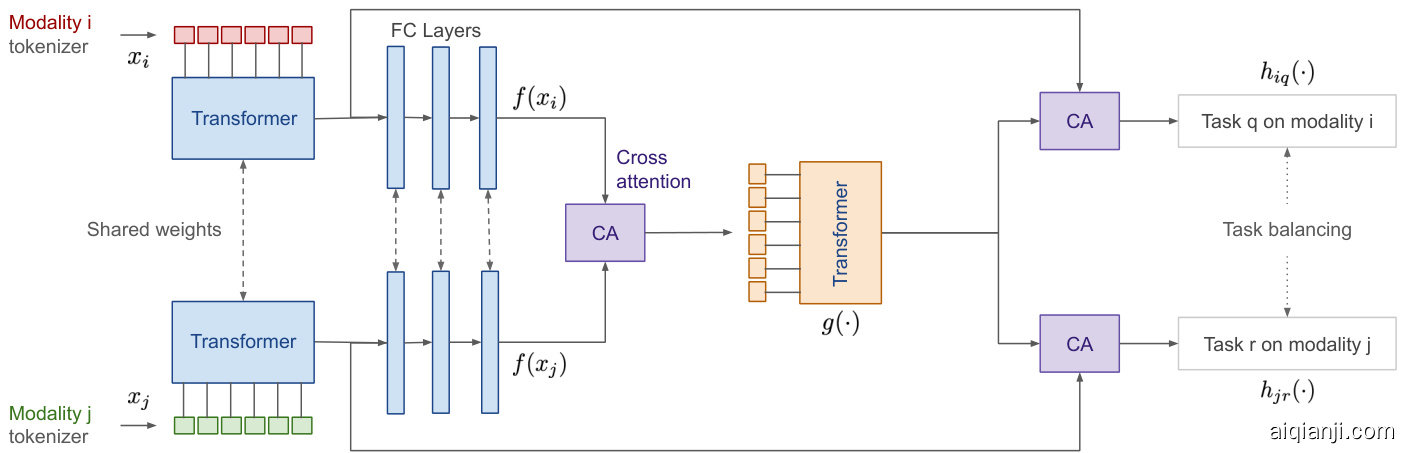

Figure 1. Overview of the proposed method. The proposed method consists of three parts, the feature transformation network f(cdot) which consists of a transformer followed by fully connected layers to reduce feature dimensions, another transformer g(cdot) and finally the task prediction heads h_{m t}(cdot) for task t on modality m . The input data is tokenized with corresponding modality specific tokenizer. While training, pairs of modalities are used and the features are fused between the two modalities using cross attention layers, in a two stream configuration as shown here. While making prediction, the network is a single stream with cross attention layers removed, and the output is h_{m t}circ gcirc f(x) where _x is the output of the corresponding modality specific tokenizer.

图 1: 所提方法概述。该方法包含三个部分：特征转换网络 f(cdot) (由Transformer和全连接层组成以降低特征维度)、另一个Transformer g(cdot)，以及针对模态 m 上任务 t 的任务预测头 h_{m t}(cdot)。输入数据通过对应模态的特定分词器进行Token化处理。训练时采用模态对，并通过交叉注意力层在双流配置中实现模态间特征融合（如图所示）。预测时网络为单流结构（移除交叉注意力层），输出为 h_{m t}circ gcirc f(x)，其中 _x 是对应模态特定分词器的输出。

Modality and task specific heads. The part of the network are the modality and task specific heads, denoted a h_{m t}(cdot) in Fig. 1. These task heads take as input, features from respective modality streams fused with features from the above network, fused with cross attention module. The task heads consist of a vanilla ViT-Tiny networks [82].

模态与任务特定头部。网络中的这一部分是指模态与任务特定的头部，在图 1 中表示为 h_{m t}(cdot)。这些任务头部接收来自各自模态流的特征输入，这些特征与上述网络的特征通过交叉注意力模块融合。任务头部由一个标准的 ViT-Tiny 网络 [82] 构成。

3.2. Training

3.2. 训练

The training is done in three steps: (i) masked pre training iterating over modalities but doing masked prediction with one modality at a time, (ii) multimodal masked pre training where two modalities are simultaneously used to do masked prediction for each, and (iii) finally supervised task based training.

训练分为三个步骤：(i) 掩码预训练 (masked pre-training)，迭代处理不同模态，但每次仅对一个模态进行掩码预测；(ii) 多模态掩码预训练 (multimodal masked pre-training)，同时使用两种模态分别进行掩码预测；(iii) 最后进行基于监督任务的训练。

Stage 1 masked pre training. The first step in training is self supervised pre training of the transformer in the feature transformation network. We follow earlier works [1, 20, 68] and add a decoder for predicting masked tokens. Specifically, for an input modality with P patches, we randomly mask P_{m} patches, and feed non-masked patches and their positions to an encoder network attached in addition to the feature transformer. Further, we iterate between modalities while keeping the transformer network common, so that it learns to work with all modalities. Once this stage is complete we discard the decoder added, and keep only the encoder transformer.

阶段1：掩码预训练。训练的第一步是对特征转换网络中的Transformer进行自监督预训练。我们遵循先前的研究[1, 20, 68]，添加了一个用于预测掩码Token的解码器。具体来说，对于包含P个补丁的输入模态，我们随机掩码P_{m}个补丁，并将未掩码的补丁及其位置输入到附加于特征Transformer的编码器网络中。此外，我们在保持Transformer网络通用的同时，在模态之间进行迭代，使其学会处理所有模态。此阶段完成后，我们将丢弃添加的解码器，仅保留编码器Transformer。

Stage 2 masked pre training. We engage the full network, except the task specific prediction heads. We take two inputs from two different modalities and pass them through the network till just before the task prediction heads. Instead of task prediction heads we add decoders to predict the masked tokens for respective input modalities. This process involves decoding the modalities in parallel, utilizing the outputs from the cross-attention modules and the modalityspecific feature vectors. This alternating approach is key to achieving effective multimodal masked pre training. Here also, we randomly mask tokens for both the modalities. Task balancing is not employed in this pre training stage. Such a multi task multi modality approach allows us to utilize unpaired data across modalities. As in stage 1 pretraining, once this stage of training is finished, we discard the decoders added and keep the trained network f,g .

阶段2：掩码预训练。我们启用整个网络（除任务特定的预测头外），从两种不同模态各取一个输入，让它们通过网络直至任务预测头之前。在此阶段，我们移除预测头并添加解码器，用于预测各自输入模态中被掩码的token。该过程通过并行解码模态实现，同时利用交叉注意力模块的输出和模态特定特征向量。这种交替式训练是实现高效多模态掩码预训练的关键。本阶段同样会对两种模态的token进行随机掩码，且不采用任务平衡策略。这种多任务多模态方法使我们能够利用跨模态的非配对数据。与阶段1预训练相同，本阶段训练完成后，我们会移除新增的解码器，仅保留训练好的网络f,g。

3.2.1 Multimodal multitask supervised training

3.2.1 多模态多任务监督训练

In the final part of the training, we train for two tasks at a time from two different modalities. This lets up stochastically minimize the loss function in Eq. 1, but minimizing sum of two losses at a time instead of minimizing the sum of all of them. When we use two modalities, we use the network as shown in Fig. 1 in a two stream configuration. With the two modality features being fused together in the middle, passed through a transformer g(cdot) and then fused back with themselves, before finally being input to the task prediction heads. Such fusion of the the features from two modalities leads to knowledge sharing between the tasks of different modalies and makes the learning robust and regularized.

在训练的最后阶段，我们同时针对来自两种不同模态的任务进行训练。这种方法让我们能够随机最小化公式1中的损失函数，但每次只最小化两个损失的总和，而非所有损失的总和。当使用两种模态时，我们采用如图1所示的双流配置网络结构：两种模态特征在中间层融合，通过Transformer模块g(cdot)处理后重新与自身特征融合，最终输入任务预测头。这种跨模态特征融合机制实现了不同模态任务间的知识共享，使学习过程更具鲁棒性和正则化效果。

Given the varying complexities of these task pairs, as underscored in previous research [17], we found it essential to balance the complexity of tasks in a multitask learning setting. Hence, the we train while employing standard task balancing techniques. We adjust the loss magnitude for each task based on its convergence rate. As our ablation studies will demonstrate, this approach allows for random pairing of modalities, in contrast to the need for selecting specific pairs as suggested in prior works [45, 68, 94, 105]. We give details of such task balancing in the Supplementary material.

鉴于这些任务对的复杂度各不相同，正如先前研究[17]所强调的，我们发现有必要在多任务学习环境中平衡任务的复杂度。因此，我们在训练时采用了标准的任务平衡技术，根据每个任务的收敛速度调整其损失幅度。如消融研究所示，这种方法允许随机配对模态，而无需像先前工作[45, 68, 94, 105]建议的那样选择特定配对。我们在补充材料中提供了此类任务平衡的详细说明。

3.2.2 Masked pre training for different modalities

3.2.2 面向多模态的掩码预训练

We use the best practices when pre training with different modalities, following existing works. We use image, video, text, audio and 3D point clouds modalities for masked pretraining. We employ a consistent masking approach across visual and auditory modalities. We follow [65] for textual data, utilizing random sentence permutation [90]. We designate a fraction f of tokens for prediction, following the 8:1:1 token masking ratio of BERT [13]. Our primary goal is to reduce the discrepancy between the input and the outputs of the decoder. For inputs such as images, videos, point clouds, and audio spec tro grams, we aim to minimize the ell_{2} distance between the predicted and actual target patches. Normalization to zero mean and unit variance is applied to visual inputs. For textual data, we utilize the permuted language modeling objective of XLNet [90].

我们采用不同模态进行预训练时遵循现有研究的最佳实践，使用图像、视频、文本、音频和3D点云模态进行掩码预训练。在视觉与听觉模态中采用统一的掩码策略，文本数据遵循[65]的随机句子置换方法[90]。按照BERT[13]的8:1:1 token掩码比例，设定预测token的比例为f。核心目标是减小解码器输出与输入间的差异，对图像、视频、点云和音频频谱图等输入，我们最小化预测块与实际目标块间的ell_{2}距离。视觉输入进行零均值单位方差归一化，文本数据采用XLNet[90]的置换语言建模目标。

3.2.3 Inference

3.2.3 推理

When doing prediction, the network is used as a single stream without the cross attention layers in Fig. 1. The input data is tokenized with the tokenizer for its modality, passed through the feature transformation network f(cdot) followed by the second transformer g(cdot) , and finally input to the task prediction head h_{m t}(cdot) , i.e. the full forward pass is h_{m t}circ gcirc f(x) where x is the output of the tokenizer.

在进行预测时，网络作为单一流使用，不包含图1中的交叉注意力层。输入数据通过对应模态的分词器 (tokenizer) 进行分词，经过特征转换网络 f(cdot) 和第二层Transformer g(cdot)，最终输入任务预测头 h_{mt}(cdot)。完整前向传播过程为 h_{mt}circ gcirc f(x)，其中 x 是分词器的输出。

4. Experimental results

4. 实验结果

Masked pre training. We use AudioSet (audio) [19], Something-Something v2 (SSv2) (video) [25], English Wikipedia (text), ImageNet1K (image) [12], SUN RGB-D (depth maps) [66], ModelNet40 (3D point cloud) [84] for pre training the network. For Stage 1 of masked pre training (Sec. 3.2), we use the samples from the training set of the respective datasets. For Stage 2 of masked pre training, we randomly select two modalities, and sample data from them to pretrain the full network. Further, we randomly mask patches. For image, video and audio, we mask $95% of the patches. For point cloud and text, we mask 90% and 95% of the patches respectively. We perform pre training for 3000 epochs. We use fraction f as 5% .

掩码预训练。我们使用AudioSet (音频) [19]、Something-Something v2 (SSv2) (视频) [25]、英文维基百科 (文本)、ImageNet1K (图像) [12]、SUN RGB-D (深度图) [66]、ModelNet40 (3D点云) [84] 进行网络预训练。在掩码预训练的第一阶段 (第3.2节)，我们使用各数据集训练集中的样本。在掩码预训练的第二阶段，我们随机选择两种模态，并从中采样数据以预训练整个网络。此外，我们随机掩码补丁。对于图像、视频和音频，我们掩码95%的补丁。对于点云和文本，我们分别掩码90%和95%的补丁。我们进行了3000个周期的预训练。使用分数f为5%。

Downstream tasks. We train the model on downstream tasks and report results. The datasets used for single modality methods are i Naturalist-2018 [75] (Image Recognition), Places-365 [100] (Scene Recognition), Kinetics-400 [38] (Video Action Recognition), Moments in Time [53] (Video Action Recognition), ESC50 [57] (Audio Event Classification), S3DIS [3] (3D point cloud segmentation), Dialogue

下游任务。我们在下游任务上训练模型并报告结果。单模态方法使用的数据集包括iNaturalist-2018 [75]（图像识别）、Places-365 [100]（场景识别）、Kinetics-400 [38]（视频动作识别）、Moments in Time [53]（视频动作识别）、ESC50 [57]（音频事件分类）、S3DIS [3]（3D点云分割）、Dialogue

SUM [9] (Text sum mari z ation).

SUM [9] (文本摘要)

Adaptation on unseen datasets. To assess our method’s adaptability to datasets not seen at training, we report comparisons with image classification on Oxford-IIIT Pets [56], action recognition in videos using UCF-101 [67] and HMDB51 [41], 3D point cloud classification on ScanObjectNN [74], point cloud segmentation with NYU v2 seg [64], text sum mari z ation using the SamSum dataset [22]. As the number of classes and labels differ in each dataset as compared to the datasets used during pre training, we randomly sample $10%$ data from each of the training set. Further, we extract the embeddings using the pretrained network, and train two fully connected layers with task specific loss functions. This allows us to demonstrate the ability of the proposed method to generate embeddings which can generalize across datasets.

在未见数据集上的适应性。为评估我们的方法对训练时未见数据集的适应能力，我们报告了以下对比实验：牛津-IIIT宠物数据集[56]上的图像分类、UCF-101[67]和HMDB51[41]视频动作识别、ScanObjectNN[74]的3D点云分类、NYU v2 seg[64]点云分割、以及SamSum数据集[22]的文本摘要。由于每个数据集的类别数和标签与预训练所用数据集不同，我们从每个训练集中随机采样$10%$的数据。此外，我们使用预训练网络提取嵌入(embedding)，并通过两个全连接层配合任务特定损失函数进行训练。这证明了所提方法生成的嵌入具有跨数据集泛化能力。

Cross domain generalization. We follow prior work [1] and evaluate on video-text retrieval on two benchmark datasets i.e. YouCook2 [104], and MSR-VTT [86], for multiple modalities.

跨领域泛化。我们遵循先前工作[1]，在YouCook2[104]和MSR-VTT[86]两个基准数据集上针对多模态进行视频-文本检索评估。

Adaptation on unseen modalities. We also evaluate our method on unseen modalities. Specifically, we evaluate our method on the following (i) X-Ray scan, and hyper spectral data recognition, where we utilize the RegDB [54], Chest X-Ray [62], and Indian Pine datasets1. (ii) Time-series forecasting, where our experiments are based on the ETTh1 [103], Traffic2, Weather3, and Exchange datasets [42]. (iii) Graph understanding through the PCQM4M-LSC dataset [33], which comprises 4.4 million organic molecules with quantum-mechanical properties, focusing on predicting molecular properties with applications in drug discovery and material science. (iv)Tabular analysis, where we engage with the adult and bank marketing datasets from the UCI repository 4, (v) IMU recognition, where we conduct experiments on IMU sensor clas- sification using the Ego4D dataset [26], assessing the capability to understand inertial motion systems. We follow [16] for the train test splits and evaluation metrics on these datasets. Further, we use modality specific tokenizers and follow similar network settings as for generalization on unseen datasets.

对未见模态的适应性。我们还在未见模态上评估了我们的方法，具体包括：(i) X光扫描和高光谱数据识别，使用了RegDB [54]、Chest X-Ray [62]和Indian Pine数据集；(ii) 时间序列预测，实验基于ETTh1 [103]、Traffic、Weather和Exchange数据集 [42]；(iii) 通过PCQM4M-LSC数据集 [33]进行图理解，该数据集包含440万个具有量子力学特性的有机分子，重点预测分子特性，应用于药物发现和材料科学；(iv) 表格分析，使用了UCI存储库中的adult和bank marketing数据集；(v) IMU识别，利用Ego4D数据集 [26]进行IMU传感器分类实验，评估理解惯性运动系统的能力。我们遵循[16]的方法进行训练测试划分和评估指标。此外，我们使用模态特定的分词器，并采用与未见数据集泛化类似的网络设置。

We provide more details on the tokenizers used for each modality, description of task heads, and formulations of loss functions in the supplementary material.

我们在补充材料中提供了关于每种模态使用的分词器 (tokenizer)、任务头描述以及损失函数公式的更多细节。

Table 1. i Naturalist-2018 and Places365 top-1 accuracy.

Method/Dataset	iN2018	P365
Omni-MAE[20]	78.1	59.4
Omnivore [21]	84.1	59.9
EfficientNetB8[71]	81.3	58.6
MAE[29]	86.8
MetaFormer[94]	87.5	60.7
InternImage[77]	92.6	61.2
OmniVec[68]	93.8	63.5
Ours	94.6	65.1

表 1: iNaturalist-2018 和 Places365 的 top-1 准确率。

方法/数据集	iN2018	P365
Omni-MAE [20]	78.1	59.4
Omnivore [21]	84.1	59.9
EfficientNetB8 [71]	81.3	58.6
MAE [29]	86.8
MetaFormer [94]	87.5	60.7
InternImage [77]	92.6	61.2
OmniVec [68]	93.8	63.5
Ours	94.6	65.1

Table 2. Kinetics-400 top-1 accuracy.

Method K400
Omnivore [21]	84.1 82.1
VATT [1] Uniformerv2[46]	90.0
InternVideo[78]	91.1
TubeViT[58]	90.9
OmniVec[68]	91.1
Ours	93.6

表 2: Kinetics-400 top-1 准确率

方法	K400
Omnivore [21]	84.1 82.1
VATT [1] Uniformerv2[46]	90.0
InternVideo[78]	91.1
TubeViT[58]	90.9
OmniVec[68]	91.1
Ours	93.6

Table 3. Moments in time top-1 accuracy.

Method	MIT
VATT [1]	41.1
Uniformerv2[46]	47.8
CoCa[93]	47.4
CoCa-finetuned[93]	49.0
OmniVec[68]	49.8
Ours	53.1

表 3: Moments in time top-1 准确率。

方法	MIT
VATT [1]	41.1
Uniformerv2 [46]	47.8
CoCa [93]	47.4
CoCa-finetuned [93]	49.0
OmniVec [68]	49.8
Ours	53.1

Table 4. ESC50 top-1 accuracy.

Method	ESC50
AST [23]	85.7
EAT-M[18]	96.3
HTS-AT[8]	97.0
BEATs[55]	98.1
OmniVec[68]	98.4
Ours	99.1

表 4: ESC50 top-1 准确率

方法	ESC50
AST [23]	85.7
EAT-M [18]	96.3
HTS-AT [8]	97.0
BEATs [55]	98.1
OmniVec [68]	98.4
我们的方法	99.1

Table 5. ModelNet40-C Error Rate.

Method	MN40C
PointNet++[60]	0.236
DGCN+PCM-R[97]	0.173
PCT+RSMIx[44]	0.173
PCT+PCM-R[70]	0.163
OmniVec[68]	0.156
Ours	0.142

表 5: ModelNet40-C 错误率

方法	MN40C
PointNet++[60]	0.236
DGCN+PCM-R[97]	0.173
PCT+RSMIx[44]	0.173
PCT+PCM-R[70]	0.163
OmniVec[68]	0.156
Ours	0.142

Table 6. Stanford Indoor Dataset mIoU.

Method	S3DIS
PointTransformer+CBL[72]	71.6
StratifiedTransformer[43]	72.0
PTv2[83]	72.6
Swin3D[89]	74.5
OmniVec[68]	75.9
Ours	77.1

表 6: Stanford Indoor 数据集 mIoU。

方法	S3DIS
PointTransformer+CBL [72]	71.6
StratifiedTransformer [43]	72.0
PTv2 [83]	72.6
Swin3D [89]	74.5
OmniVec [68]	75.9
Ours	77.1

Table 7. Dialogue SUM text sum mari z ation ROGUE scores.

Method	R-1	R-2	R-L	B-S
CODS[81]	44.27	17.90	36.98	70.49
SICK[39]	46.2	20.39	40.83	71.32
OmniVec[68]	46.91	21.22	40.19	71.91
Ours	47.6	22.1	41.4	72.8

表 7: 对话摘要文本汇总 ROUGE 分数。

方法	R-1	R-2	R-L	B-S
CODS[81]	44.27	17.90	36.98	70.49
SICK[39]	46.2	20.39	40.83	71.32
OmniVec[68]	46.91	21.22	40.19	71.91
Ours	47.6	22.1	41.4	72.8

4.1. Comparison with state of the art methods

4.1. 与现有最优方法的比较

We performed masked pre training followed by training on multiple modalities and task groups as described in Section 3 for comparing with existing methods. We discuss the comparison on each modality below.

我们按照第3节所述进行了掩码预训练，随后针对多种模态和任务组进行训练，以便与现有方法进行比较。下面我们将逐一讨论各模态的对比结果。

Image. Table 1 shows state of the art on i Naturalist 2018 and Places 365 datasets. On the i Naturalist 2018 dataset, our method achieves a top-1 accuracy of 94.6% , surpassing notable contenders such as OmniVec (93.8%) , MetaFormer (87.5%) , and MAE (86.8%) . This superior accuracy demonstrates capability of the proposed method in accurately recognizing a diverse range of natural species. In the context of the Places 365 dataset, our method achieves an accuracy of 65.1% , notably outperforming OmniVec (63.5%) , and significantly surpassing MetaFormer’s 60.7% and Omnivore’s 59.9% . The substantial margin of improvement, particularly in the challenging and variable environment of Places 365, underscores the robustness and adaptability of the proposed architecture. We also conduct experiments on ImageNet [12] (classification), MSCOCO [49] (object detection), and ADE-20K [101] (semantic segmentation) datasets (detailed table is in supplementary). 89.3% (accuracy) on ImageNet, 60.1 (AP) on MSCOCO and an mIoU of 58.5 on ADE-20K.

图像。表 1 展示了在 iNaturalist 2018 和 Places 365 数据集上的最新成果。在 iNaturalist 2018 数据集上，我们的方法实现了 94.6% 的 top-1 准确率，超越了 OmniVec (93.8%)、MetaFormer (87.5%) 和 MAE (86.8%) 等知名竞争者。这一卓越的准确率证明了所提方法在准确识别多种自然物种方面的能力。在 Places 365 数据集中，我们的方法取得了 65.1% 的准确率，显著优于 OmniVec (63.5%)，并大幅超越 MetaFormer 的 60.7% 和 Omnivore 的 59.9%。这种显著的性能提升，尤其是在具有挑战性和多变性的 Places 365 环境中，凸显了所提架构的鲁棒性和适应性。我们还在 ImageNet [12] (分类)、MSCOCO [49] (目标检测) 和 ADE-20K [101] (语义分割) 数据集上进行了实验 (详细表格见补充材料)，在 ImageNet 上达到 89.3% (准确率)，MSCOCO 上 AP 为 60.1，ADE-20K 上 mIoU 为 58.5。

Video. Table 2 and Table 3 show comparison against state of the art methods on Kinetics-400 and Moments in Time datasets.We observe that we outperform all the competing methods on both the datasets achieving top-1 accuracy of 93.6% and 53.1% respectively.

视频。表2和表3展示了在Kinetics-400和Moments in Time数据集上与现有最优方法的对比结果。我们观察到，在这两个数据集上我们的方法均优于所有竞争方法，分别达到了93.6%和53.1%的top-1准确率。

Audio. Table 4 shows our comparison with top-performing methods on the ESC50 dataset. We outperform competing methods, achieving an accuracy of 99.1% , significantly higher than the Audio Spec tr ogram Transformer (AST) at 85.7% , and OmniVec at 98.4%$ .

音频。表4展示了我们在ESC50数据集上与性能最佳方法的对比。我们的方法超越了其他竞争方法，准确率达到99.1%，显著高于音频频谱图Transformer (AST)的85.7%和OmniVec的$98.4%$。

Point Cloud. Table 5 and Table 6 compare against state of the art methods on ModelNet40-C and S3DIS datasets respectively. On ModelNet40-C, we evaluate a classification task, while on S3DIS we evaluate semantic segmentation. On both the datasets, we outperform the competing methods. On ModelNet-C, we achieve an error rate of 0.142, which is notably lower than the rates observed in other contemporary methods. This is particularly evident when compared against methods like OmniVec, which recorded an error rate of 0.156, and mathrm{PCT+PCM{mathrm{-}}R} , with an error rate of 0.163. On S3DIS, we achieve an mIoU of 77.1, which is the highest among all the methods evaluated c.f. 75.9 of OmniVec, and 74.5 of Swin3D. This demonstrates that the proposed method is able to obtain a robust performance with the shared backbone network across tasks.

点云。表5和表6分别在ModelNet40-C和S3DIS数据集上与现有最优方法进行了比较。在ModelNet40-C上，我们评估了分类任务，而在S3DIS上评估了语义分割。在这两个数据集上，我们的方法均优于其他竞争方法。在ModelNet-C上，我们实现了0.142的错误率，明显低于其他现有方法，如OmniVec记录的错误率为0.156，mathrm{PCT+PCM{mathrm{-}}R}的错误率为0.163。在S3DIS上，我们获得了77.1的mIoU，这是所有评估方法中最高的，相比之下OmniVec为75.9，Swin3D为74.5。这表明所提出的方法能够通过共享主干网络在不同任务中获得稳健的性能。

Text. Table 7 shows state of the art on Dialogue SUM dataset for text sum mari z ation. Our method surpasses other methods in all the metrics. Despite utilizing significantly fewer datasets for text in comparison to visual tasks , our method demonstrates strong performance. This suggests proposed method’s capacity to bridge the modality gap [48] across distinct domains in the latent space, even when the data distribution is skewed.

文本。表7展示了在Dialogue SUM数据集上文本摘要(state of the art)的最新成果。我们的方法在所有指标上都超越了其他方法。尽管与视觉任务相比，我们使用的文本数据集要少得多，但我们的方法仍表现出强大的性能。这表明所提出的方法能够在潜在空间中跨越不同领域弥合模态差距[48]，即使在数据分布偏斜的情况下也是如此。

Table 9 illustrates the experimental results on the GLUE benchmark for text understanding tasks, comparing various state-of-the-art methods such as BERT [13], RoBERTa [52], and ChatGPT. The comparison centers on paraphrasing, sentiment, duplication, inference, and answering tasks. We achieve second best performance on three out of five tasks demonstrating its capability to perform reasoning and adaptability to natural language tasks.

表 9: 展示了文本理解任务在GLUE基准上的实验结果，对比了BERT [13]、RoBERTa [52]和ChatGPT等前沿方法。该比较聚焦于复述、情感分析、重复检测、推理和问答任务。我们在五项任务中的三项上取得了第二名的性能，证明了其推理能力和对自然语言任务的适应性。

Dataset	Modality	Task	Metric	Ours	SOTA	Ref.
UCF-101	Video	ActionRecognition	3-FoldAccuracy	99.1	99.6	OmniVec[68]
HMDB51	Video	Action Recognition	3-FoldAccuracy	92.1	91.6	OmniVec[68]
Oxford-IlITPets	Image	Finegrained classification	Top-1Accuracy	99.6	99.2	OmniVec[68]
ScanObjectNN	3DPointCloud	Classification	Accuracy	97.2	96.1	OmniVec[68]
NYUV2	RGBD	SemanticSegmentation	MeanIoU	63.6	60.8	OmniVec[68]
SamSum	Text	MeetingSummarization	ROGUE(R-L)	55.4	54.6	OmniVec[68]
YouCook2	Video+Text	ZeroShotText-to-VideoRetrieval	Recall@10	69.9	64.2(Pre)/70.8(FT)	OmniVec[68]
MSR-VTT	Video+Text	ZeroShotText-to-Videoretrieval	Recall@10	85.8	80.0(Pre)/90.8(FT)	SM [96]

Table 8. Adaptation on unseen datasets. (Oxford-IIIT Pets, UCF-101, HMDB51, S can Object NN, NYUv2 Seg, SamSum), and crossdomain generalization (YouCook2, MSR-VTT). See supplementary for more detailed results.

数据集	模态	任务	指标	本文方法	当前最优 (SOTA)	参考文献
UCF-101	视频	动作识别	三折准确率	99.1	99.6	OmniVec[68]
HMDB51	视频	动作识别	三折准确率	92.1	91.6	OmniVec[68]
Oxford-IIIT Pets	图像	细粒度分类	Top-1准确率	99.6	99.2	OmniVec[68]
ScanObjectNN	3D点云	分类	准确率	97.2	96.1	OmniVec[68]
NYUV2	RGBD	语义分割	平均交并比 (Mean IoU)	63.6	60.8	OmniVec[68]
SamSum	文本	会议摘要	ROGUE(R-L)	55.4	54.6	OmniVec[68]
YouCook2	视频+文本	零样本文本到视频检索	召回率@10	69.9	64.2(预训练)/70.8(微调)	OmniVec[68]
MSR-VTT	视频+文本	零样本文本到视频检索	召回率@10	85.8	80.0(预训练)/90.8(微调)	SM[96]

表 8: 未见数据集上的适应性能 (Oxford-IIIT Pets、UCF-101、HMDB51、ScanObjectNN、NYUv2 Seg、SamSum) 和跨领域泛化能力 (YouCook2、MSR-VTT)。更多细节结果参见补充材料。

Table 9. Text understanding on the GLUE benchmark. We compare existing advanced methods from paraphrasing, sentiment, duplication, inference, and answering tasks.

Method	GLUEBenchmark
	SST-2 Sentiment	MRPC Paraphrase	QQP Duplication	MNLI Inference	QNLI Answering
BiLSTM+ELMo+Attn	90.4	84.9	64.8	76.4	79.8
OpenAI GPT [61]	91.3	82.3	70.3	82.1	87.4
BERTBASE [13]	88.0	88.9	71.2	84.6	90.5
RoBERTaBAsE [52]	96.0	90.0	84.0	84.0	92.0
ChatGPT	92.0	66.0	78.0	89.3	84.0
Meta-Transformer-B16r[16]	81.3	81.8	78.0	70.0	60.3
Ours	95.6	85.8	82.2	87.9	84.2

表 9: GLUE基准测试中的文本理解性能对比。我们比较了现有在复述、情感、重复、推理和问答任务中的先进方法。

方法	GLUE基准测试
	SST-2情感
BiLSTM+ELMo+Attn	90.4
OpenAI GPT [61]	91.3
BERTBASE [13]	88.0
RoBERTaBAsE [52]	96.0
ChatGPT	92.0
Meta-Transformer-B16r[16]	81.3
Ours	95.6

Comparison on pre training datasets. We fine tune our pretrained network on the respective training sets with related task heads. We obtain an mAP of 55.8 and 56.4 on AudioSet(A) and AudioSet left(mathrm{A}+mathrm{V}right) respectively. Further, on SSv2, ImageNet-1K, SUN-RGBD, and ModelNet we achieve top-1 accuracies of 86.1% , 93.6% , 75.9% and 97.1% respectively. We outperform the competing state of the art methods on these datasets(detailed results are in supplementary).

预训练数据集对比。我们在各自训练集上使用相关任务头对预训练网络进行微调，在AudioSet(A)和AudioSet left(mathrm{A}+mathrm{V}right) 上分别获得55.8和56.4的mAP。此外，在SSv2、ImageNet-1K、SUN-RGBD和ModelNet上，我们分别取得了 86.1% 、 93.6% 、 75.9% 和 97.1% 的top-1准确率。我们在这些数据集上超越了当前最先进方法（完整结果见补充材料）。

4.2. Adaptation on unseen datasets

4.2. 在未见数据集上的适应

In Table 8 (rows 1-6), we observe that our method performs close to SoTA on all the datasets. Specifically, except on UCF-101, we outperform the SoTA (OmniVec) on all the datasets. We observe that on NYUv2, we obtain a performance improvement of 3% , while on an average perform better by approx 1% on other datasets. It must be noted that we freeze the base embeddings, and unlike other methods do not fine tune the full network, and use simpler task head for analysis on these datasets.

在表8 (第1-6行) 中，我们观察到我们的方法在所有数据集上的表现都接近SoTA (State of the Art) 。具体而言，除了UCF-101数据集外，我们在所有数据集上都优于当前最优方法 (OmniVec) 。在NYUv2数据集上，我们获得了3%的性能提升，而在其他数据集上平均表现优于约1%。值得注意的是，我们冻结了基础嵌入层，与其他方法不同，没有对整个网络进行微调，并且在这些数据集上使用了更简单的任务头进行分析。

4.3. Cross domain generalization

4.3. 跨领域泛化

Table 8 (rows 7,8) demonstrates results using our pretrained network on various tasks. On the YouCook2 dataset, our pretrained network surpasses the state of the art in zeroshot retrieval, achieving a Recall @10 of 69.9% compared to OmniVec’s 64.2% on pretrained network. Interestingly, we are very close to the full fine tuned OmniVec i.e. 70.8. This demonstrates that our method is able to leverage the cross domain information better potentially due to multi task pretraining while OmniVec sequentially trains on one modality at a time. On MSR-VTT, when compared with SM [96], our fine-tuned method has a Recall @10 of 89.4% cf. SM’s 80.0% (pretrained). It must be noted that SM uses internetscale data while our method utilizes significantly less data.

表 8 (第7、8行)展示了我们预训练网络在多项任务上的表现。在YouCook2数据集上，我们的预训练网络在零样本检索任务中超越了现有最佳水平，Recall@10达到69.9%，优于OmniVec预训练网络的64.2%。值得注意的是，我们的结果非常接近OmniVec经过完整微调后的性能(70.8)。这表明我们的方法能更好地利用跨领域信息，这可能是由于多任务预训练的优势，而OmniVec采用的是逐模态顺序训练。在MSR-VTT数据集上，与SM[96]相比，我们微调后的方法Recall@10达到89.4%，而SM预训练模型为80.0%。需要特别说明的是，SM使用了互联网规模的数据，而我们的方法所需数据量显著减少。

4.4. Adaptation on Unseen Modalities

4.4. 未知模态的适配

Infrared, Hyper spectral, and X-Ray data. Table 10a presents the performance comparison on the RegDB dataset [54] for infrared image recognition. Our method achieves state of the art performance i.e. mathbf{R} @1 of 86.21 c.f. 83.86 of MSCLNet, and mAP of 84.24 c.f. 78.57 of SMCL. This demonstrates that our method can transfer knowledge across unseen modalities. Specifically, we significantly outperform Meta-Transformer, which pretrains on similar modalities as ours. This could be potentially due to separate tokenizers for each modality allowing better integration with the transformer encoder as compared to a common tokenizer in meta-transformer.

红外、高光谱和X射线数据。表10a展示了在RegDB数据集[54]上进行红外图像识别的性能对比。我们的方法实现了最先进的性能，即mathbf{R} @1达到86.21（对比MSCLNet的83.86），mAP达到84.24（对比SMCL的78.57）。这表明我们的方法能够在未见过的模态间迁移知识。具体而言，我们显著优于Meta-Transformer，尽管后者采用了与我们相似的预训练模态。这可能是由于我们为每种模态使用独立的tokenizer，相比Meta-Transformer的共用tokenizer，能更好地与Transformer编码器集成。

In addition, Table 10b presents the performance on the Indian Pine dataset for hyper spectral image recognition. We achieve an overall accuracy of 90.6% , which is better than the Spectral Former (81.76%) and significantly better than Meta-Transformer (67.6%) . For X-Ray images (table in supplementary), our method achieves an accuracy of 98.1% , significantly outperforming competing methods.

此外，表 10b 展示了高光谱图像识别在 Indian Pine 数据集上的性能。我们的方法达到了 90.6% 的整体准确率，优于 Spectral Former (81.76%) ，并显著优于 Meta-Transformer (67.6%) 。对于 X 射线图像(补充材料中的表格)，我们的方法达到了 98.1% 的准确率，显著优于其他竞争方法。

Graph and IMU Data. We show results in Table 11. We achieve performance close to the state of the art methods i.e. validate MAE of 0.1397 c.f. 0.1234 of Graphormer. It is important to note that our method was not designed for graphical data, while competing methods are designed to exploit graphical data. Meta-Transformer, which is a unified learning mechanism like ours, significantly lies behind with 0.8863 MAE cf. 0.1397 of ours.

图表与IMU数据。我们在表11中展示了结果。我们的性能接近最先进方法，即验证MAE为0.1397（对比Graphormer的0.1234）。值得注意的是，我们的方法并非为图形数据设计，而竞争方法专门用于利用图形数据。与我们类似的统一学习机制Meta-Transformer表现显著落后，其MAE为0.8863（对比我们的0.1397）。

Time series forecasting. We achieve an MSE of 0.399,

时间序列预测。我们实现了0.399的均方误差(MSE)。

Table 10. Infrared and hyper spectral classification. Metrics are Rank-1 (mathrm{R}@1) , mean Average Precision (mAP), Overall Accuracy (OA), Average Accuracy (AA).

Method	R@1(%)	mAP(%)
AGW[91]	70.49	65.90
SMCL[80] MSCLNet[99]	83.05 83.86	78.57 78.31
Meta-Transformer-B16r[16]	73.50	65.19
Ours	86.21	84.24

(a) SYSU-MM01 (infrared) (b) Indian Pine (hyper spectral)

表 10: 红外与高光谱分类。评估指标为 Rank-1 (mathrm{R}@1)、平均精度均值 (mAP)、总体准确率 (OA)、平均准确率 (AA)。

方法	R@1(%)	mAP(%)
AGW[91]	70.49	65.90
SMCL[80] MSCLNet[99]	83.05 83.86	78.57 78.31
Meta-Transformer-B16r[16]	73.50	65.19
Ours	86.21	84.24

(a) SYSU-MM01 (红外) (b) Indian Pine (高光谱)

Table 11. Graph data understanding . MAE on PCQM4M-LSC dataset.

Method	OA(%)	AA(%)
ViT [14] SpectralFormer[31](Pixel) SpectralFormer[31](Patch) RPNet-RF[73] HyLITE[102] TC-GAN[6]	71.86 78.55 81.76 90.23 89.80	78.97 84.68 87.81
Meta-Transformer-B16r[16] Ours	67.62 90.6	78.09 89.3

表 11: 图数据理解。PCQM4M-LSC数据集上的MAE。

方法	OA(%)	AA(%)
ViT [14] SpectralFormer31 SpectralFormer31 RPNet-RF[73] HyLITE[102] TC-GAN[6]	71.86 78.55 81.76 90.23 89.80	78.97 84.68 87.81
Meta-Transformer-B16r[16] Ours	67.62 90.6	78.09 89.3

Method	train val MAE MAE
Graph Transformer[15] GraphTransformer-wide [15] GraphormersMALL[92] Graphormer[92]	0.0944 0.1400 0.0955 0.1408 0.0778 0.1264 0.0582 0.1234
Meta-Transformer-B16F[16] Ours	0.8034 0.8863 0.0594 0.1397

方法	训练集MAE	验证集MAE
Graph Transformer[15]	0.0944	0.1400
GraphTransformer-wide[15]	0.0955	0.1408
GraphormersMALL[92]	0.0778	0.1264
Graphormer[92]	0.0582	0.1234
Meta-Transformer-B16F[16]	0.8034	0.8863
我们的方法	0.0594	0.1397

0.601, 0.210, 0.330 on ETTh1, Traffic, Weather and Exchange datasets respectively, outperforming all the competing methods such as Pyraformer [51], Informer [103], LogTrans [47], Meta-former [94] and Reformer [40]. The detailed results are in supplementary.

在ETTh1、Traffic、Weather和Exchange数据集上分别达到0.601、0.210、0.330，性能优于Pyraformer [51]、Informer [103]、LogTrans [47]、Meta-former [94]和Reformer [40]等所有对比方法。详细结果见补充材料。

Tabular Data. We achieve an accuracy of 88.1 and 92.3 on Adult and Bank Marketing datasets respectively, outperforming the competing methods (details in supplementary). Our method has never seen tabular data or structured textual information demonstrating its generalization ability to adapt to unseen patterns within data while providing better performance than competing methods.

表格数据。我们在Adult和Bank Marketing数据集上分别达到了88.1和92.3的准确率，优于其他竞争方法（详见补充材料）。我们的方法从未接触过表格数据或结构化文本信息，这证明了其在适应数据中未见模式方面的泛化能力，同时提供了优于竞争方法的性能。

4.5. Ablations

4.5. 消融实验

We study the impact of various components of the network in Table 12 on image (i Naturalist), video (Kinetics400) and audio (ESC50) modalities. Specifically, we study the impact of pre training with a single modality only, using the full pre training mechanism, and then fine tuning on the respective training set. We also study the impact of modality specific tokenizers compared to unified tokenizers of MetaFormer [94], and impact of utilizing multiple task heads as compared to unified task head design of Uni Perceive r-v2 [45]. For unimodal pre training (Table 12- row 1), we train the network on a single modality following Step 1 of Masked pre training (see Sec. 3.2). We use corresponding modality for each dataset i.e. for i Naturalist, we pretrain on ImageNet1K, for K400, we pretrain on SSv2 and for ESC50, we pretrain on AudioSet. For multimodal multitask pre training (Table 12-row 2), we pretrain using the full pre training discussed previously. For fine tuning, we utilize the respective train sets.

我们在表12中研究了网络各组件对图像(i Naturalist)、视频(Kinetics400)和音频(ESC50)模态的影响。具体而言，我们研究了仅使用单一模态进行预训练的影响(采用完整预训练机制，然后在各自训练集上进行微调)，比较了MetaFormer[94]统一分词器与模态专用分词器的影响，以及对比了Uni Perceive r-v2[45]统一任务头设计与多任务头设计的影响。对于单模态预训练(表12第1行)，我们按照掩码预训练步骤1(见3.2节)在单一模态上训练网络：i Naturalist使用ImageNet1K预训练，K400使用SSv2预训练，ESC50使用AudioSet预训练。对于多模态多任务预训练(表12第2行)，我们采用前述完整预训练方案。微调阶段均使用各自对应的训练集。

Impact of unimodal vs. multimodal pre training We can observe that multimodal multitask pre training using our approach (row 5) provides a significant improvement in comparison to unimodal pre training (row 1). Specifically, it outperforms unimodal pre training by sim16% on i Naturalist and K400 datasets while is better by sim8% on ESC50. This demonstrates that the network is able to leverage the information from multiple modalities.

单模态与多模态预训练的影响
我们可以观察到，采用我们的方法进行多模态多任务预训练（第5行）相比单模态预训练（第1行）有显著提升。具体而言，在iNaturalist和K400数据集上表现优于单模态预训练约16%，在ESC50上则高出约8%。这表明网络能够有效利用来自多模态的信息。

Table 12. Ablation experiments. We vary the different components of the network to study the impact (Sec 4.5). Metric reported is top-1 accuracy.

Modality	Tokenizer	TaskHead	iN2018	K400	ESC50
Single	Modality	Autoencoder	74.2	78.6	82.4
Single	Unified[16]	Autoencoder	74.1	78.3	82.1
Multiple	Unified[16]	Unified[45]	80.1	81.8	82.7
Multiple	Modality	Unified[45]	85.4	84.8	86.8
Multiple	Unified[16]	Task specific	86.1	85.2	87.0
Multiple	Modality	Task specific	90.3	88.4	92.4

表 12: 消融实验。我们调整网络的不同组件以研究其影响 (第4.5节)。报告的指标为top-1准确率。

模态	Tokenizer	TaskHead	iN2018	K400	ESC50
单模态	模态专用	自动编码器	74.2	78.6	82.4
单模态	统一[16]	自动编码器	74.1	78.3	82.1
多模态	统一[16]	统一[45]	80.1	81.8	82.7
多模态	模态专用	统一[45]	85.4	84.8	86.8
多模态	统一[16]	任务专用	86.1	85.2	87.0
多模态	模态专用	任务专用	90.3	88.4	92.4

Impact of modality specific tokenizer vs. unified tokenizer. We observe that the performance of unified tokenizer (row 3) lags behind that of a modality specific tokenizer (row 4) by an average of sim5% across all the tasks, while keeping unified heads. Similarly, while keeping task specific heads, and modality specific tokenizer (row 6) vs unified tokenizer (row 5), we observe an average performance gap of $4%$ in favour of modality specific tokenizer.

模态特定分词器与统一分词器的影响。我们观察到，在保持统一头部的情况下，统一分词器（第3行）在所有任务中的表现平均落后于模态特定分词器（第4行）约 sim5%。类似地，在保持任务特定头部的情况下，模态特定分词器（第6行）相比统一分词器（第5行）平均有 $4%$ 的性能优势。

Multiple task heads vs unified task head. Comparing row 4 and row 6, we see that the the task specific heads contribute to an increase (average $3.5%$ ) in performance while keeping a modality specific tokenizer.

多任务头与统一任务头的对比。比较第4行和第6行可见，在保持模态特定分词器的前提下，采用任务专用头可使性能平均提升3.5%。

5. Conclusion

5. 结论

We presented a novel multimodal multitask network and associated training algorithm. The proposed method utilizes modality specific tokenizers and then uses shared transformers based backbone feeding to task specific heads. The traning proceeds in three stages, (i) masked pre training with one modality at a time, (ii) masked pre training with pairs of modalities together, and (iii) supervised traning for tasks with pairs of modalities together. The pairwise pre training and supervised training allows for knowledge sharing between tasks and modalities and leads to a robust and regularized network. We showed empirical results on 25 challenging benchmark datasets over 12 modalities obtaining better or close to existing state of the art results. The method can incorporate arbitrary number of modalities, with only the tokenizer and task heads being modality specific.

我们提出了一种新颖的多模态多任务网络及配套训练算法。该方法先使用模态专用分词器 (tokenizer)，再通过基于共享Transformer的主干网络将特征馈送至任务专用头部。训练过程分为三个阶段：(i) 单模态掩码预训练，(ii) 双模态联合掩码预训练，(iii) 双模态联合监督训练。这种成对预训练和监督训练机制实现了跨任务与跨模态的知识共享，最终形成具备强鲁棒性和正则化特性的网络。我们在涵盖12种模态的25个高难度基准数据集上取得优于或接近现有最优水平的实证结果。该方法可扩展至任意数量模态，仅需针对不同模态调整分词器和任务头部。

References [1] Hassan Akbari, Liangzhe Yuan, Rui Qian, Wei-Hong Chuang, Shih-Fu Chang, Yin Cui, and Boqing Gong. Vatt: Transformers for multimodal self-supervised learning from raw video, audio and text. Advances in Neural Information Processing Systems, 34:24206–24221, 2021. 1, 2, 4, 5, 6 [2] Relja Ar and j elo vic and Andrew Zisserman. Objects that sound. In Proceedings of the European conference on computer vision (ECCV), pages 435–451, 2018. 2 [3] Iro Armeni, Ozan Sener, Amir R Zamir, Helen Jiang, Ioan- nis Brilakis, Martin Fischer, and Silvio Savarese. 3d semantic parsing of large-scale indoor spaces. In Proceedings of the IEEE conference on computer vision and pattern recognition, pages 1534–1543, 2016. 5 [4] Alan Baade, Puyuan Peng, and David Harwath. Maeast: Masked auto encoding audio spec tr ogram transformer. arXiv preprint arXiv:2203.16691, 2022. 2 [5] Alexei Baevski, Wei-Ning Hsu, Qiantong Xu, Arun Babu, Jiatao Gu, and Michael Auli. Data2vec: A general framework for self-supervised learning in speech, vision and language. In International Conference on Machine Learning, pages 1298–1312. PMLR, 2022. 1, 2 [6] Jing Bai, Jiawei Lu, Zhu Xiao, Zheng Chen, and Licheng Jiao. Generative adversarial networks based on transformer encoder and convolution block for hyper spectral image classification. Remote Sensing, 14(14):3426, 2022. 8 [7] Joao Carreira, Skanda Koppula, Daniel Zoran, Adria Recasens, Catalin Ionescu, Olivier Henaff, Evan Shelhamer, Relja Ar and j elo vic, Matt Botvinick, Oriol Vinyals, et al. Hierarchical perceiver. arXiv preprint arXiv:2202.10890, 2022. 2 [8] Ke Chen, Xingjian Du, Bilei Zhu, Zejun Ma, Taylor BergKirkpatrick, and Shlomo Dubnov. Hts-at: A hierarchical token-semantic audio transformer for sound classification and detection. In ICASSP 2022-2022 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), pages 646–650. IEEE, 2022. 6 [9] Yulong Chen, Yang Liu, Liang Chen, and Yue Zhang. Dialogsum: A real-life scenario dialogue sum mari z ation dataset. arXiv preprint arXiv:2105.06762, 2021. 5 [10] Michael Crawshaw. Multi-task learning with deep neural networks: A survey. arXiv preprint arXiv:2009.09796, 2020. 1 [11] Yong Dai, Duyu Tang, Liangxin Liu, Minghuan Tan, Cong Zhou, Jingquan Wang, Zhangyin Feng, Fan Zhang, Xueyu Hu, and Shuming Shi. One model, multiple modalities: A sparsely activated approach for text, sound, image, video and code. arXiv preprint arXiv:2205.06126, 2022. 2 [12] Jia Deng, Wei Dong, Richard Socher, Li-Jia Li, Kai Li, and Li Fei-Fei. Imagenet: A large-scale hierarchical image database. In 2009 IEEE conference on computer vision and pattern recognition, pages 248–255. Ieee, 2009. 5, 6 [13] Jacob Devlin, Ming-Wei Chang, Kenton Lee, and Kristina Toutanova. Bert: Pre-training of deep bidirectional transformers for language understanding. arXiv preprint arXiv:1810.04805, 2018. 3, 5, 7

参考文献
[1] Hassan Akbari, Liangzhe Yuan, Rui Qian, Wei-Hong Chuang, Shih-Fu Chang, Yin Cui, 和 Boqing Gong. Vatt: 基于原始视频、音频和文本的多模态自监督学习Transformer. 《神经信息处理系统进展》, 34:24206–24221, 2021. 1, 2, 4, 5, 6
[2] Relja Arandjelovic 和 Andrew Zisserman. 发声物体. 《欧洲计算机视觉会议论文集》(ECCV), 页435–451, 2018. 2
[3] Iro Armeni, Ozan Sener, Amir R Zamir, Helen Jiang, Ioannis Brilakis, Martin Fischer, 和 Silvio Savarese. 大规模室内空间的3D语义解析. 《IEEE计算机视觉与模式识别会议论文集》, 页1534–1543, 2016. 5
[4] Alan Baade, Puyuan Peng, 和 David Harwath. MAEAST: 掩码自编码音频频谱Transformer. arXiv预印本 arXiv:2203.16691, 2022. 2
[5] Alexei Baevski, Wei-Ning Hsu, Qiantong Xu, Arun Babu, Jiatao Gu, 和 Michael Auli. Data2vec: 语音、视觉与语言的通用自监督学习框架. 《国际机器学习会议》, 页1298–1312. PMLR, 2022. 1, 2
[6] Jing Bai, Jiawei Lu, Zhu Xiao, Zheng Chen, 和 Licheng Jiao. 基于Transformer编码器与卷积块的高光谱图像分类生成对抗网络. 《遥感》, 14(14):3426, 2022. 8
[7] Joao Carreira, Skanda Koppula, Daniel Zoran, Adria Recasens, Catalin Ionescu, Olivier Henaff, Evan Shelhamer, Relja Arandjelovic, Matt Botvinick, Oriol Vinyals, 等. 分层感知器. arXiv预印本 arXiv:2202.10890, 2022. 2
[8] Ke Chen, Xingjian Du, Bilei Zhu, Zejun Ma, Taylor Berg-Kirkpatrick, 和 Shlomo Dubnov. HTS-AT: 面向声音分类与检测的分层Token语义音频Transformer. 《ICASSP 2022 IEEE声学、语音与信号处理国际会议》, 页646–650. IEEE, 2022. 6
[9] Yulong Chen, Yang Liu, Liang Chen, 和 Yue Zhang. DialogSum: 真实场景对话摘要数据集. arXiv预印本 arXiv:2105.06762, 2021. 5
[10] Michael Crawshaw. 深度神经网络的多任务学习综述. arXiv预印本 arXiv:2009.09796, 2020. 1
[11] Yong Dai, Duyu Tang, Liangxin Liu, Minghuan Tan, Cong Zhou, Jingquan Wang, Zhangyin Feng, Fan Zhang, Xueyu Hu, 和 Shuming Shi. 一模型多模态: 面向文本、声音、图像、视频与代码的稀疏激活方法. arXiv预印本 arXiv:2205.06126, 2022. 2
[12] Jia Deng, Wei Dong, Richard Socher, Li-Jia Li, Kai Li, 和 Li Fei-Fei. ImageNet: 大规模分层图像数据库. 《2009 IEEE计算机视觉与模式识别会议》, 页248–255. IEEE, 2009. 5, 6
[13] Jacob Devlin, Ming-Wei Chang, Kenton Lee, 和 Kristina Toutanova. BERT: 面向语言理解的深度双向Transformer预训练. arXiv预印本 arXiv:1810.04805, 2018. 3, 5, 7

toine Miech, Lucas Smaira, Ross Hemsley, et al. Zorro: the masked multimodal transformer. arXiv preprint arXiv:2301.09595, 2023. 1, 2

toine Miech, Lucas Smaira, Ross Hemsley 等. Zorro: 掩码多模态Transformer. arXiv预印本 arXiv:2301.09595, 2023. 1, 2
